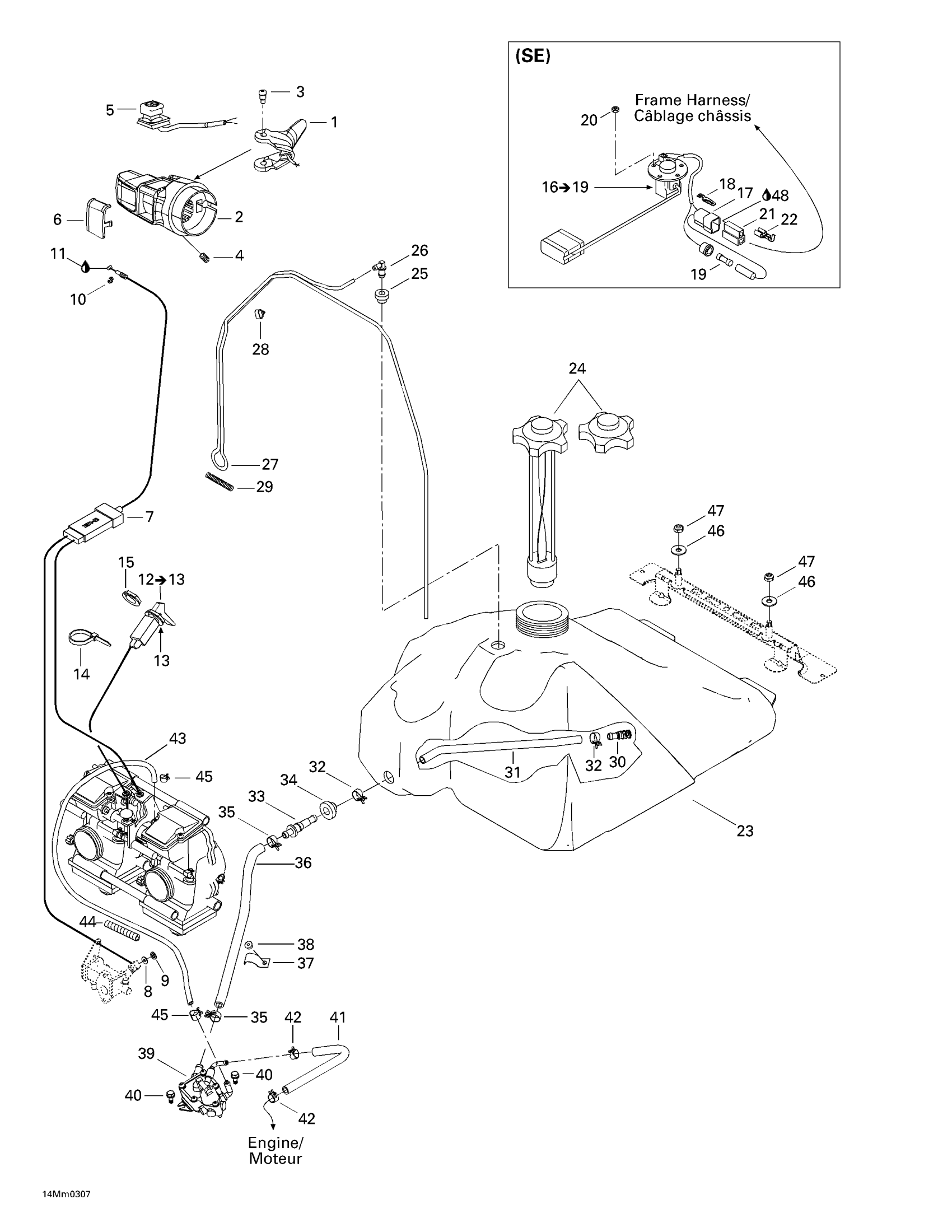

Ski-Doo Legend 500/600/700, 2003 02- Fuel System Diagram

#

Description
Price

1

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

2

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

3

Flange Screw

732601143

$4.12

4

Socket Set Screw M8 X 10

414440800

$4.12

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

6

Switch Cover

572100901

$14.83

7

THROTTLE CABLE - Call your local BRP dealership | SPORT

512059679

Unavailable

Throttle Cable | SE

512059680

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.39

9

Circlip

414753500

$0.71

10

Circlip

414274500

$0.90

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

Tie-Rap 173 mm

293750009

$1.04

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

515175170

Unavailable

17

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

18

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

19

Fuse, 0.25 Ampere

410112400

Unavailable

20

Elastic Stop Nut M5

232551414

$0.87

21

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

22

Female Terminal

561503100

$2.41

23

Fuel Tank

513032987

Unavailable

Fuel Tank | SE

513032988

Unavailable

24

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Fuel Tank Cap

513033025

$24.49

25

Grommet

513032908

$10.49

26

Male Connector

414814100

$2.22

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

28

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

29

SPRING - Call your local BRP dealership

414818200

Unavailable

30

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

31

Hose

415005700

$11.58

32

Norma Spring Clamp

513033010

$9.69

33

Male Connector

414872700

$1.90

34

Grommet | Europe

707800347

$10.49

35

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

36

Formed Hose

513032903

$30.99

37

CLIP - Call your local BRP dealership

415018200

Unavailable

38

Pop Rivet 3/16"

293150103

$0.55

39

FUEL PUMP - Call your local BRP dealership

403901808

Unavailable

40

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

41

Hose

219704549

$50.99

42

Spring Clamp

414415200

$0.88

43

Formed Tube

513032986

Unavailable

44

Tubing 10 MM 1000MM Long

219704407

$2.79

45

Spring Clamp

414420700

$0.72

46

Flat Washer 8 mm

234082410

$1.47

47

Hex. Elastic Stop Nut M8

232581414

$0.56

48

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
