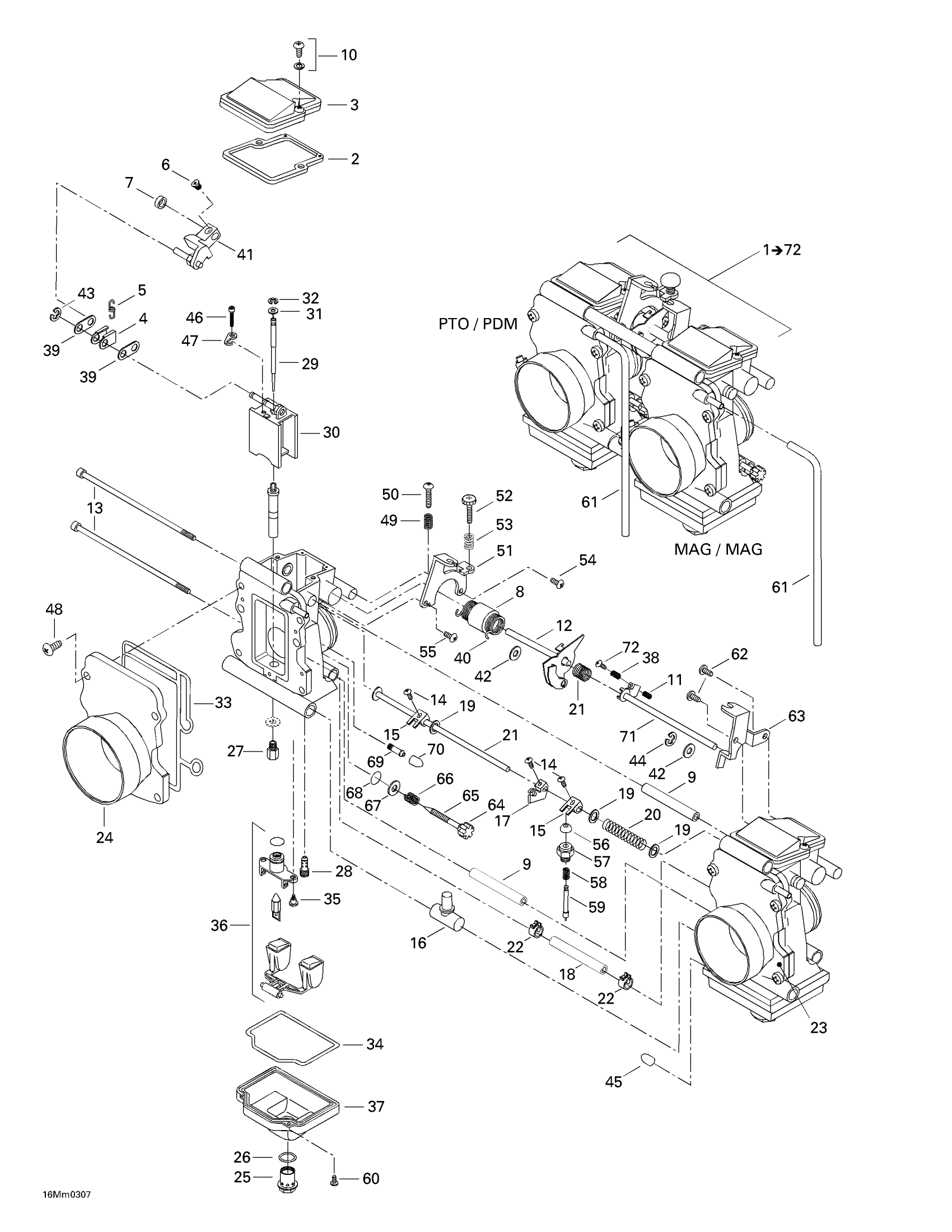

Ski-Doo Legend 500/600/700, 2003 02- Carburetors Diagram

#

Description
Price

1

Carburetor Kit Tm 40 B-229 | Grand Touring 500.

403138732

Unavailable

Carburetor Kit Tm 40 B-232 | 600

403138731

Unavailable

Carburetor Kit Tm 40 B-241 | 700

403138730

Unavailable

2

Gasket

404161940

$24.49

3

COVER - Call your local BRP dealership

404161939

$38.99

4

Holder

404162008

$17.08

5

Spring

404162010

$17.08

6

Screw

404161928

$12.70

7

Ring

404161926

$12.70

8

Ring

404161925

$12.70

9

RING - Call your local BRP dealership

404161924

Unavailable

10

Screw

404161923

$7.23

11

Spring

404135400

$8.89

12

Throttle Shaft

404162015

$207.49

13

Screw

404161911

$34.99

14

Screw

404161910

$12.70

15

Lever

404161909

$17.99

16

Nipple

404161905

$47.99

17

Starter Lever

404161901

$35.99

18

Hose | Grand Touring 500.

404161956

$19.49

19

Packing

404161894

$12.70

20

Spring

404103500

$8.47

21

Spring

404162011

$12.70

SHAFT - Call your local BRP dealership

404161981

Unavailable

22

Clip | Grand Touring 500.

404161957

$17.08

23

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

24

Funnel, PTO

404162018

Unavailable

Funnel, Mag

404162012

Unavailable

25

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

26

O-Ring

404161945

$9.06

27

Main Jet 500 | 600

404108200

$5.21

Main Jet 510N | 700

404161983

Unavailable

28

Pilot Jet 17.5

404161944

$5.21

Pilot Jet 20 | 600

404108600

$5.21

29

Needle J8-9Ghy01-58 | 600

404161980

Unavailable

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

404161953

Unavailable

30

Piston Valve 2.0

404162005

Unavailable

31

Packing

404137600

$6.38

32

E-Ring

404152200

$4.14

33

O-Ring

404161935

$24.49

34

O-Ring

404161961

$17.99

35

Screw

404161933

$11.18

36

Float

404161932

$122.49

37

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

38

Adjustment Spring

404135300

$11.60

39

Plate

404162007

$17.08

40

Spring

404162014

$31.99

41

Lever

404162009

$98.99

42

Packing

270500118

$8.89

43

E-Ring

404138300

$11.18

44

E-Ring

707200027

$5.21

45

Cap

270500095

$9.59

46

Screw

404161920

$12.70

47

Plate

404161919

$12.70

48

Screw

404138800

$6.06

49

Spring

404161918

$6.45

50

Screw

404161917

$12.70

51

Bracket Tm 40-98, PTO

404162013

Unavailable

52

Adjustment Screw

404137500

$19.49

53

Spring

404161913

$12.70

54

Screw

404161912

$6.38

55

Screw

404136100

$6.38

56

Cap

404140000

$11.18

57

Guide Holder

404136900

$16.49

58

Spring

404161908

$12.77

59

Plunger Ass'y

404161907

$31.99

60

Screw

404161906

$6.38

61

HOSE - Call your local BRP dealership

404161904

Unavailable

62

Screw

404161903

$3.08

63

Bracket, Mag

404161902

Unavailable

64

Cap

404161899

$12.18

65

Adjuster

404161898

$23.99

66

Spring

404161897

$5.95

67

Washer

404161896

$6.06

68

Packing

404161895

$9.06

69

Nipple

404153400

$12.16

70

CAP - Call your local BRP dealership

404154900

Unavailable

71

Throttle Shaft

404162006

$207.49

72

Screw

404136700

$14.22
