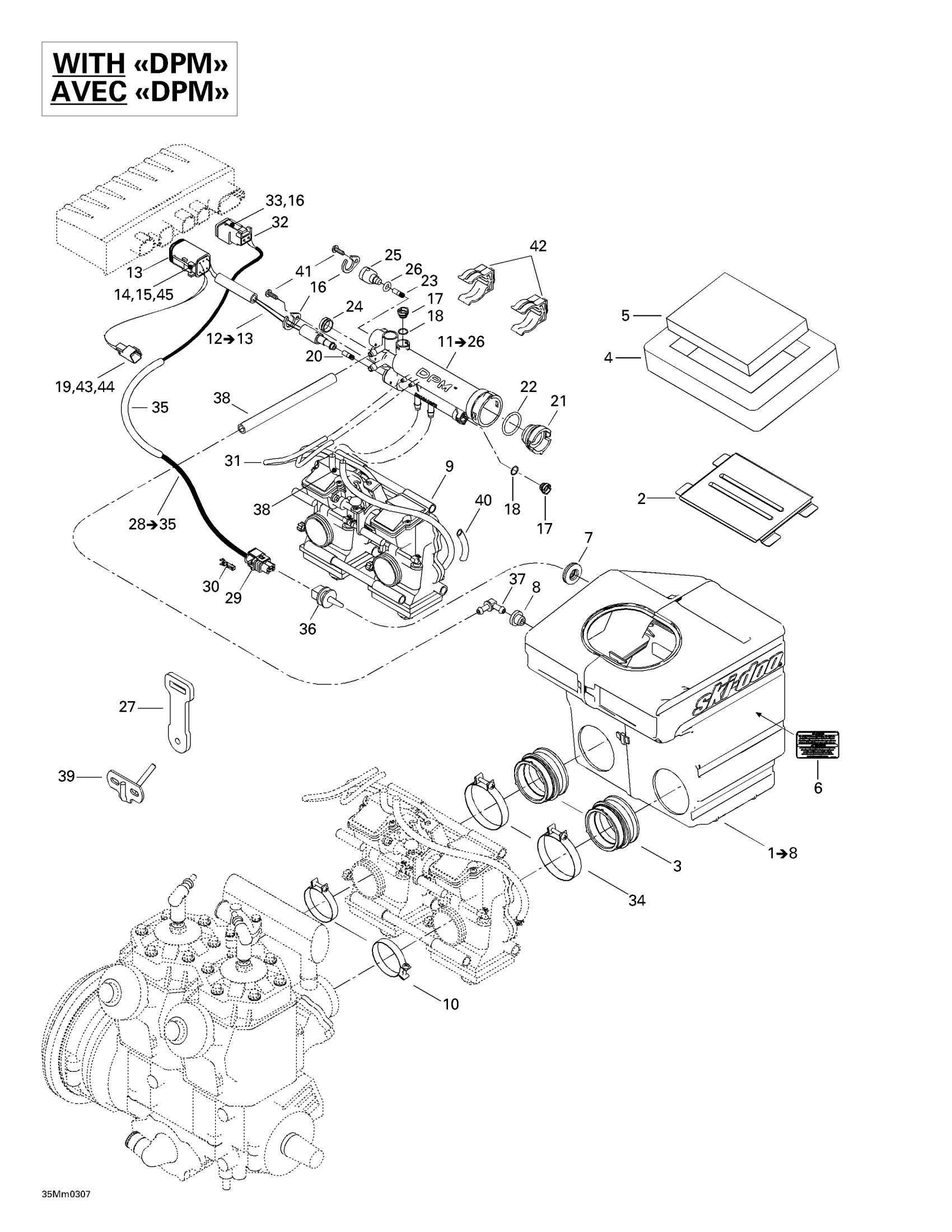

Ski-Doo Legend 500/600/700, 2003 02- Air Intake System 2 Diagram

#

Description
Price

1

Air Intake Ass’Y | Includes 1 - 8. DPM 600 Grand Touring 600.

508000290

Unavailable

Air Intake Ass’Y | DPM 700 Grand Touring 700.

508000293

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

GROMMET - Call your local BRP dealership

570065500

Unavailable

8

Grommet

513032908

$10.49

9

Carburetor Kit Tm 40 B-232 | 600

403138731

Unavailable

Carburetor Kit Tm 40 B-241 | 700

403138730

Unavailable

10

Gemi Clamp

512059835

$11.60

11

Pressure Manifold Ass’Y | Includes 50 - 63. Grand Touring 600.

512059774

Unavailable

Pressure Manifold Ass’Y | Grand Touring 700.

512059634

Unavailable

12

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

13

Male Housing, 6 Circuits

515175673

$15.49

14

Male Wedge, 6 Circuits

515175678

$5.39

15

Sealing Cap

293000052

$3.19

16

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

17

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

18

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

19

Male Terminal Housing, 2 Circuits

515175665

$9.29

20

STARTER JET - Call your local BRP dealership

404161825

Unavailable

21

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

22

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Cap | Grand Touring 600. Grand Touring 700.

512058982

Unavailable

25

Cap | Grand Touring 600. Grand Touring 700.

512059557

Unavailable

26

O-Ring | Grand Touring 600. Grand Touring 700.

512059558

Unavailable

27

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

28

Temperature Harness | Includes 40 to 47

515175703

Unavailable

29

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

30

Female Terminal

278000998

$4.39

31

Hose | Grand Touring 600. Grand Touring 700.

512059523

Unavailable

32

Female Terminal Housing, 2 Circuits

515175670

$8.39

33

Female Lock, 2 Circuits

515175706

Unavailable

34

Gemi Clamp

508000346

$10.33

35

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

36

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

37

Elbow Male Connector

414580600

$4.23

38

Polyurethane Hose 10000Mm Long

219704410

$56.99

39

Carburetor Bracket

512059504

Unavailable

40

Was 409901700 Tubing (9 mm)

219704399

$84.99

41

Screw K40 X 10

241140060

$1.48

42

SUPPORT - Call your local BRP dealership

512058919

Unavailable

43

Male Terminal

278000631

$4.39

44

Male Lock, 2 Circuits

409207500

$3.19

45

Female Terminal

278000632

$2.09
