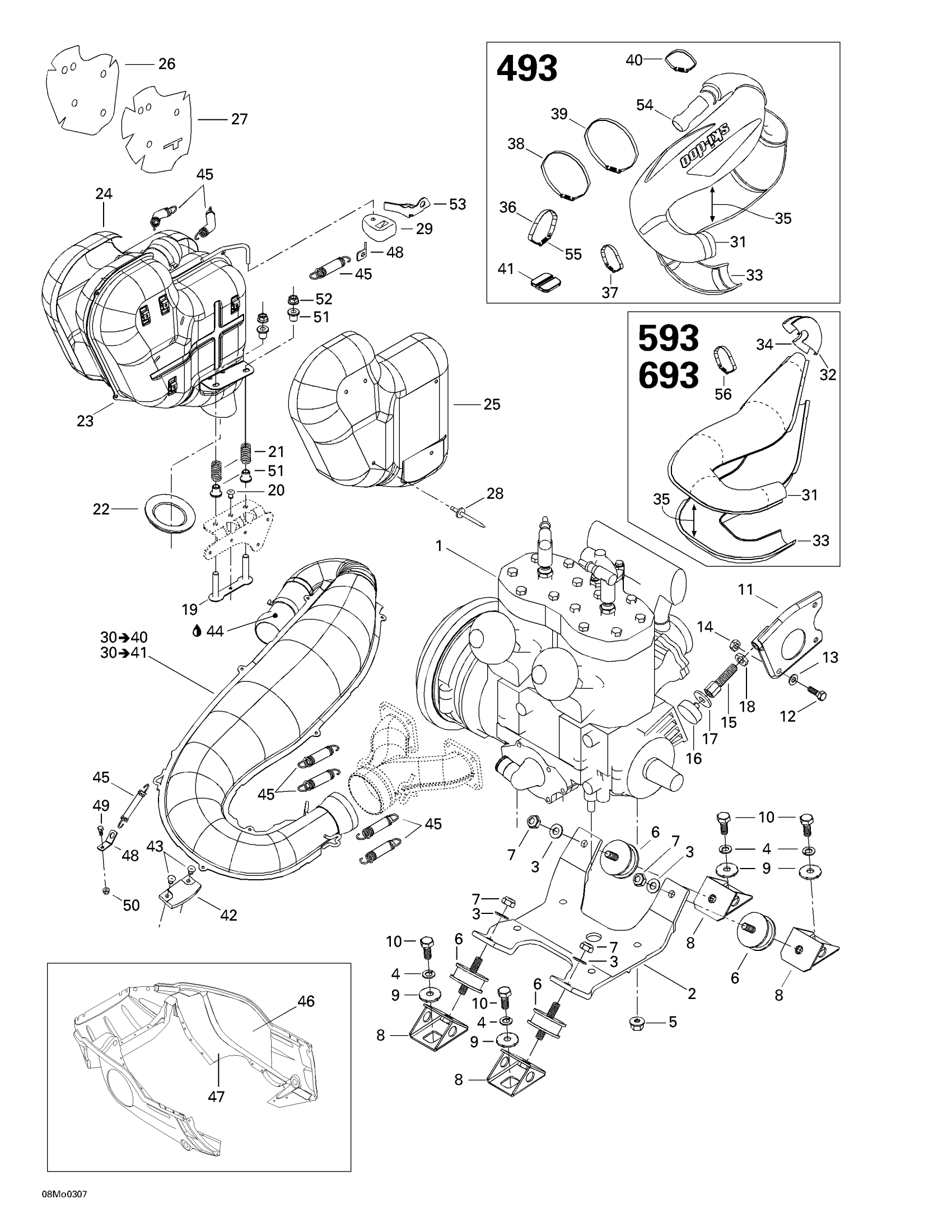

Ski-Doo Legend 500/600/700, 2003 01- Engine Support And Muffler Diagram

#

Description
Price

1

Engine 493 RER | Grand Touring 500.

400409430

Unavailable

Engine 593 RER | Grand Touring 600.

400509736

Unavailable

«693» Engine (Rer) | 700

400604026

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership

512059488

Unavailable

3

Flat Washer 10 mm

234001410

$1.26

4

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

Engine Support

512050900

Unavailable

9

Lock Washer

512056700

$3.17

10

Hex. Screw M10 X 25

207102544

$1.37

11

Support Plate

512058500

Unavailable

12

Hex. Screw M8 X 20

207182044

$0.74

13

Flat Washer 8 mm

234081410

$0.83

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Stopper

512059056

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Nut Hexagonal RH.

232026414

$1.48

19

Muffler Bracket

514053263

Unavailable

20

Pop Rivet 3/16"

390402200

$0.35

21

SPRING - Call your local BRP dealership

414913700

Unavailable

22

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Exhaust Grommet

514053064

Unavailable

23

Muffler | Legend 500. Legend 600.

514053325

Unavailable

Muffler | 700 / INCLUDES ITEMS 7 TO 12

514053537

Unavailable

24

RH Heat Shield | 600

514053160

Unavailable

RH Heat Shield | 700

514053606

Unavailable

25

LH Heat Shield | 600

514052733

Unavailable

LH HEAT SHIELD - Call your local BRP dealership | 700

514053516

Unavailable

26

RH Insulating Wool | 600

514052734

Unavailable

RH Insulating Wool | 700

514053294

Unavailable

27

LH Insulating Wool | 600

514052844

Unavailable

LH Wooll Insulating

514053295

Unavailable

28

Pop Rivet 3/16”

390910000

$0.57

29

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

30

Tuned Pipe Ass’Y | Includes 24 - 38. Grand Touring 500. Grand Touring 600.

514053488

Unavailable

30

Tuned Pipe Ass’Y | 600 / INCLUDES ITEMS 24 TO 37

514053495

Unavailable

30

Tuned Pipe Ass’Y | Grand Touring 500. .

514053676

Unavailable

31

Upper Enveloppe | Grand Touring 500.

514053167

Unavailable

Upper Enveloppe | 600

514053192

Unavailable

Upper Enveloppe

514053690

Unavailable

32

REAR UPPER ENVELOPE - Call your local BRP dealership | 600

514053193

Unavailable

REAR UPPER ENVELOPE - Call your local BRP dealership | 700

514053313

Unavailable

33

Lower Envelope | Grand Touring 500.

514053360

Unavailable

LOWER ENVELOPE - Call your local BRP dealership

514053367

Unavailable

Lower Envelope

514053691

Unavailable

34

REAR LOWER ENVELOPE - Call your local BRP dealership | 600

514053196

Unavailable

REAR LOWER ENVELOPE - Call your local BRP dealership | 700

514053314

Unavailable

35

Insulating Wool | Grand Touring 500.

514052716

Unavailable

INSULATING WOOL - Call your local BRP dealership | 600

514053285

Unavailable

Insulating Wool

514053696

Unavailable

36

Retaining Strap

514053499

$11.47

Retaining Strap

514053501

$9.27

37

RETAINING STRAP - Call your local BRP dealership

514053494

Unavailable

Retaining Strap

514053498

$11.47

38

Retaining Strap

514053502

$11.47

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

39

RETAINING STRAP - Call your local BRP dealership

514053540

Unavailable

40

RETAINING STRAP - Call your local BRP dealership

514053493

Unavailable

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

41

Rubber Pad | 600

514053180

Unavailable

42

Rubber Pad

570044100

Unavailable

43

Pop Rivet 3/16"

293150103

$0.55

44

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

45

Spring

415107100

$6.35

46

Reflective Sheet

514052718

Unavailable

47

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

48

Spring Bracket

514053436

$11.47

49

Hex. Screw M5 X 12

207151244

$0.90

50

Hex. Flange Elastic Nut M5

233251414

$1.04

51

GUIDE - Call your local BRP dealership

514053343

Unavailable

52

Lock Spring Nut M8

233481413

Unavailable

53

SUPPORT - Call your local BRP dealership

514053442

Unavailable

54

Calibration Tube | Legend 500.

514053489

Unavailable

55

Spring

514053643

$6.35

56

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

Retaining Strap

514053492

$13.10
