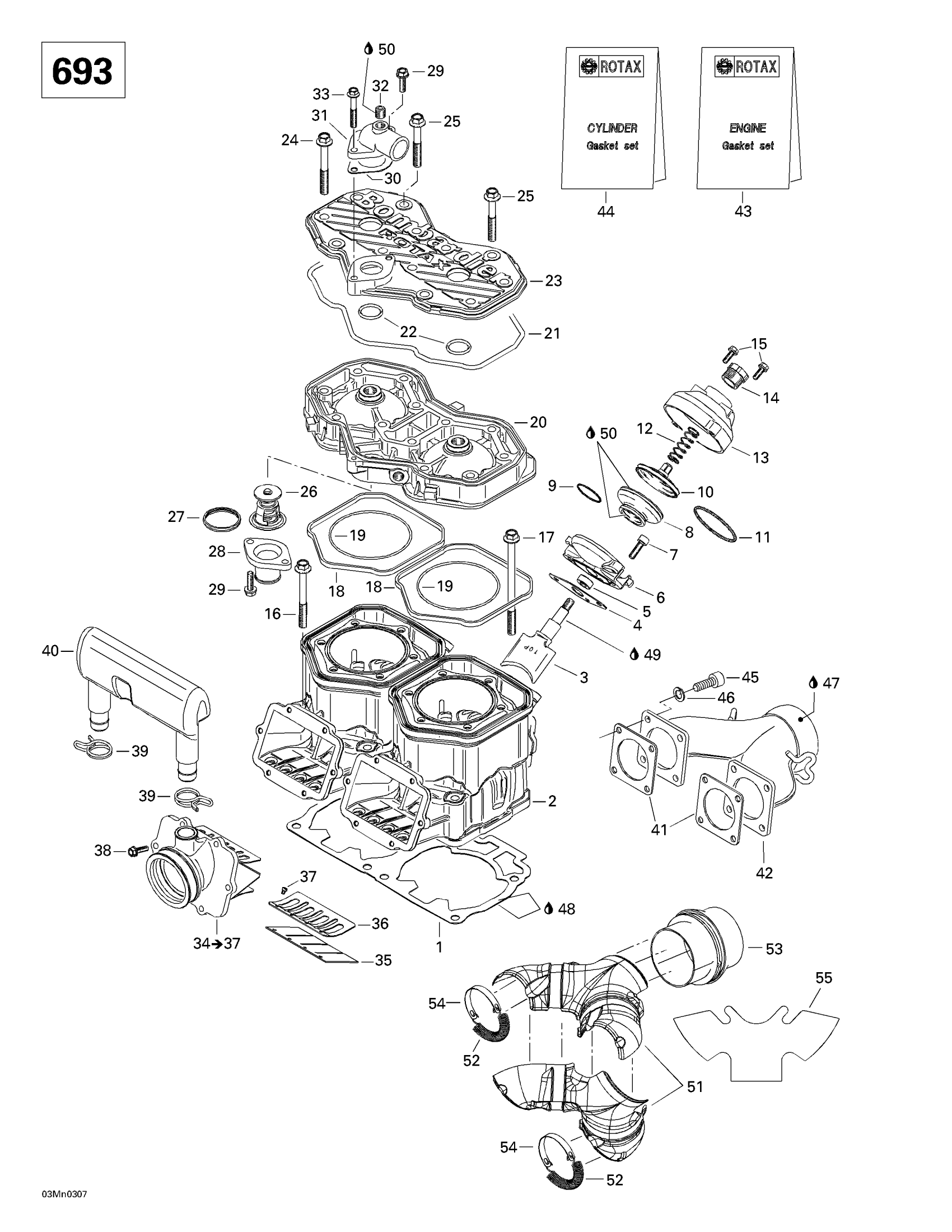

Ski-Doo Legend 500/600/700, 2003 Cylinder, Exhaust Manifold, Reed Valve (693) Diagram

#

Description
Price

1

Double Gasket 0.8 mm

420431163

$23.05

Gasket 0.7 mm

420431162

$23.05

Gasket 0.6 mm

420431161

$23.05

Gasket 0.5 mm

420431160

$16.89

2

Cylinder With Sleeve, Nicasil

420923695

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

4

Gasket

420250239

$6.62

5

Oil Seal | Included in gasket kit

420950732

$8.34

6

Valve Housing

420854266

$93.82

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

Spring This part replaces 420239944.

420239954

$7.31

13

Valve Cover

420911552

$37.66

14

Adjuster Screw

420241221

$12.52

15

Hex. Tapping Screw M5 X 20

420841555

$1.68

16

Hex. Collar Screw

420640524

$11.52

17

Hex. Collar Screw

420640534

$13.58

18

Rubber Ring

420931590

$5.69

19

O-RING - Call your local BRP dealership

420931840

$12.11

20

Cylinder Head, Silver

420613840

Unavailable

21

O-Ring This part replaces 290950320.

420950320

$11.48

22

O-Ring

420430782

$4.41

23

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

24

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

25

Hex. Screw M8 X 56.5

420941627

$8.34

26

Thermostat This part replaces 414834100.

420922519

$59.20

27

Sealing Ring

420931272

$15.35

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

29

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

30

Gasket

420850338

$10.28

31

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

32

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

33

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

34

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$248.43

35

Reed Pedal

420924680

$37.66

36

Reed Pedal Stop

420924695

$13.58

37

Phillips Screw M3 X 5

420941215

$1.42

38

Taptite Screw M5 X 16

420941928

Unavailable

39

CLAMP - Call your local BRP dealership

420851440

Unavailable

40

Intake Resonator

420867817

Unavailable

41

Gasket

420850552

$7.92

42

Exhaust Manifold | 700

420973593

Unavailable

43

Engine Gasket Set

420888604

Unavailable

44

Cylinder Gasket Set

420888608

Unavailable

45

Socket Head Screw M6 X 20

205062044

$1.07

46

Lock Washer M6, Black

234161471

$0.52

47

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

48

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

49

Molykote G-N, 50 g

420297433

$22.72

50

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

51

Enveloppe, Exhaust Manifold

514053593

Unavailable

52

Spring

514053643

$6.20

53

Exhaust Gasket

514053487

$26.12

54

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

55

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable
