Description

Price

1

Crankshaft Ass’Y | Includes 1 - 11. Grand Touring 500.

420888465

Unavailable

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

2

Ball Bearing

420832596

$97.49

3

Ball Bearing 6206

420832590

$48.49

4

Oil Seal

420931795

$17.63

5

Ball Bearing 6207 | With drive pin

420832575

$52.99

6

Ball Bearing Sealed, 6207

420832673

$101.49

7

Retaining Disk

420927710

$7.41

8

Oil Seal This part replaces 290831952.

420831952

$18.01

9

Woodruff Key

420246015

$3.17

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

Needle Bearing

420832320

$30.49

Needle Bearing

420832445

$27.49

13

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

14

Sealant Loctite 648

219703000

$45.99

15

Dow Corning 111, 150 g

413707000

$59.99

16

Piston Ass’y, 1 Ring 69.40 mm | Includes 16 - 17. Grand Touring 500.

420888445

Unavailable

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

OVERSIZE PISTON ASS?Y, 1 RING 69.65 MM - Call your local BRP dealership | Grand Touring 500.

420888446

Unavailable

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

17

SEMI-TRAPEZ RING 69.50 MM - Call your local BRP dealership | Grand Touring 500.

420815043

Unavailable

Semi-Trapez Ring, 1st

420815156

$51.99

Oversize Semi-Trapez Ring 69.75 mm | Grand Touring 500.

420815044

Unavailable

Semi-Trapez Ring, Standard

420815155

$51.99

18

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

Piston Pin

420916412

$30.99

19

Piston Circlip

420945735

$4.46

Piston Circlip

420845106

$3.93

20

Ball Bearing 6206

420832590

$48.49

21

Oil Seal | Included in gasket kit

420931940

$30.49

22

Central Gear, 15 Teeth

420834350

$104.99

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

Crankshaft This part replaces 420818693.

420818697

$255.49

25

Rod Repair Kit, Mag Side | Grand Touring 500.

420888463

Unavailable

Rod Repair Kit, MAG Side

420890973

$313.99

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership | Grand Touring 500.

420888464

Unavailable

Rod Repair Kit, PTO Side

420890974

$313.99

26

Loctite 243, 10 ml

293800060

$21.49

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

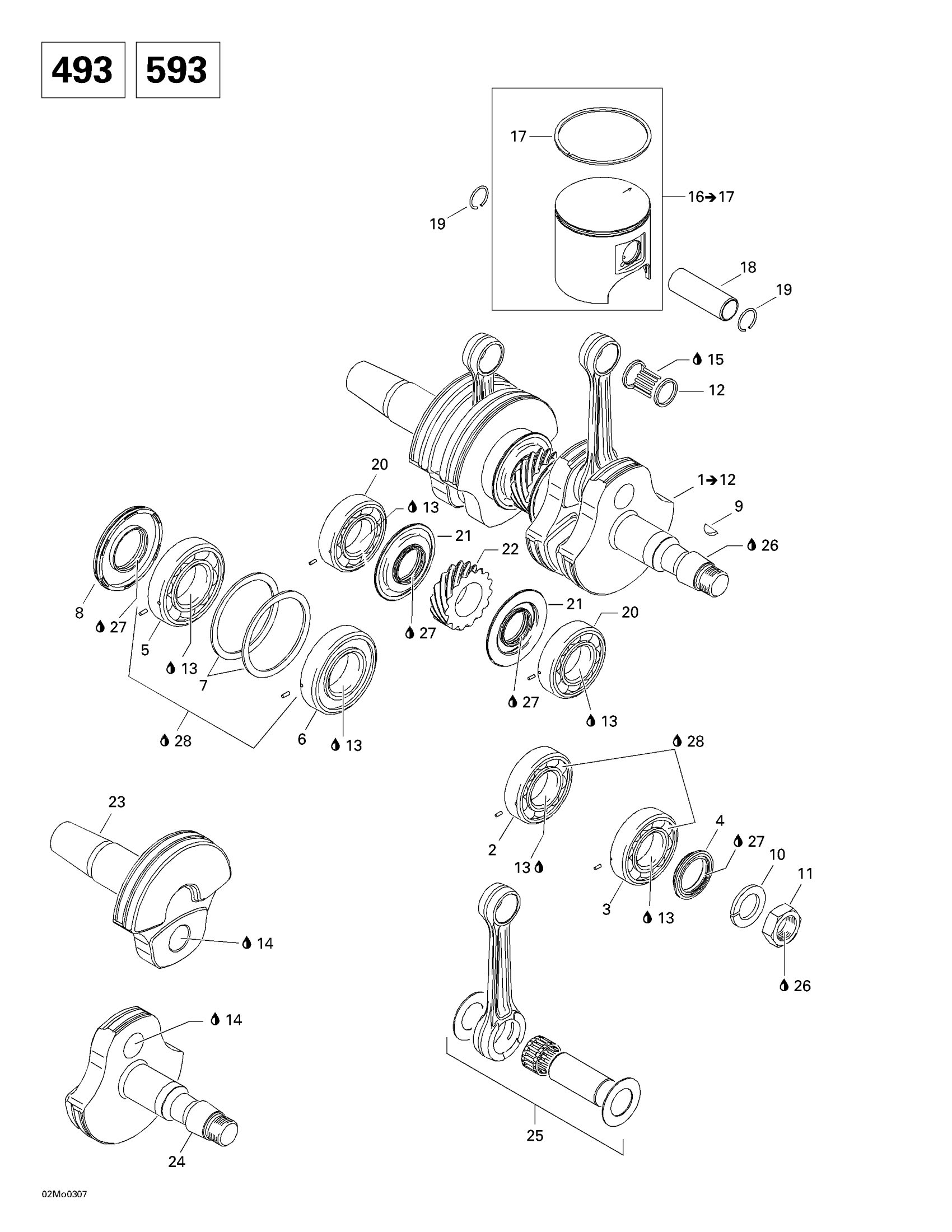

Ski-Doo Legend 500/600/700, 2003 01- Crankshaft And Pistons (493) Diagram

Crankshaft Ass’Y | Includes 1 - 11. Grand Touring 500.

Crankshaft Ass'y | Includes 1 to 9

Crankshaft Ass'y | Includes 1 to 9

Ball Bearing

Ball Bearing 6206

Oil Seal

Ball Bearing 6207 | With drive pin

Ball Bearing Sealed, 6207

Retaining Disk

Oil Seal This part replaces 290831952.

Woodruff Key

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Needle Bearing

Needle Bearing

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

Dow Corning 111, 150 g

Piston Ass’y, 1 Ring 69.40 mm | Includes 16 - 17. Grand Touring 500.

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

OVERSIZE PISTON ASS?Y, 1 RING 69.65 MM - Call your local BRP dealership | Grand Touring 500.

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

SEMI-TRAPEZ RING 69.50 MM - Call your local BRP dealership | Grand Touring 500.

Semi-Trapez Ring, 1st

Oversize Semi-Trapez Ring 69.75 mm | Grand Touring 500.

Semi-Trapez Ring, Standard

GUDGEON PIN - Call your local BRP dealership

Piston Pin

Piston Circlip

Piston Circlip

Ball Bearing 6206

Oil Seal | Included in gasket kit

Central Gear, 15 Teeth

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

Crankshaft This part replaces 420818693.

Rod Repair Kit, Mag Side | Grand Touring 500.

Rod Repair Kit, MAG Side

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership | Grand Touring 500.

Rod Repair Kit, PTO Side

Loctite 243, 10 ml

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
