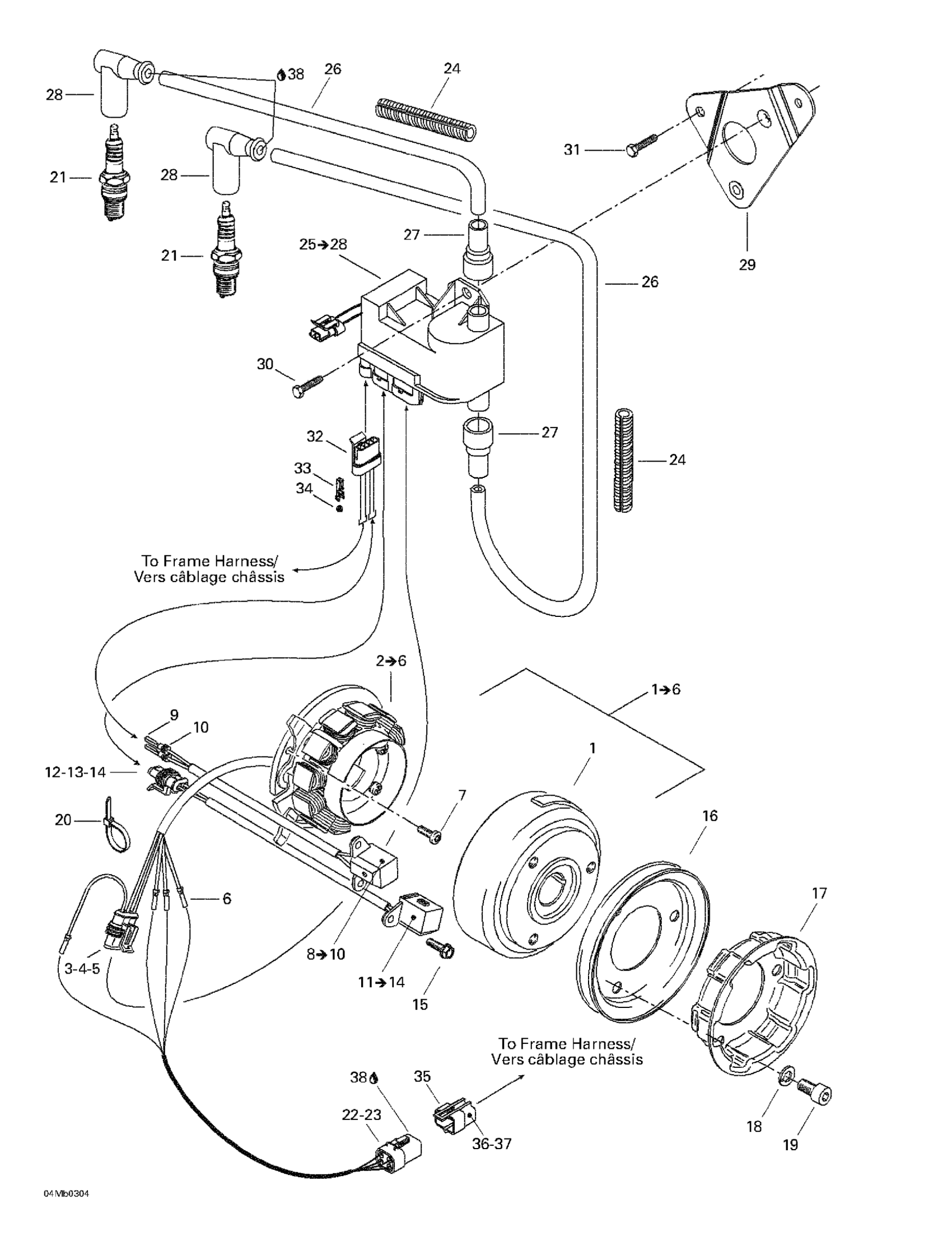

Ski-Doo Legend 380F/550F, 2003 03- Magneto Diagram

#

Description
Price

1

Magneto Ducati | Includes 1 to 2

420888970

Unavailable

1

Flywheel

420889376

$494.49

2

Stator Plate A

420889369

$319.49

3

Female Housing, 3 Circuits

409209600

$35.99

4

Female Terminal

278001014

$3.28

5

Wire Seal

278001013

$3.28

6

Female Terminal

515175567

$7.69

7

Screw

420641521

$8.57

8

Pick-Up

420665163

$164.99

9

Female Terminal

278001014

$3.28

10

Wire Seal

278001013

$3.28

11

PICK-UP - Call your local BRP dealership

420665160

Unavailable

12

Female Housing, 2 Circuits

409209500

$15.27

13

Female Terminal

278001014

$3.28

14

Wire Seal

278001013

$3.28

15

Taptite Screw M5 X 16

420941928

Unavailable

16

V-Belt Pulley

420980486

$37.99

17

Rope Sheave

420852414

$29.49

18

Lock Washer

420845311

$1.90

19

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

22

Female Terminal Housing, 4 Circuits

278001473

$26.99

23

Female Lock, 4 Circuits

278001474

$3.49

24

Was 409901700 Tubing (9 mm)

219704399

$84.99

25

Calibration Module | 380F, Includes Items 25 to 28

512059518

$479.99

Calibration Module | Includes 14 to 16

512059626

$399.99

26

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

28

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

29

Module Support Ass’Y

512059494

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

Hex. Screw M6 X 16

209561640

Unavailable

32

Female Housing, 4 Circuits

409209700

$16.18

33

Female Terminal

278001014

$3.28

34

Wire Seal

278001013

$3.28

35

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

37

Male Terminal

515175568

$9.12

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
