1980 Yamaha LC50 (LC50G) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

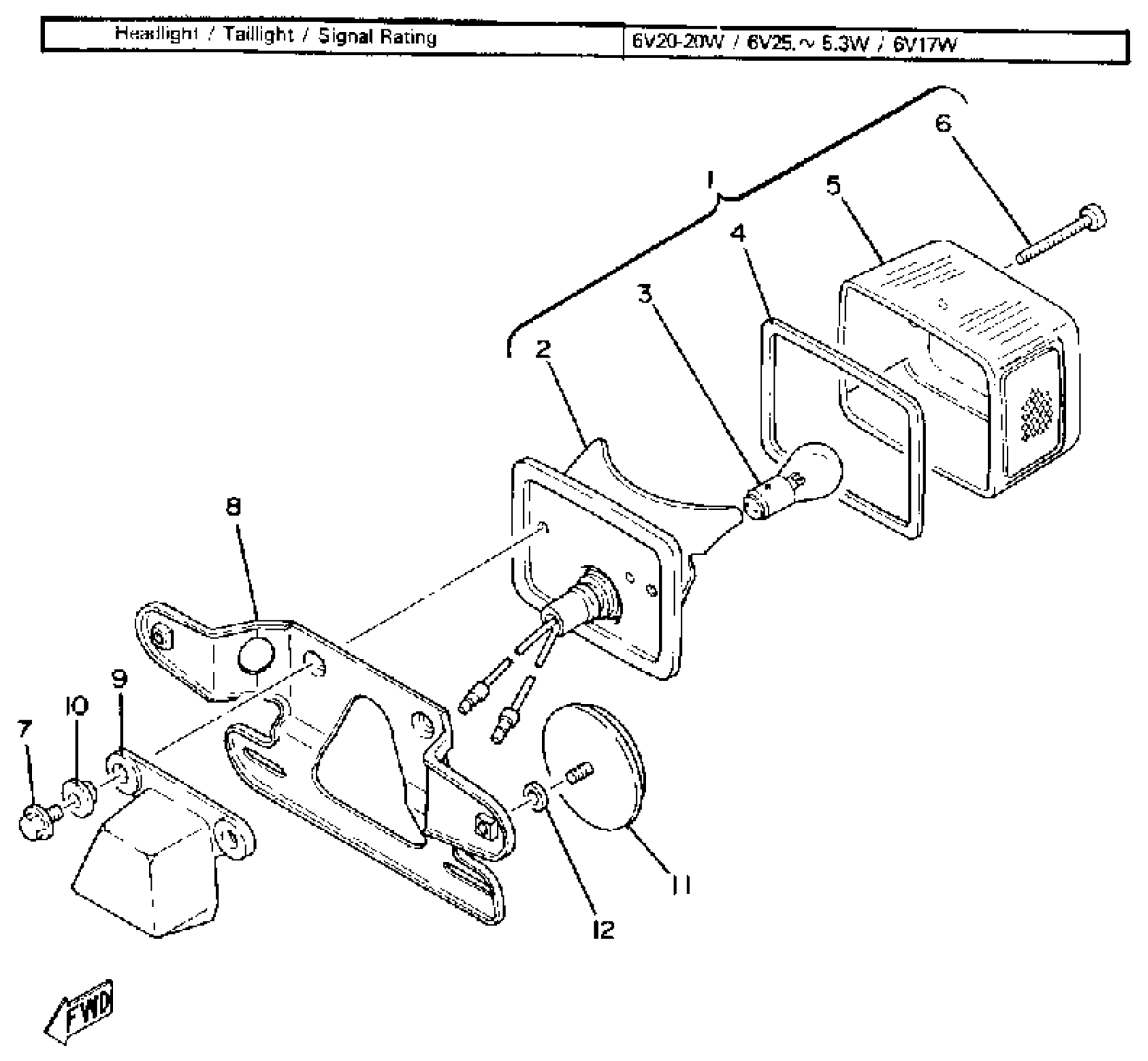

1980 Yamaha LC50 (LC50G) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. TAILLIGHT UNIT ASSEMBLY

2F4-84510-60-00

1
Out of stock

2

. BASE, TAILLIGHT

1M1-84511-60-00

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

6

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

7

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

8

BRACKET, LICENCE

3L8-84551-00-00

1
Out of stock

9

COVER

3L8-84544-00-00

1
Out of stock

10

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock
