1980 Yamaha LC50 (LC50G) Handle Switch-Lever Diagram

← All diagrams

Find the part on the Handle Switch-Lever diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

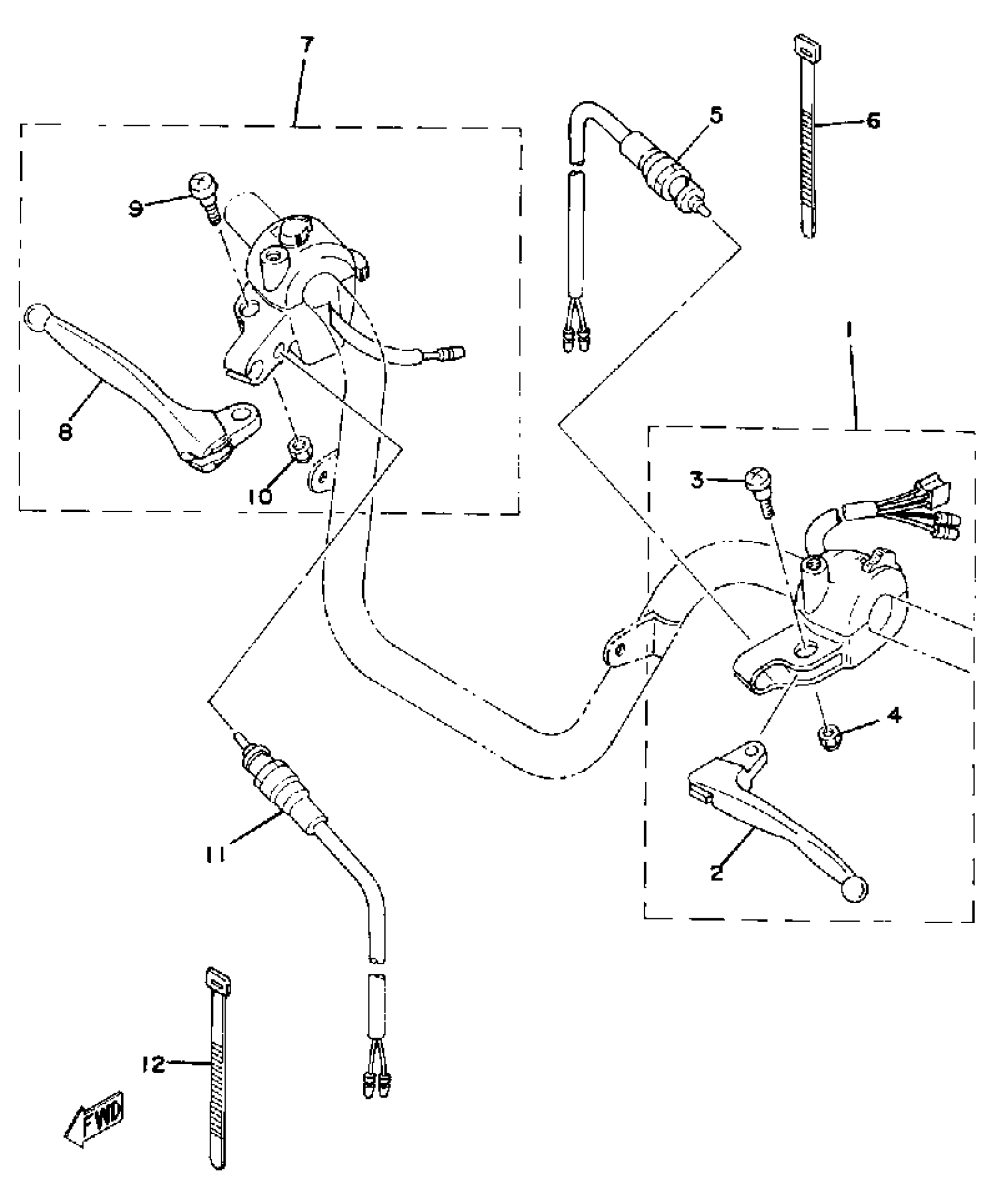

1980 Yamaha LC50 (LC50G) Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSEMBLY

3L9-W8271-00-00

1
Out of stock

2

LEVER (L.H)

137-83912-02-38

—
Out of stock

3

SCREW (1E2)

90149-05120-00

1
Out of stock

4

NUT, U

95617-05100-00

1
Out of stock

5

FRONT STOP SWITCH ASSY

395-83980-09-00

—
Out of stock

6

BAND, SWITCH CORD

437-83936-01-00

1
Out of stock

7

LEVER HOLDER ASSEMBLY R

3L9-W8292-31-00

1
Out of stock

8

LEVER (R.H)

2N3-83922-00-00

1
Out of stock

9

SCREW (1E2)

90149-05120-00

1
Out of stock

10

NUT, U

95617-05100-00

1
Out of stock

11

FRONT STOP SWITCH ASSY

395-83980-09-00

—
Out of stock

12

BAND, SWITCH CORD

437-83936-01-00

1
Out of stock
