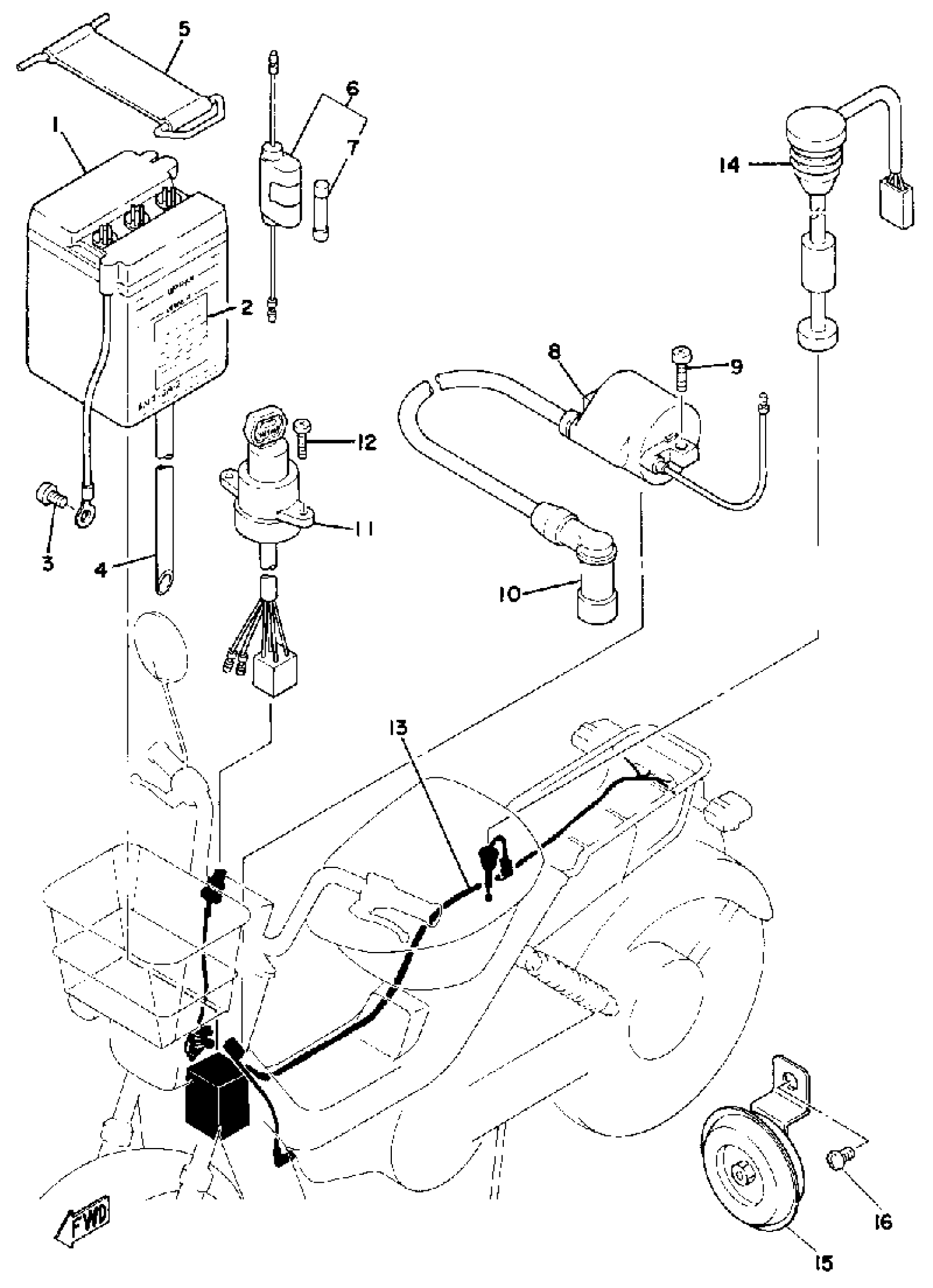

Find the part on the Electrical 1 diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha LC50 (LC50G) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

1
Out of stock

2

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

3

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

4

PIPE, BREATHER

(3L6-82112-00-00)

1
Out of stock

5

BAND, BATTERY

2N3-82131-00-00

1
Out of stock

6

FUSE HOLDER ASSY

55K-82150-02-00

1

$30.99

In stock

7

FUSE

1A0-82151-00-00

1
Out of stock

8

IGNITION COIL ASSY

4RP-82310-26-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

10

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

11

MAIN SWITCH ASSEMBLY

3L8-82510-20-00

1
Out of stock

12

SCREW

98980-04016-00

1
Out of stock

13

WIRE HARNESS ASSEMBLY

(3L9-82590-20-00)

1
Out of stock

14

OIL LVL GAUGE ASSEMBLY

(3L6-85720-01-00)

1
Out of stock

15

HORN

3L6-83371-11-00

1
Out of stock

16

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock
