1980 Yamaha LC50 (LC50G) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

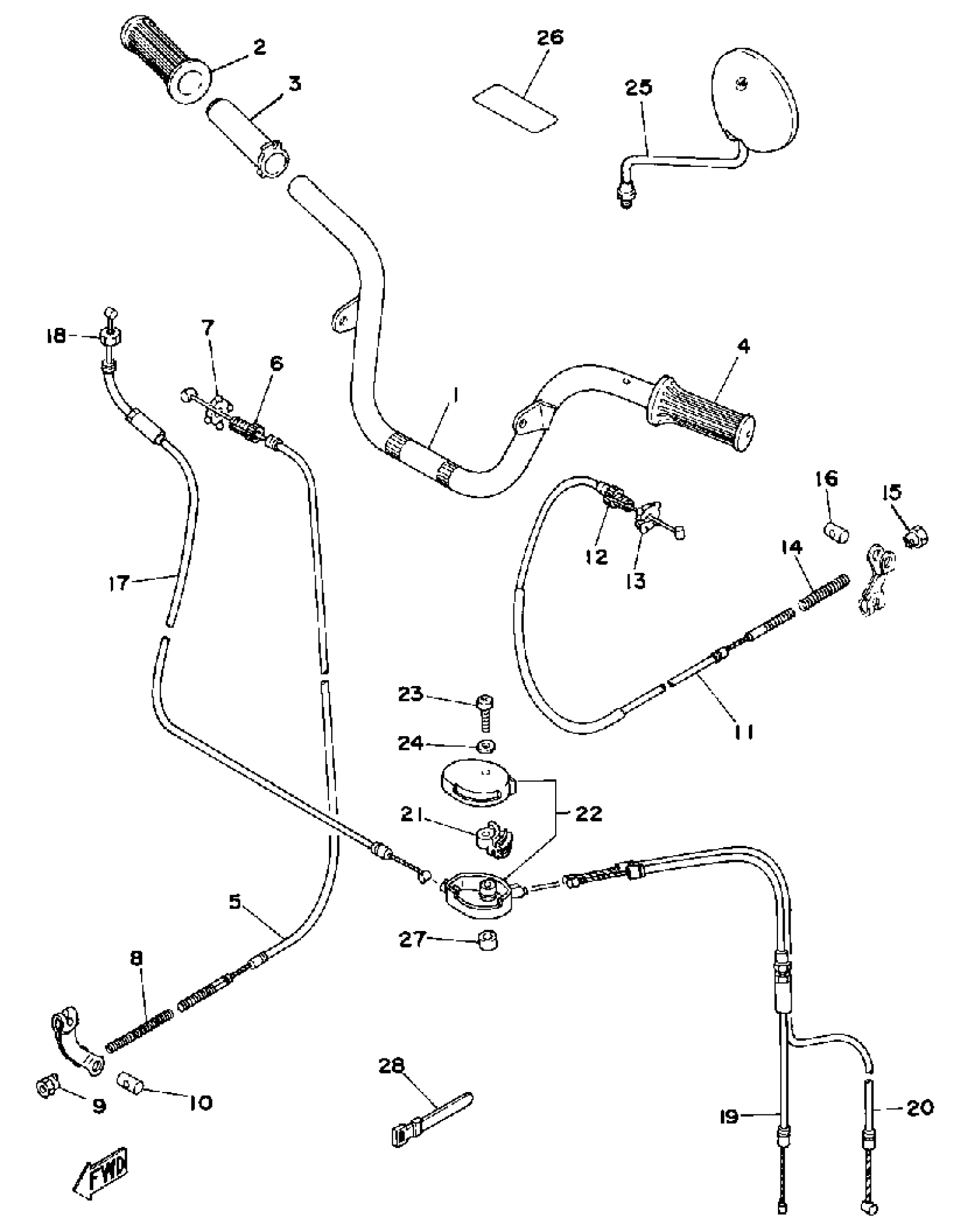

1980 Yamaha LC50 (LC50G) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(3L9-26111-00-00)

1
Out of stock

2

GRIP (R.H)

353-26242-00-00

—

$21.92

In stock

3

TUBE, GUIDE

1V1-26243-00-00

1

$14.08

In stock

4

GRIP (L.H)

353-26241-00-00

—

$19.12

In stock

5

CABLE, BRAKE

(3L9-26341-00-00)

1
Out of stock

6

BOLT

90123-08002-00

1

$8.93

In stock

7

NUT

90179-08030-00

1

$3.78

In stock

8

SPRING, COMPRESSION (3L5)

90501-10074-00

1

$6.89

In stock

9

NUT (25K)

90179-06411-00

1

$5.10

In stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

CABLE, BRAKE

(3L9-26351-00-00)

1
Out of stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

NUT

90179-08030-00

1

$3.78

In stock

14

SPRING, COMPRESSION (2T4)

90501-10513-00

—

$6.68

In stock

15

NUT (25K)

90179-06411-00

1

$5.10

In stock

16

PIN 1562723700

90249-12008-00

1

$4.70

In stock

17

CABLE, THROTTLE 1

3L9-26311-00-00

1
Out of stock

18

NUT, HEXAGON

90170-10038-00

—
Out of stock

19

CABLE, THROTTLE 2

(3L6-26312-00-00)

1
Out of stock

20

CABLE, PUMP

3L6-26321-00-00

1
Out of stock

21

PIECE, CONNECTING

2E9-26263-01-00

1
Out of stock

22

CBLE CONCT CAP ASSEMBLYASSY

2T4-26270-00-00

1
Out of stock

23

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

24

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

25

REAR VIEW MIRROR ASSY(LEFT)

1Y0-26290-10-00

—

$48.94

In stock

26

LABEL, WARNING

(3L8-22259-10-00)

1
Out of stock

27

COLLAR

(90387-05751-00)

1
Out of stock

28

CLAMP

(90465-10148-00)

1
Out of stock
