1980 Yamaha LC50 (LC50G) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

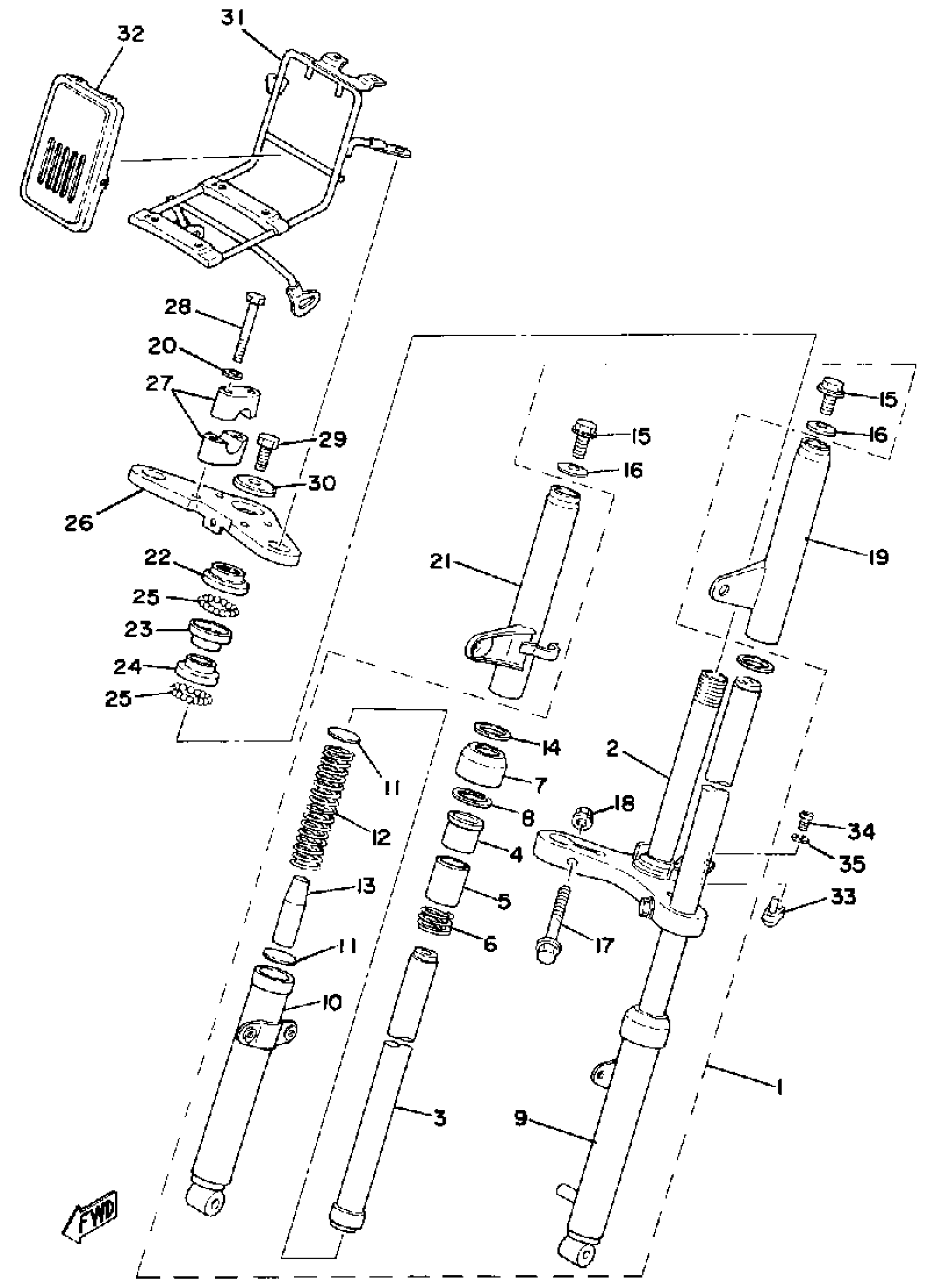

1980 Yamaha LC50 (LC50G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

3L9-23101-00-00

1
Out of stock

2

UNDER BRACKET

(3L6-23340-00-35)

1
Out of stock

3

INNER TUBE 1

(18U-23110-00-00)

1
Out of stock

4

METAL, SLIDE 1

(3L6-23125-00-00)

1
Out of stock

5

COLLAR

(3L6-23113-00-00)

1
Out of stock

6

SPRING, REBOUND

(3L6-23151-01-00)

1
Out of stock

7

SEAL, DUST

(3L6-23144-00-00)

1
Out of stock

8

CIRCLIP, INNER

(93450-34064-00)

1
Out of stock

9

. OUTER TUBE LH

3L6-23106-00-35

1
Out of stock

10

OUTER TUBE RH

(3L6-23107-00-35)

1
Out of stock

11

. SEAT, SPRING LOWER

3L6-23143-00-00

1
Out of stock

12

SPRING, FRONT FORK

(3L6-23141-02-00)

1
Out of stock

13

RUBBER

3L6-23195-01-00

1
Out of stock

14

GUIDE, COVER UPPER

(5U4-23115-00-00)

1
Out of stock

15

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

16

WASHER PLATE (3L6)

90201-10742-00

—

$6.80

In stock

17

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

18

NUT, FLANGE

95704-08500-00

—
Out of stock

19

COVER, UPPER 1

(3L9-23121-00-5F)

1
Out of stock

19

COVER, UPPER 1

(3L9-23121-00-E1)

1
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

COVER, UPPER 2

(3L9-23131-00-5F)

1
Out of stock

21

COVER, UPPER 2

(3L9-23131-00-E1)

1
Out of stock

22

RACE, BALL 1

3PT-23411-00-00

—

$35.35

In stock

23

RACE, BALL 2

2SA-23412-00-00

—

$26.00

In stock

24

RACE, BALL 3

2SA-23413-00-00

—

$26.08

In stock

25

BALL

93505-32002-00

—

$2.22

In stock

26

CROWN, HANDLE

(3L6-23435-00-00)

1
Out of stock

27

HOLDER, HANDLE UPR

(3L6-23441-00-00)

1
Out of stock

28

BOLT, HEXAGON

97013-06060-00

—

$5.38

In stock

29

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

30

WASHER (1YJ)

90209-10160-00

—

$5.68

In stock

31

CARRIER, FRONT

(3L9-24841-00-00)

1
Out of stock

32

PANEL, FRONT

(3L9-23391-00-00)

1
Out of stock

33

STEERING LOCK ASSEMBLY

4K6-23408-00-00

1
Out of stock

34

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
