1976 Yamaha LB80II (LB80IIHC) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

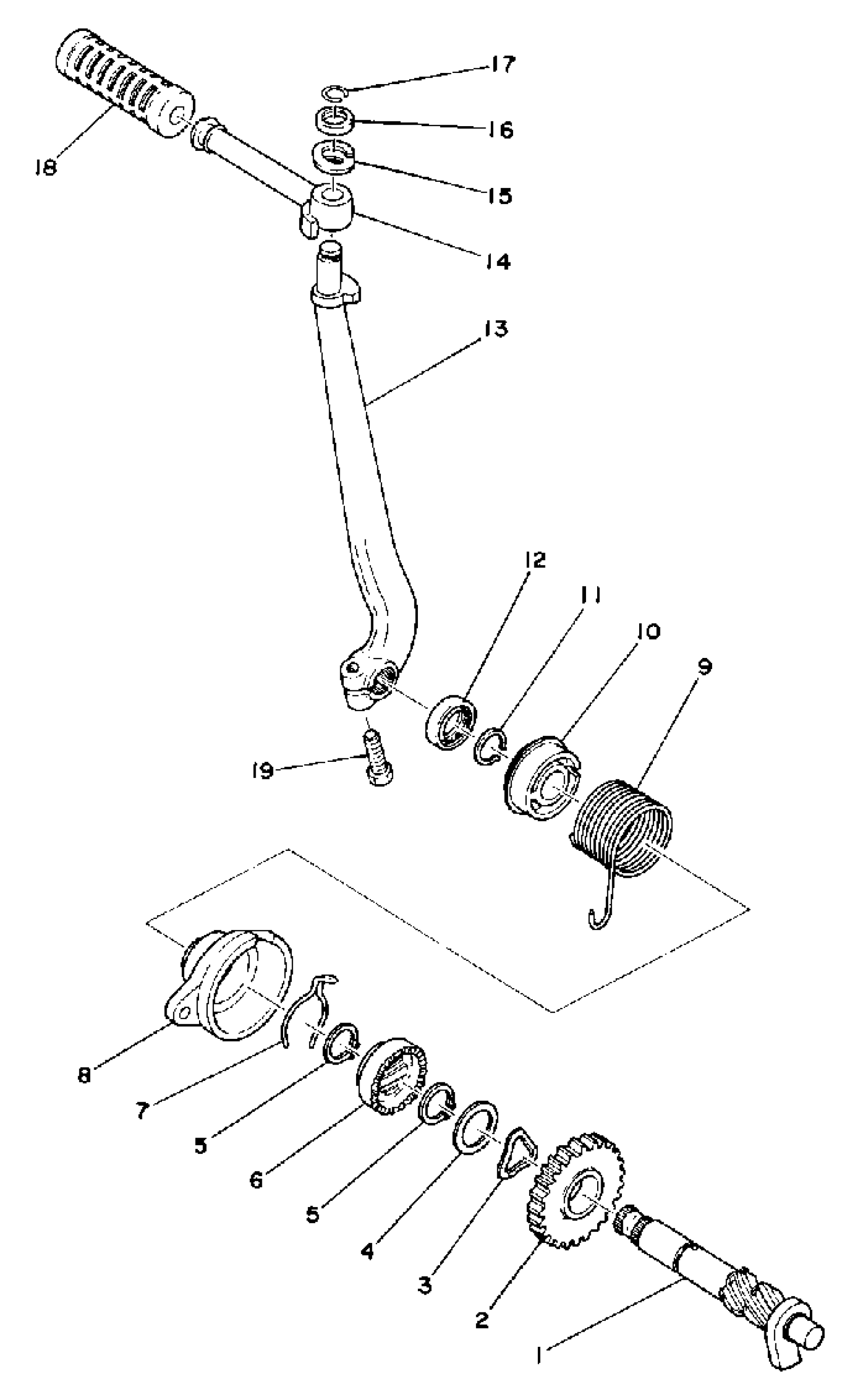

1976 Yamaha LB80II (LB80IIHC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

296-15660-00-00

—

$212.11

In stock

1

KICK CRANK ASSY

439-15620-04-00

1

$111.86

In stock

2

GEAR, KICK

(296-15641-00-00)

1
Out of stock

3

WASHER WAVE 296156430000

90206-19027-00

1

$5.78

In stock

4

SHIM

296-15644-00-00

1

$5.43

In stock

5

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

6

WHEEL, RATCHET

296-15671-00-00

—

$47.12

In stock

7

CLIP 296156870000

90468-26046-00

1
Out of stock

8

GUIDE, SPRING

1W7-15664-01-00

—

$10.00

In stock

9

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

10

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

11

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

12

UNAVAILABLE IN PRICE BOOK

93019-15001-00

1
Out of stock

14

LEVER, KICK

(214-15612-09-00)

1
Out of stock

15

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

16

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

17

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

18

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock
