1976 Yamaha LB80II (LB80IIHC) Meter - Headlight Diagram

← All diagrams

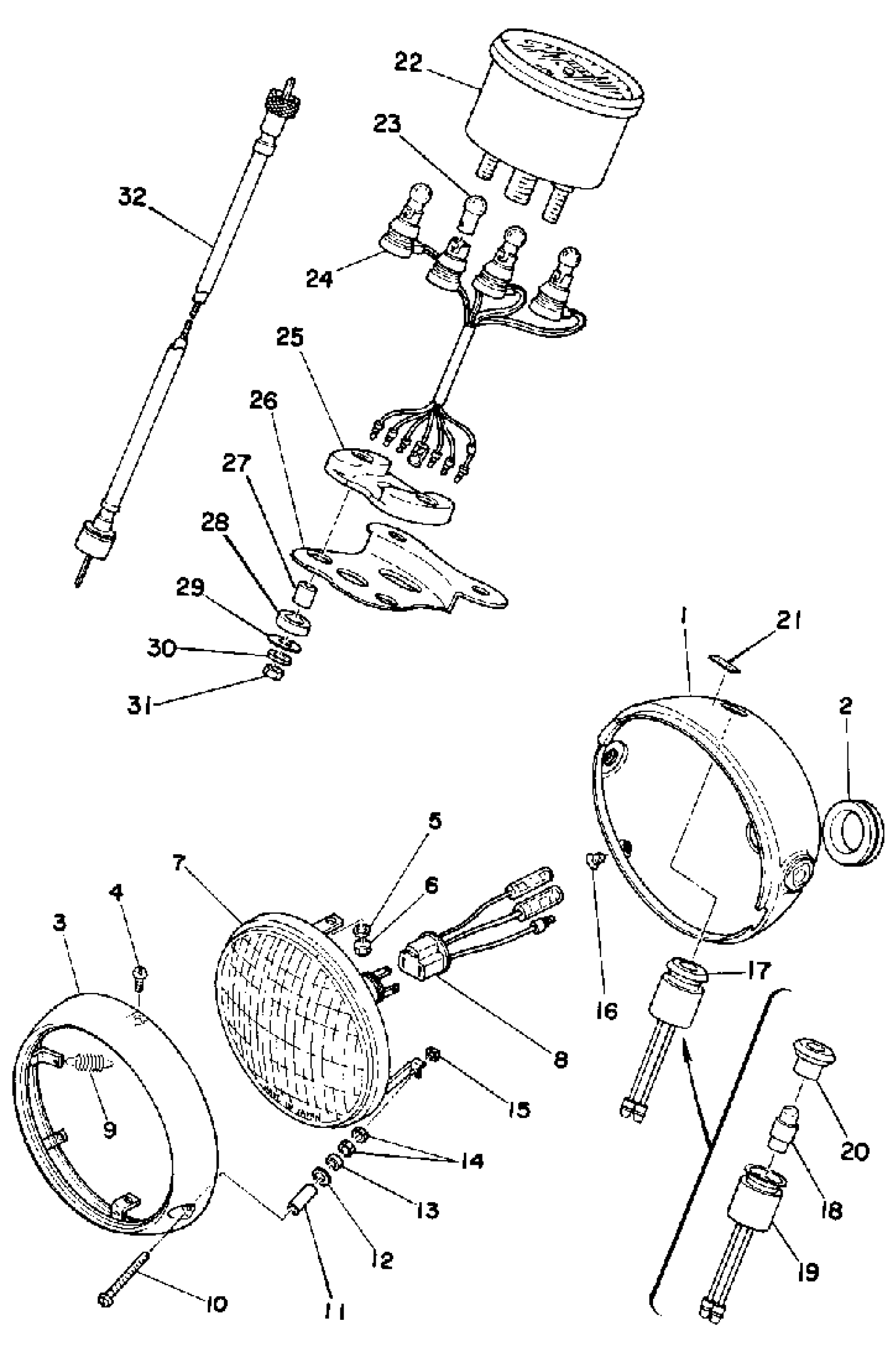

Find the part on the Meter - Headlight diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB80II (LB80IIHC) Meter - Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP UNIT ASSY

388-84110-61-00

—
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(542-84130-60-E1)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

4

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

NUT(6L4)

95380-04700-00

—

$5.62

In stock

7

LENS ASSY

388-84120-61-00

1
Out of stock

8

SOCKET

371-84312-60-00

—

$26.52

In stock

9

SPRING

(132-84335-60-00)

1
Out of stock

10

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

11

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

. SPACER

132-84328-60-00

1
Out of stock

14

NUT(6L4)

95380-04700-00

—

$5.62

In stock

15

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

17

PILOT LIGHT ASSEMBLY

(248-84101-01-00)

1
Out of stock

18

BULB,METER(6V1.5W)

104-83517-10-00

—

$7.43

In stock

19

SOCKET CORD ASSEMBLY 2

(248-84150-01-00)

1
Out of stock

20

BODY, PILOT LIGHT

(248-84157-01-00)

1
Out of stock

22

SPEEDOMETER ASSEMBLY

(542-83510-61-00)

1
Out of stock

23

BULB,(6V3W)

122-83516-10-00

1
Out of stock

24

SOCKET CORD ASSEMBLY

(542-83520-61-00)

1
Out of stock

25

DAMPER

(355-83513-00-00)

1
Out of stock

26

BRACKET, METER

(439-83519-00-33)

1
Out of stock

27

COLLAR

355-83522-00-00

1
Out of stock

28

DAMPER 2

355-83526-00-00

—

$2.25

In stock

29

WASHER, PLATE (371)

90201-06412-00

—

$5.38

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

32

SPEEDOMETER CABLE ASSY

3T5-83550-80-00

—

$42.34

In stock
