1976 Yamaha LB80II (LB80IIHC) Seat Diagram

← All diagrams

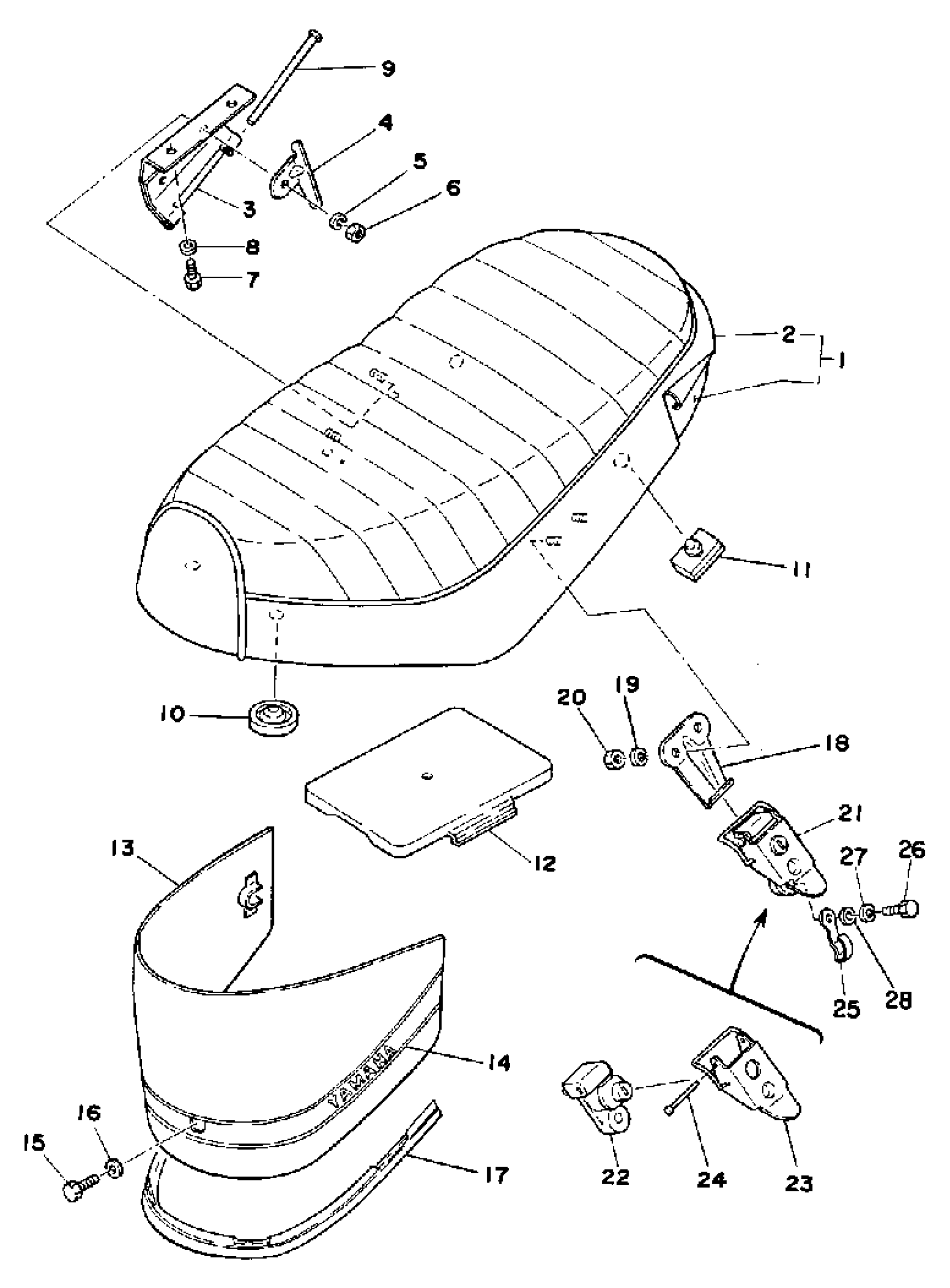

Find the part on the Seat diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB80II (LB80IIHC) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

1L4-W2471-01-00

1
Out of stock

2

. COVER, SINGLE SEAT

1L4-24711-01-00

1
Out of stock

3

HINGE, SEAT

(561-24726-00-00)

1
Out of stock

4

STOPPER

(561-24768-02-00)

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

PIN, CLEVIS (3M7)

91701-05105-00

1
Out of stock

10

DAMPER, SEAT

(296-24723-00-00)

1
Out of stock

11

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

12

LID

395-28185-00-00

1
Out of stock

13

COVER

(561-24796-01-E1)

1
Out of stock

14

EMBLEM, COVER

561-21783-00-00

—

$28.11

In stock

15

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

16

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

17

MOLD

(561-21278-00-00)

1
Out of stock

18

BRACKET, SEAT

(561-24728-01-00)

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

SEAT LEVER ASSY

1K8-24705-00-00

—

$77.71

In stock

23

LEVER, SEAT

(341-24776-00-33)

1
Out of stock

24

PIN

(90243-04015-00)

1
Out of stock

25

HOOK, HELMET

(341-24818-00-00)

1
Out of stock

26

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
