1976 Yamaha LB80II (LB80IIHC) Frame Diagram

← All diagrams

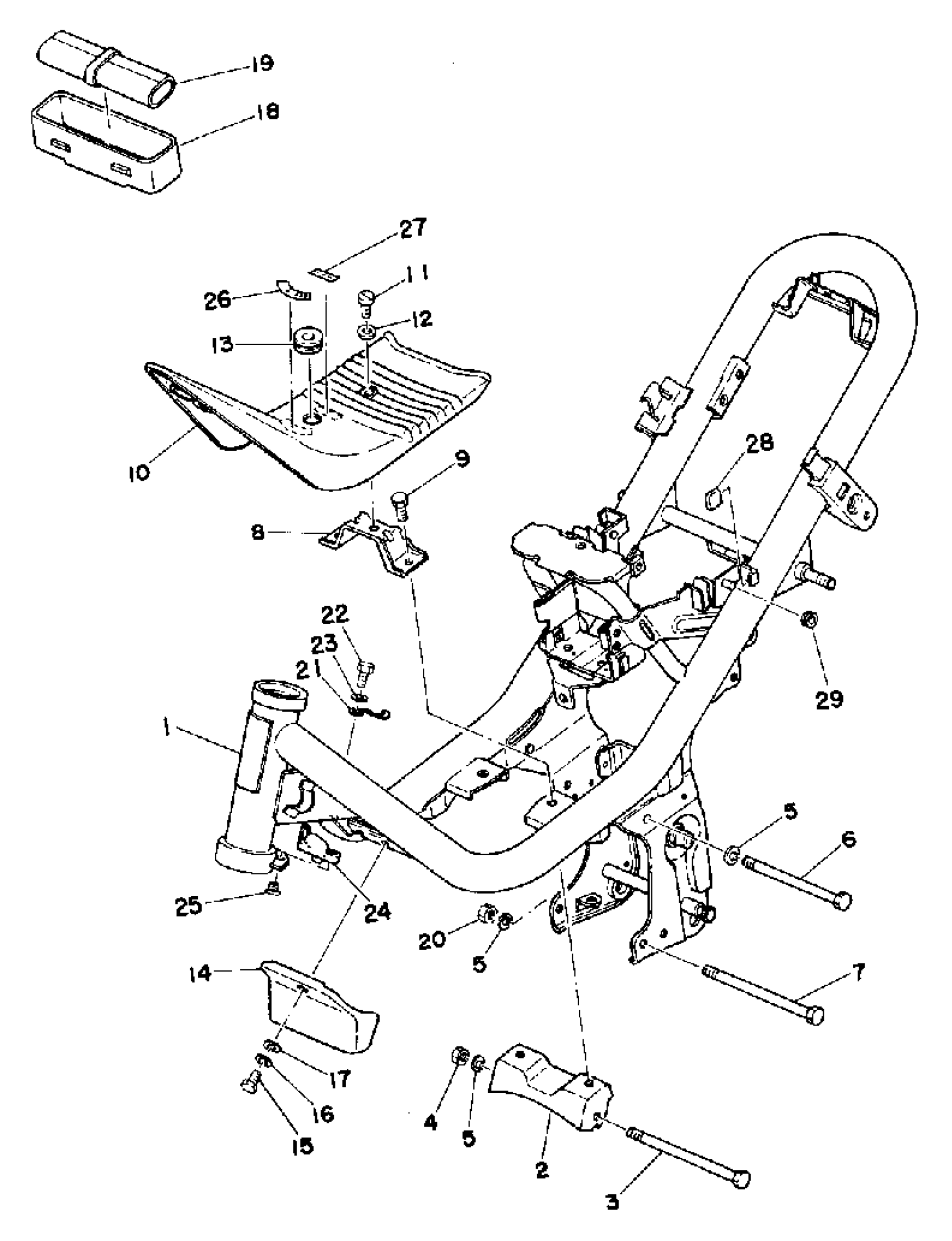

Find the part on the Frame diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB80II (LB80IIHC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1L4-21110-01-E1)

1
Out of stock

2

STAY, REAR UPPER

(439-21421-00-00)

1
Out of stock

3

BOLT

90109-08386-00

—
Out of stock

4

NUT, HEXAGON (509)

90170-08158-00

1

$1.10

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

7

BOLT (5A6)

90101-08538-00

1

$7.00

In stock

8

STAY, LEG SHIELD L

439-28321-00-00

1
Out of stock

9

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

10

COVER,LOWER

439-28385-01-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

12

WASHER, PLATE

90201-06M08-00

1
Out of stock

13

GROMMET(52W)

90480-21436-00

—
Out of stock

14

HEAD

(439-28386-00-00)

1
Out of stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

UNAVAILABLE IN PRICE BOOK

(439-21771-00-00)

1
Out of stock

19

TOOL KIT

2U2-W2810-00-00

1
Out of stock

20

NUT, FLANGE

95704-08500-00

—
Out of stock

21

HOLDER, CABLE 2

(439-23319-00-00)

1
Out of stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

STEERING LOCK ASSEMBLY

(137-23480-00-00)

1
Out of stock

25

SCREW, FLAT

98707-06014-00

—
Out of stock

26

EMBLEM

(542-28328-00-00)

1
Out of stock

27

EMBLEM

(542-28338-00-00)

1
Out of stock

28

DAMPER, SEAT

561-24723-01-00

1
Out of stock

29

GROMMET

90480-10178-00

1
Out of stock
