1976 Yamaha LB802A (LB802AC) Transmission Diagram

← All diagrams

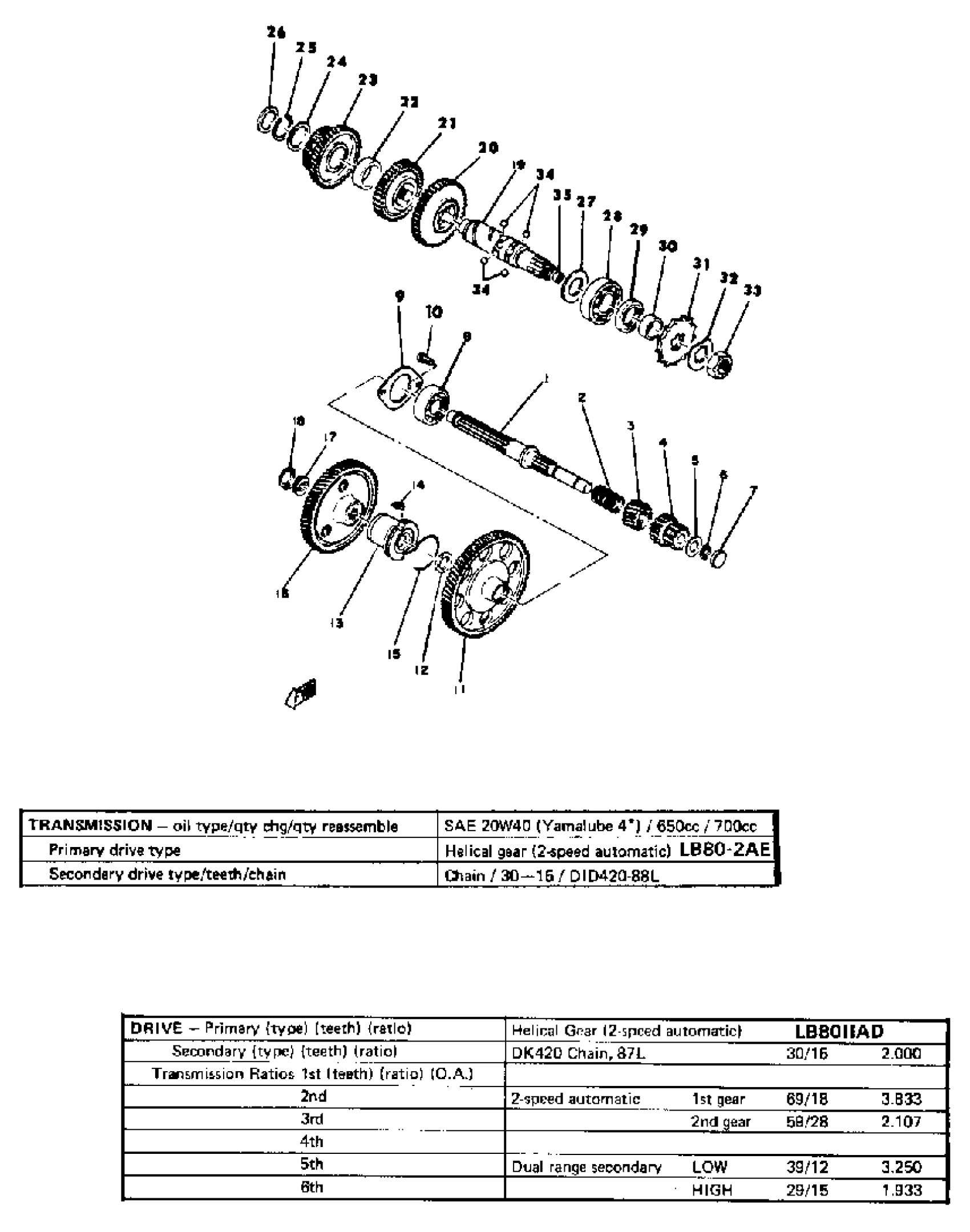

Find the part on the Transmission diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

1L4-17411-00-00

1
Out of stock

2

SPRING, COMPRESSION (384-15572-00)

90501-12089-00

1
Out of stock

3

GEAR, KICK PINION

384-15631-00-00

1
Out of stock

4

GEAR, 2ND PINION

386-17121-00-00

1
Out of stock

5

SHIM

(615-45533-01-03)

1
Out of stock

5

SHIM

(615-45533-01-04)

1
Out of stock

5

SHIM

(615-45533-01-05)

1
Out of stock

6

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

7

PLUG, PLATE

(90333-18009-00)

1
Out of stock

7

PLUG, SPEC''L SHAPE

(90338-17006-00)

1
Out of stock

7

PLUG (517)

90338-18064-00

1
Out of stock

8

1

$31.64

In stock

9

PLATE, BEARING COVER

296-17471-00-00

1
Out of stock

10

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

11

PRI DRVN GEAR

(1F5-16170-00-00)

1
Out of stock

11

PRI DRVN GEAR

(386-16170-00-00)

1
Out of stock

12

WASHER, PLATE (384)

90201-16383-00

—

$6.71

In stock

13

ONE WAY BOSS

(384-16180-00-00)

1
Out of stock

13

BOSS, ONEWAY

517-16180-00-00

—

$21.11

In stock

14

PAWL, ONE WAY

384-15635-00-00

—

$4.95

In stock

15

SPRING, PAWL

2T4-15637-01-00

—

$3.25

In stock

16

PRI DRVN GEAR (59T)

386-16150-01-00

1
Out of stock

17

HOLDER, KICK GEAR

137-15654-00-00

1
Out of stock

18

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

19

AXLE, DRIVE

439-17421-00-00

—

$200.91

In stock

20

GEAR, 1ST WHEEL (39T)

384-17211-00-00

—

$67.29

In stock

21

GEAR, 2ND WHEEL

386-17221-00-00

1
Out of stock

22

COLLAR (384-17442-00)

90387-25190-00

1
Out of stock

23

GEAR, KICK IDLE

384-15651-00-00

1
Out of stock

24

SHIM (T:0.10MM)

626-45577-00-00

1

$5.78

In stock

24

SHIM (T:0.30MM)

626-45577-20-00

1

$6.31

In stock

24

SHIM (T:0.50MM)

626-45577-40-00

1

$5.46

In stock

25

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

26

WASHER, PLATE

90201-21381-00

1
Out of stock

27

SPACER

(90560-20040-00)

1
Out of stock

28

BEARING(1YW)

93306-20461-00

—

$33.41

In stock

29

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

30

COLLAR (525)

90387-20491-00

—

$13.71

In stock

31

—

$13.78

In stock

31

—

$13.78

In stock

31

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

31

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

31

SPROCKET, DRIVE (166-17461-60)

93812-16092-00

1
Out of stock

32

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

33

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

34

BALL

93509-32012-00

—
Out of stock

35

OIL SEAL(1RY)

93104-06108-00

—

$9.22

In stock
