1976 Yamaha LB802A (LB802AC) Shifter LB80IIAC Diagram

← All diagrams

Find the part on the Shifter LB80IIAC diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

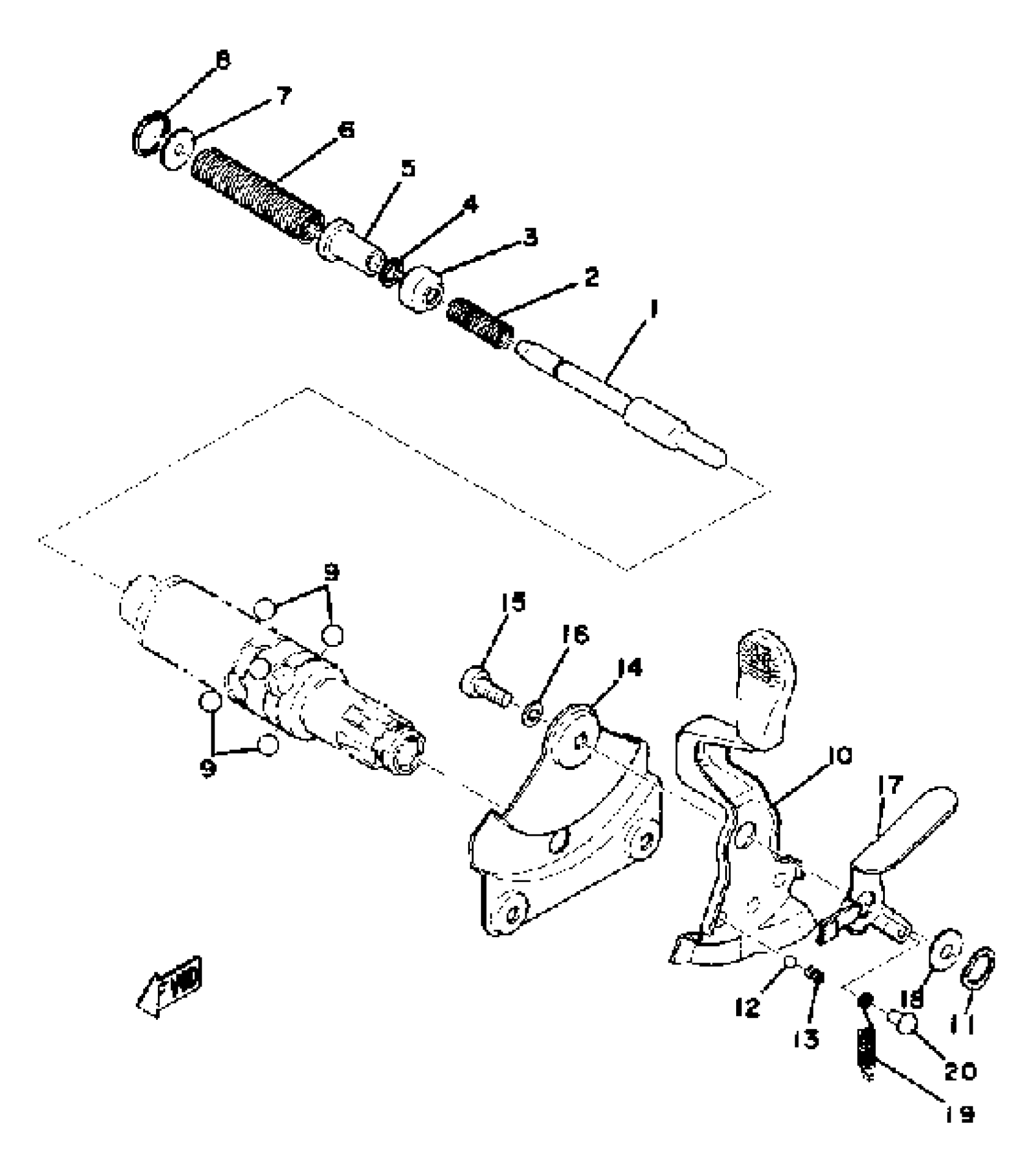

1976 Yamaha LB802A (LB802AC) Shifter LB80IIAC Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD, SHIFTER

99999-00848-00

1
Out of stock

2

SPRING, DAMPER (384)

90501-08183-00

1

$2.49

In stock

3

HEAD, SHIFTER

234-18412-00-00

—

$31.40

In stock

4

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

5

RETAINER, SPRING

384-18473-01-00

1
Out of stock

6

SPRING, SHIFT (384)

90501-12198-00

—

$2.78

In stock

7

WASHER, SPEC''L SHAP

90209-01134-00

1
Out of stock

8

CIRCLIP

99009-15500-00

1

$9.15

In stock

9

BALL

93509-32012-00

—
Out of stock

10

LEVER, SHIFT

439-18451-02-00

—

$70.69

In stock

11

WASHER, WAVE

90206-10036-00

1

$5.63

In stock

12

BALL (12R)

93507-32031-00

1
Out of stock

13

SPRING, COMPRESSION

90501-09197-00

1
Out of stock

14

SEAL, DUST

384-18428-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

LEVER, STOPPER

439-18148-01-00

1
Out of stock

18

. WASHER, PLATE

90201-06050-00

1
Out of stock

19

SPRING TENSION 257163450000

90506-07066-00

—
Out of stock

20

HOOK, SPRING

132-16346-00-00

—
Out of stock
