1976 Yamaha LB802A (LB802AC) Clutch Diagram

← All diagrams

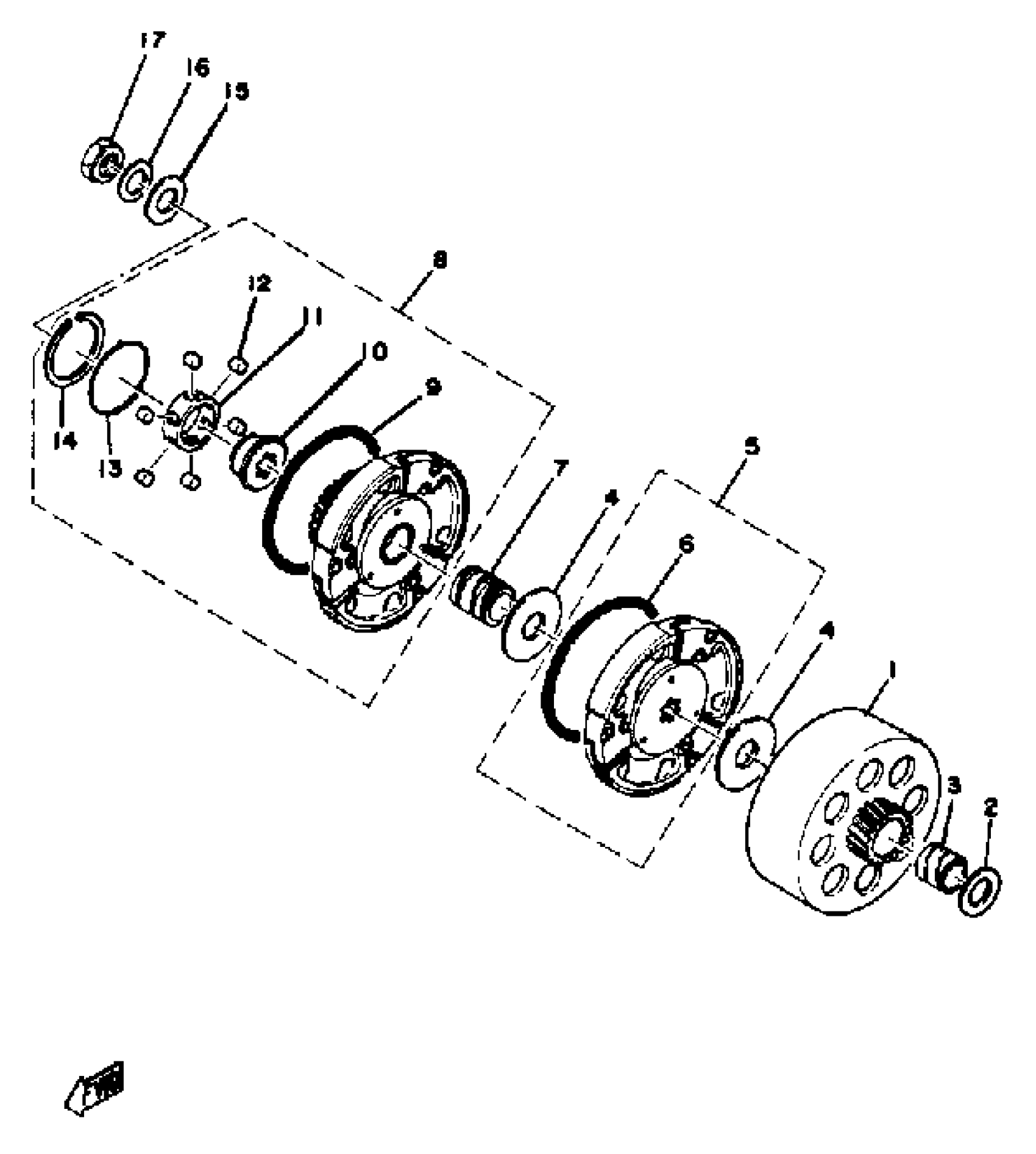

Find the part on the Clutch diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRV GEAR ASSEMBLY

(384-16110-00-00)

1
Out of stock

2

WASHER, PLATE (384)

90201-16383-00

1

$6.71

In stock

3

SPACER

(90560-15119-00)

1
Out of stock

4

WASHER, PLATE

(90201-16250-00)

1
Out of stock

5

CLUTCH CARRIER ASSEMBLY

384-16620-02-00

1
Out of stock

6

SPRING, TENSION

(90506-12025-00)

1
Out of stock

7

SPACER

(90560-15120-00)

1
Out of stock

8

CLUTCH CARRIER ASSEMBLY

(384-16630-02-00)

1
Out of stock

8

CLUTCH CARRIER ASSEMBLY

439-16630-00-00

1
Out of stock

9

SPRING, TENSION

(90506-12025-00)

1
Out of stock

9

SPRING, TENSION

(90506-12139-00)

1
Out of stock

10

BOSS, CLUTCH HSNG

296-16512-00-00

1
Out of stock

11

CAGE

(384-16586-01-00)

1
Out of stock

12

PIN, DOWEL

93606-06091-00

1
Out of stock

13

SPRING TORSION 2J

90508-10739-00

1
Out of stock

14

CIRCLIP, INNER

(93450-41030-00)

1
Out of stock

15

WASHER, PLATE(3RR)

90201-133P2-00

—

$6.85

In stock

16

WASHER, CONICAL SPR (384-16119-00)

90208-13016-00

1
Out of stock

17

NUT, SPEC''L SHAPE

90179-13073-00

1
Out of stock
