1977 Yamaha LB80-3D (LB80_3D) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

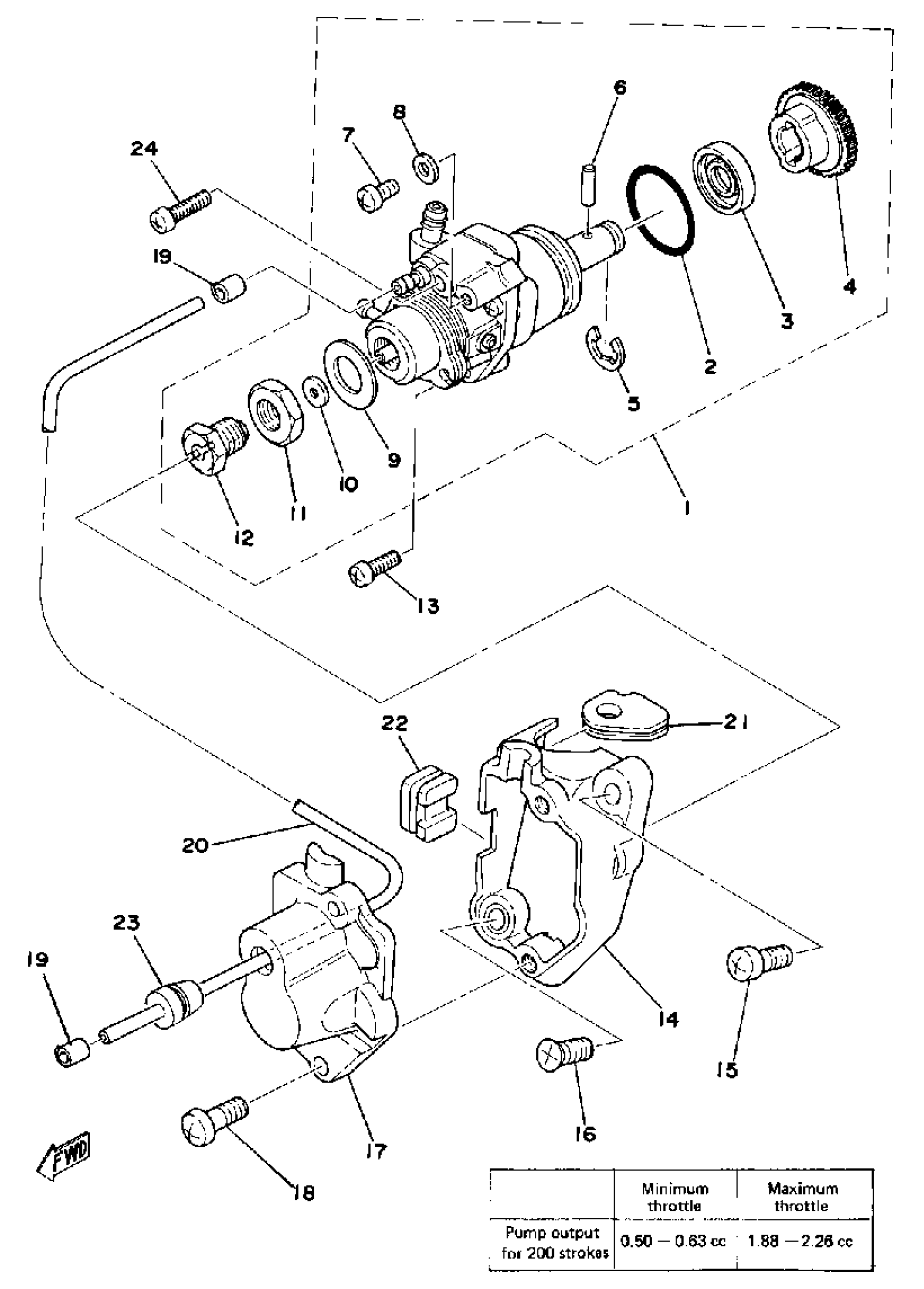

1977 Yamaha LB80-3D (LB80_3D) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(1M4-13101-01-00)

1
Out of stock

2

O-RING

93210-26240-00

1

$6.82

In stock

3

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

4

GEAR, WORM WHEEL

296-13124-00-00

—

$12.75

In stock

5

CIRCLIP

99080-07600-00

1

$2.89

In stock

6

PIN, DOWEL

93603-14026-00

1
Out of stock

7

SCREW, BIND

98980-04008-00

1

$3.26

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SHIM

296-13147-00-00

1
Out of stock

10

PLATE, ADJUSTING

384-13138-00-00

1

$5.32

In stock

11

NUT

90170-10105-00

—

$3.20

In stock

12

BOLT, UNION (527 CKD)

90401-10029-00

—

$6.77

In stock

13

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

14

COVER, OIL PUMP

439-15416-02-00

1
Out of stock

15

SCREW, PAN

98507-06014-00

1

$6.18

In stock

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

17

COVER, OIL PUMP R

(439-15426-02-00)

1
Out of stock

18

SCREW, PAN

98507-06014-00

1

$6.18

In stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

HOSE

90445-05206-00

1
Out of stock

21

HOLDER, OIL PIPE

384-13174-00-00

—
Out of stock

22

GROMMET

90480-16179-00

1
Out of stock

23

GROMMET (439)

90480-11057-00

—
Out of stock

24

SCREW, PAN

98507-05035-00

—

$6.69

In stock
