1977 Yamaha LB80-3D (LB80_3D) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

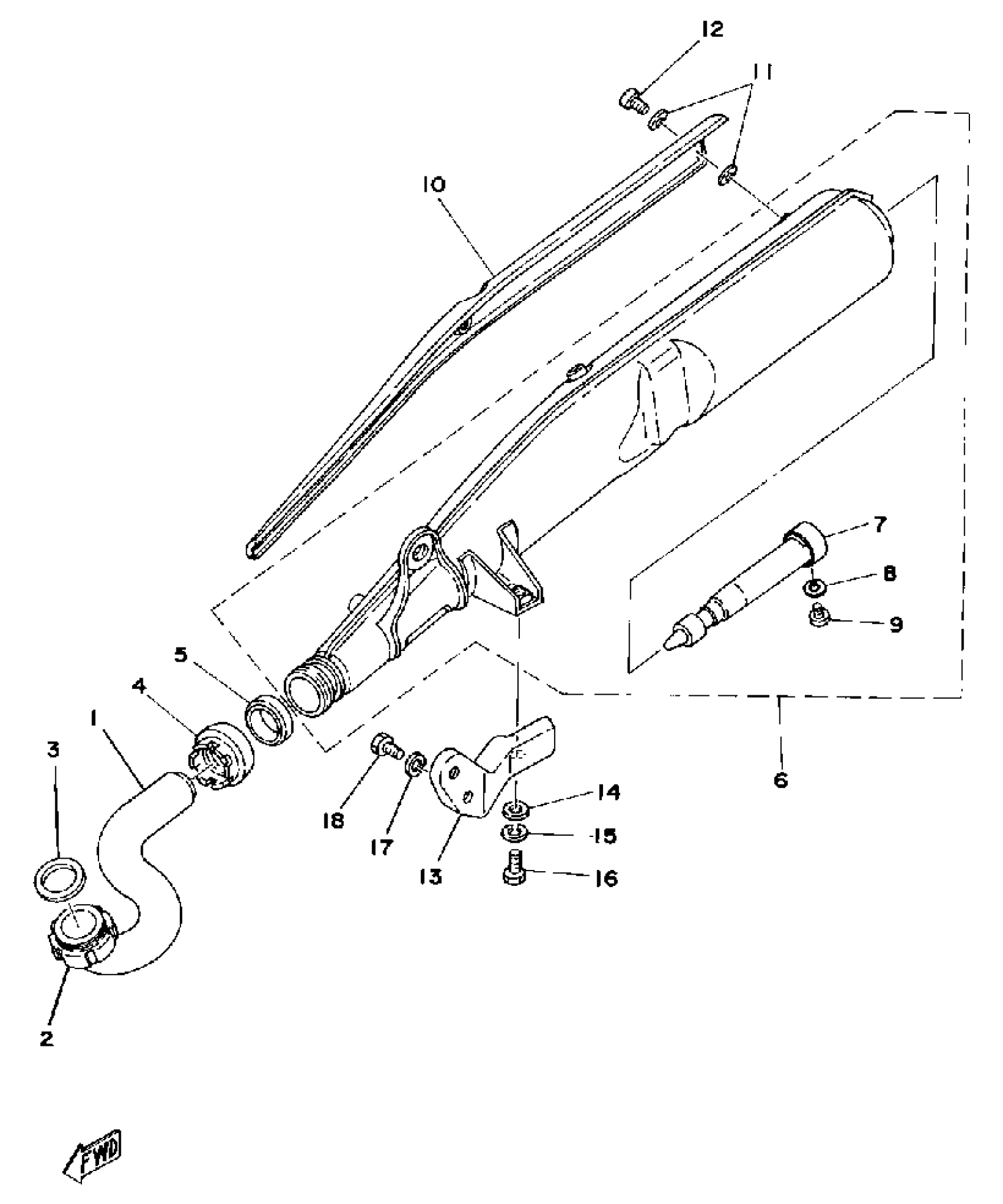

1977 Yamaha LB80-3D (LB80_3D) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

(1M4-14611-00-00)

1
Out of stock

2

NUT, RING

1L4-14612-00-00

1
Out of stock

3

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

4

NUT, MUFFLER JOINT

395-14713-00-00

—
Out of stock

5

GASKET, MUFFLER

3NA-14714-01-00

—

$21.72

In stock

6

MUFFLER ASSEMBLY L

(1T8-14710-01-00)

1
Out of stock

7

PIPE, OUTLET

(1T8-14752-00-00)

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

10

PROTECTOR, MUFF 1

(1M3-14718-01-93)

1
Out of stock

11

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

12

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

13

STAY, MUFFLER 1

(1M3-21445-01-00)

1
Out of stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

BOLT(JA9)

90101-08691-00

—

$4.65

In stock
