1977 Yamaha LB80-3D (LB80_3D) Crankcase Cover Diagram

← All diagrams

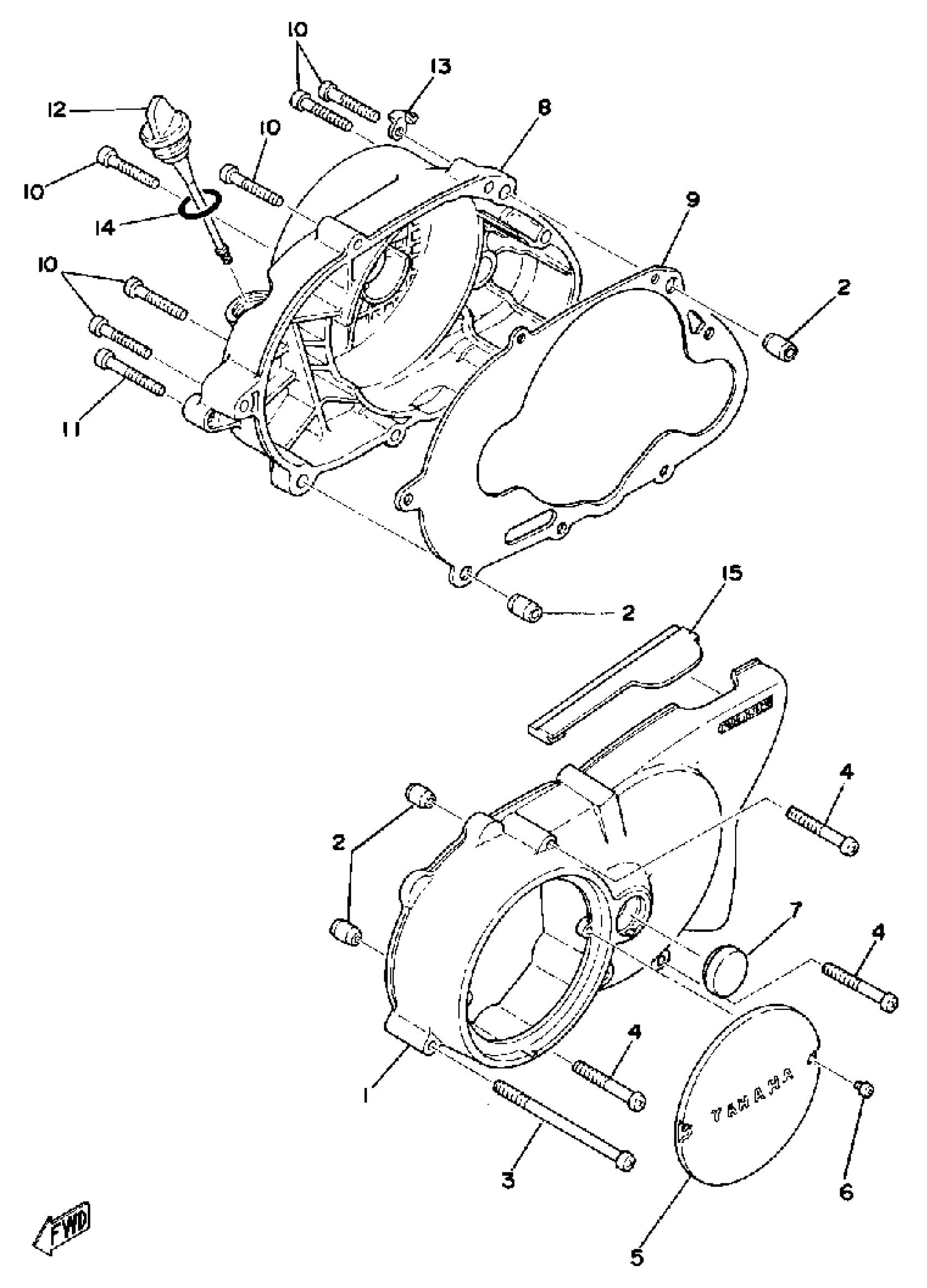

Find the part on the Crankcase Cover diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(1L6-15411-00-00)

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

SCREW, PAN

98507-06100-00

1

$6.80

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

COVER, GENERATOR (1)

164-15415-00-00

1

$22.02

In stock

6

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

7

COVER, CAP

257-15417-01-00

1

$6.58

In stock

8

COVER, CRANKCASE R

(517-15421-01-00)

1
Out of stock

9

GASKET, CRANKCASE COVER 1

4AW-15451-00-00

1
Out of stock

10

SCREW, PAN

98507-06035-00

1

$6.18

In stock

11

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

12

PLUG, OIL LEVEL

4L0-15362-00-00

1
Out of stock

13

HOLDER

(1L7-15378-00-00)

1
Out of stock

14

O-RING

93210-21190-00

1

$5.59

In stock

15

COVER

(1M3-15492-01-00)

1
Out of stock
