1977 Yamaha LB80-3D (LB80_3D) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

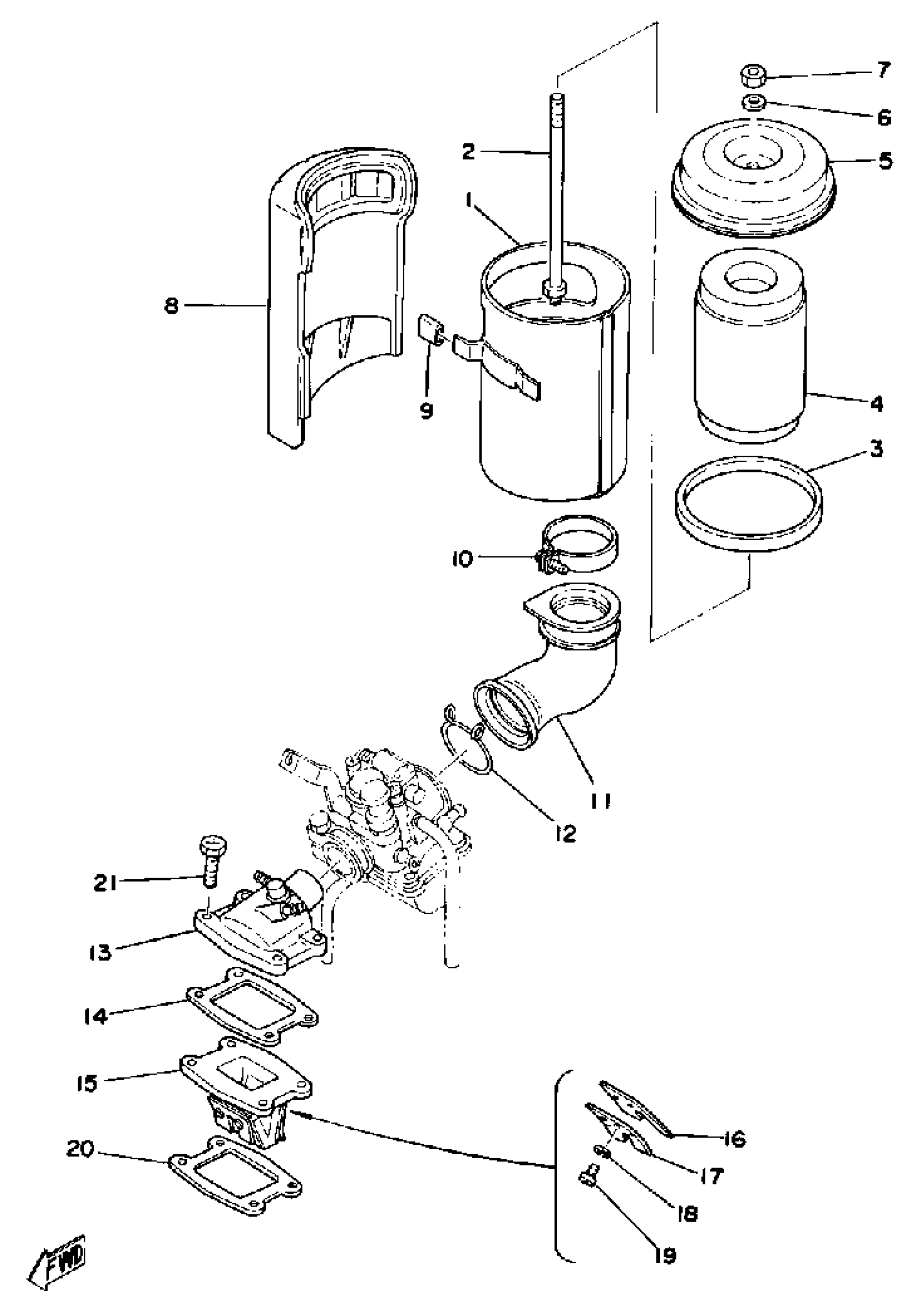

1977 Yamaha LB80-3D (LB80_3D) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(1M3-14411-01-00)

1
Out of stock

2

BOLT, STUD

(90116-06233-00)

1
Out of stock

3

GASKET, AIR CLEANER

(1M3-14416-01-00)

1
Out of stock

4

ELEMENT, AIR CLNR

1M3-14451-00-00

1
Out of stock

5

CAP, CLEANER CASE 1

(1M3-14412-00-00)

1
Out of stock

6

GASKET(J17)

90430-06218-00

1

$2.68

In stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

JOINT

(1M3-14454-02-00)

1
Out of stock

9

GROMMET

(90480-01200-00)

1
Out of stock

10

CLAMP, HOSE (5R2)

90460-41191-00

1
Out of stock

11

JOINT, AIR CLNR 1

(1M4-14453-00-00)

1
Out of stock

12

CLIP 296144550000

90467-20023-00

1

$3.55

In stock

13

JOINT, CARBURETOR

(1F5-13565-00-00)

1
Out of stock

14

GASKET, VALVE SEAT

1F5-13622-02-00

1
Out of stock

15

REED VALVE ASSEMBLY

(1F5-13610-00-00)

1
Out of stock

16

VALVE, REED

314-13613-01-00

—

$32.53

In stock

17

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

18

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

19

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

20

GASKET, VALVE SEAT

1F5-13621-02-00

1
Out of stock

21

SCREW, HEXAGON

(90153-06016-00)

1
Out of stock
