1977 Yamaha LB80-3D (LB80_3D) Clutch Diagram

← All diagrams

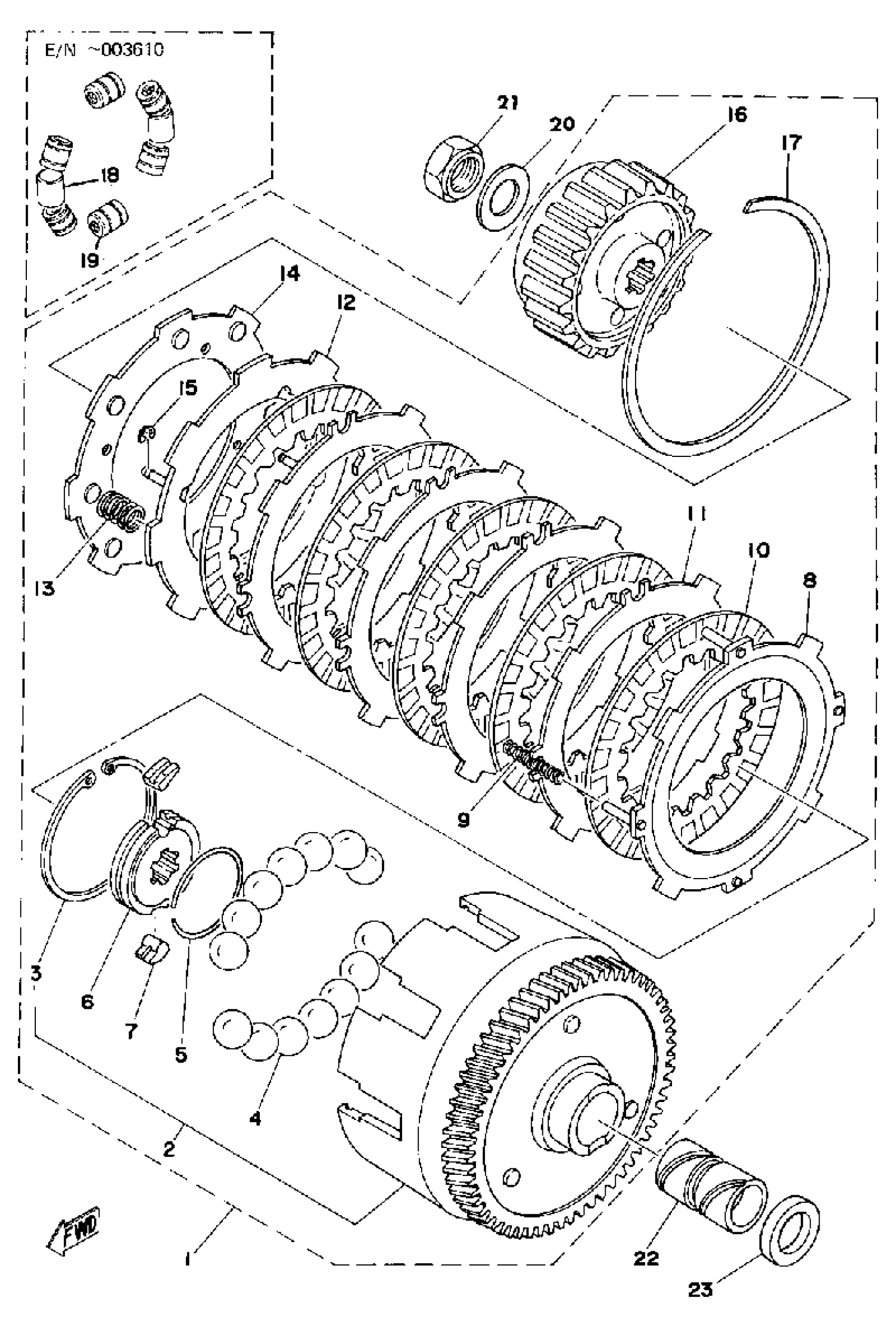

Find the part on the Clutch diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(1L7-16301-00-00)

1
Out of stock

2

PRI DRVN GEAR

(527-16150-01-30)

1
Out of stock

2

PRI DRVN GEAR

(527-16150-10-20)

1
Out of stock

2

PRI DRVN GEAR

(527-16150-10-30)

1
Out of stock

2

PRI DRVN GEAR

(527-16150-10-40)

1
Out of stock

3

CIRCLIP, R-TYPE

(93420-61041-00)

1
Out of stock

4

BALL (5/8INCH) (527 CKD)

93505-08030-00

1

$6.68

In stock

5

SPRING, PAWL

2T4-15637-01-00

—

$3.25

In stock

6

BOSS, ONEWAY

517-16180-00-00

—

$21.11

In stock

7

PAWL, ONE WAY

384-15635-00-00

—

$4.95

In stock

8

PLATE, WT THRUST

(517-16523-00-00)

1
Out of stock

8

PLATE, THRUST WEIGHT

527-16520-10-00

—
Out of stock

9

SPRING, COMPRESSION

(90501-08437-00)

1
Out of stock

9

SPRING, COMPRESSION

(90501-10449-00)

1
Out of stock

10

PLATE, FRICTION

3E5-16521-00-00

1

$14.46

In stock

11

PLATE, CLUTCH 1

517-16524-10-00

—

$34.94

In stock

11

PLATE, CLUTCH 2

517-16524-20-00

—

$35.03

In stock

11

PLATE, CLUTCH 3

517-16524-30-00

—

$32.46

In stock

12

PLATE, PRESSURE 1

(517-16551-91-00)

1
Out of stock

13

SPRING, COMPRESSION

(90501-12369-00)

1
Out of stock

14

PLATE, PRESSURE 2

517-16561-01-00

—
Out of stock

15

CIRCLIP(6L5)

99080-03600-00

1

$3.26

In stock

16

BOSS, CLUTCH

527-16571-01-00

—
Out of stock

17

CIRCLIP (22F)

93451-08094-00

—

$7.66

In stock

18

ROLLER WEIGHT ASSEMBLY

(517-16540-00-00)

1
Out of stock

19

ROLLER, WEIGHT

(120-16545-00-00)

1
Out of stock

20

WASHER (517 CLUTCH)

90208-16019-00

—
Out of stock

21

NUT (517 CLUTCH)

90179-16190-00

—
Out of stock

22

SPACER (517)

90560-17146-00

—

$21.02

In stock

23

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock
