1977 Yamaha LB80-3D (LB80_3D) Carburetor Diagram

← All diagrams

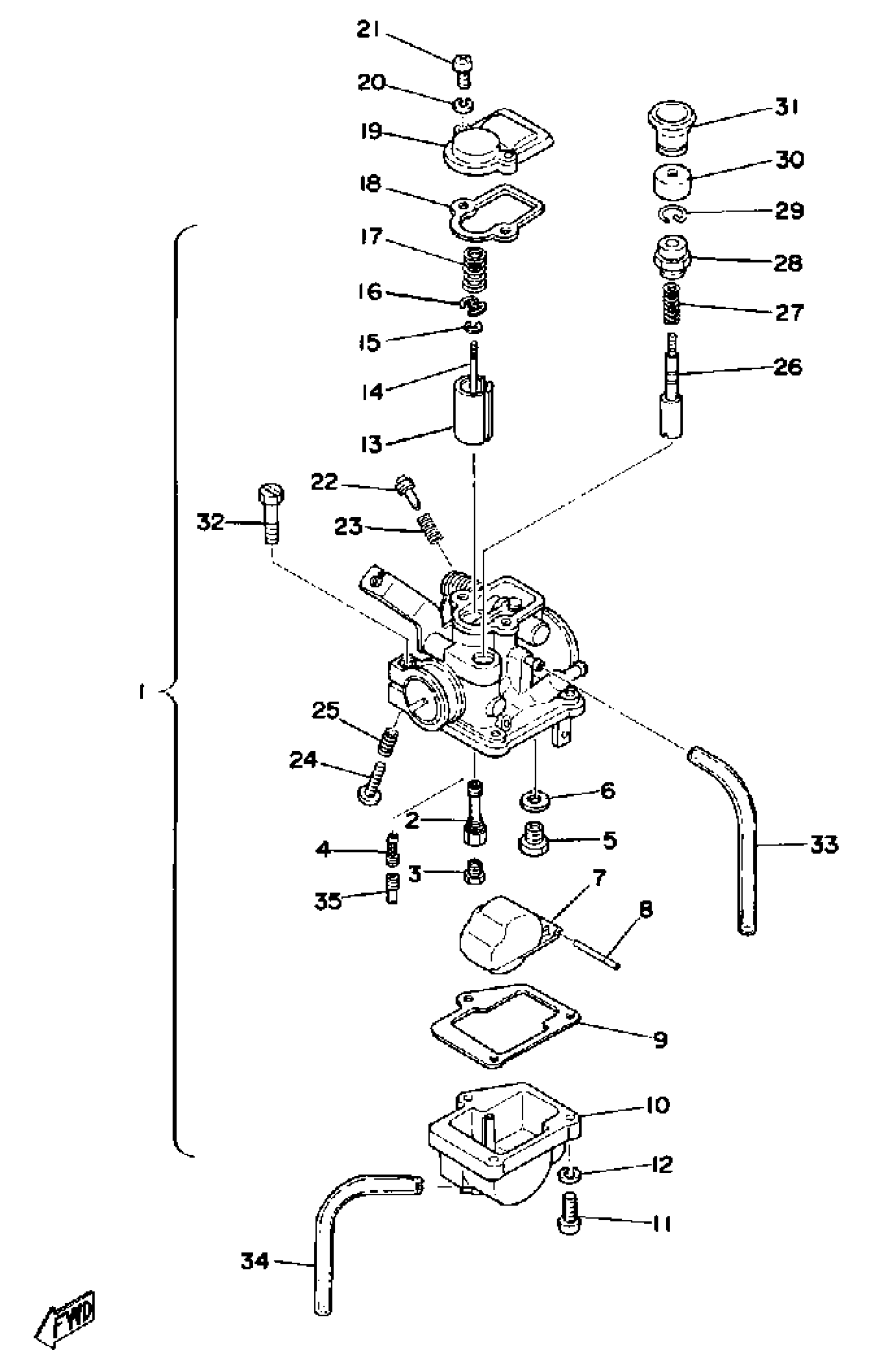

Find the part on the Carburetor diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

1M6-14101-00-00

1
Out of stock

2

NOZZLE, MAIN

(127-14141-16-00)

1
Out of stock

3

. JET, MAIN #95

127-14143-19-00

1
Out of stock

3

JET, MAIN (NO.100)

127-14143-20-00

1
Out of stock

3

. JET, MAIN #105

127-14143-21-00

1
Out of stock

4

JET, PILOT (# 20)

193-14142-20-00

1
Out of stock

5

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

1

$48.30

In stock

6

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

7

FLOAT

(439-14185-00-00)

1
Out of stock

8

. PIN, FLOAT

439-14186-00-00

1

$12.49

In stock

9

GASKET, FLOAT CHAMBER

439-14184-00-00

1
Out of stock

10

BODY, FLOAT CHMBR 1

(439-14181-00-00)

1
Out of stock

11

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

VALVE, THROTTLE 1

(1F5-14112-30-00)

1
Out of stock

14

NEEDLE

127-14116-09-00

—
Out of stock

15

CLIP

127-14137-00-00

—

$5.11

In stock

16

. SEAT, SPRING

439-14136-01-00

1
Out of stock

17

SPRING, THRTL VALVE

(439-14131-00-00)

1
Out of stock

18

GASKET, TOP MIXING CHAMBER

439-14198-01-00

—
Out of stock

19

TOP, MIXING CHAMBER

(439-14158-00-00)

1
Out of stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

21

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

22

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

1
Out of stock

23

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

24

SCREW, THRTL STOP

(1M3-14121-00-00)

1
Out of stock

25

. SPRING, THROTTLE STOP (#375)

620-14133-00-00

1
Out of stock

26

PLUNGER, STARTER

(1M3-14171-00-00)

1
Out of stock

27

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

28

CAP, PLUNGER

152-14174-00-00

—

$28.48

In stock

29

CLIP, PLUNGER

353-14138-00-00

—

$5.23

In stock

30

. COVER, PLUNGER

3A3-14173-00-00

1
Out of stock

31

HOLDER

304-14261-00-00

—

$35.95

In stock

32

BOLT, HEXAGON (97201-05025)

97301-05025-00

1
Out of stock

33

PIPE, AIRVENT

(440-14197-00-00)

1
Out of stock

34

PIPE, OVERFLOW

(353-14196-00-00)

1
Out of stock

35

PIPE

(1M3-14148-00-00)

1
Out of stock
