1980 Yamaha LB50P (LB50PG) Seat LB50PG Diagram

← All diagrams

Find the part on the Seat LB50PG diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

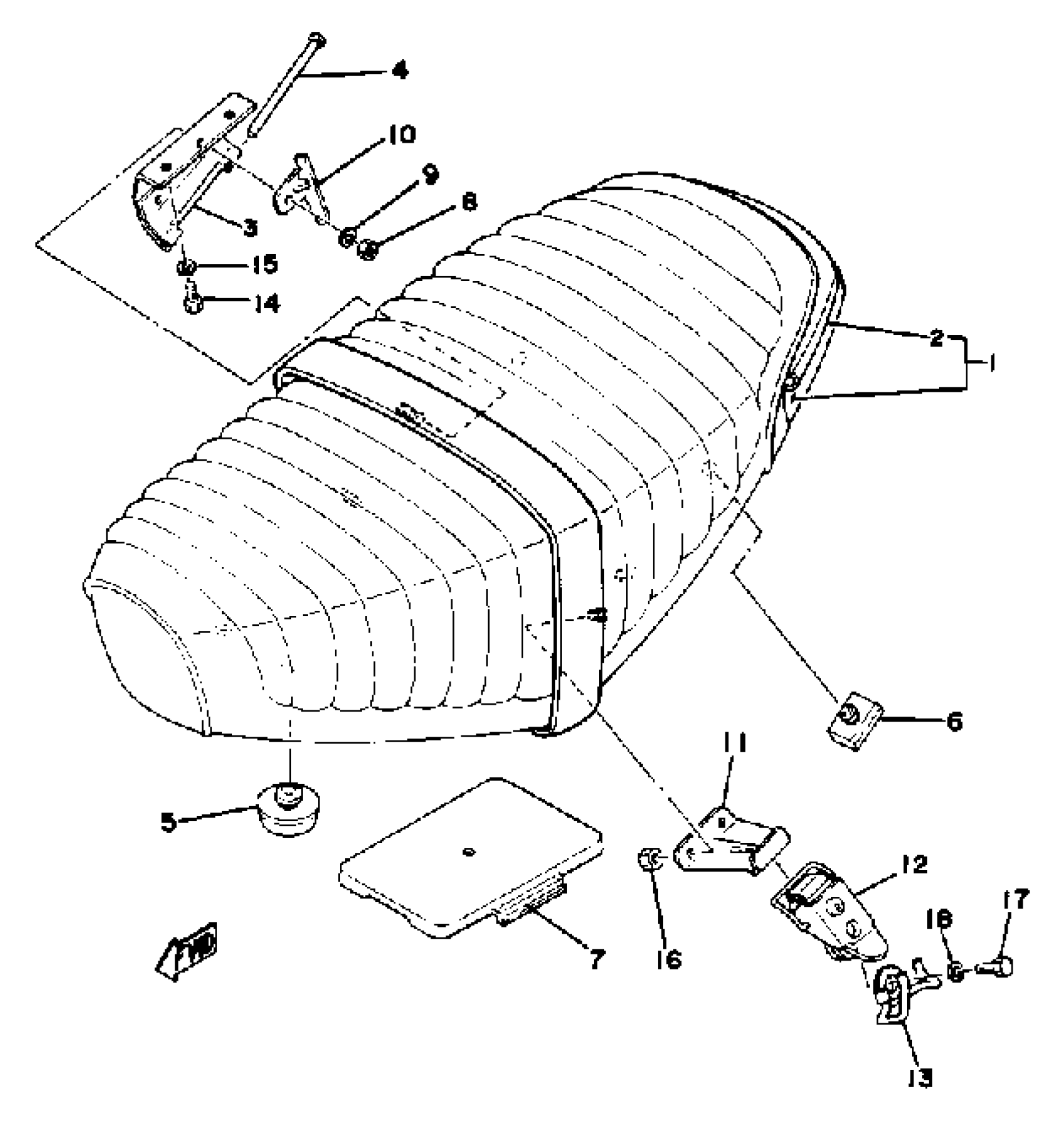

1980 Yamaha LB50P (LB50PG) Seat LB50PG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

1L4-W2471-01-00

1
Out of stock

2

. COVER, SINGLE SEAT

1L4-24711-01-00

1
Out of stock

3

HINGE, SEAT

(561-24726-00-00)

1
Out of stock

4

PIN

1K8-24774-00-00

1
Out of stock

5

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

6

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

7

LID

395-28185-00-00

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

STOPPER

(561-24768-02-00)

1
Out of stock

11

BRACKET, SEAT

(1F1-24728-00-00)

1
Out of stock

12

SEAT LEVER ASSY

1K8-24705-00-00

—

$77.71

In stock

13

HOOK, HELMET

341-24818-02-00

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
