1980 Yamaha LB50P (LB50PG) Frame - Tool LB50PG Diagram

← All diagrams

Find the part on the Frame - Tool LB50PG diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

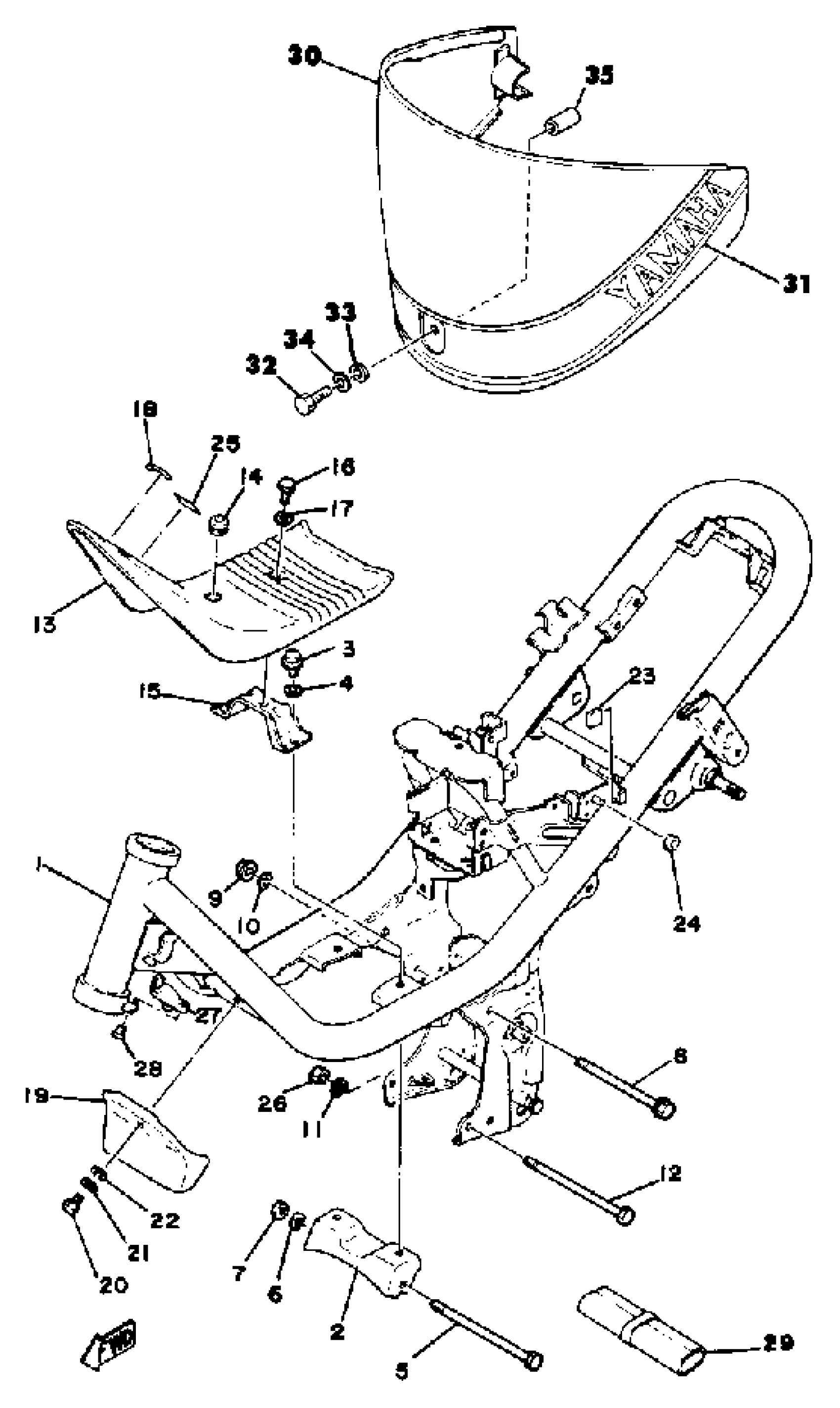

1980 Yamaha LB50P (LB50PG) Frame - Tool LB50PG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1F1-21110-02-29)

1
Out of stock

2

STAY, REAR UPPER

(439-21421-00-00)

1
Out of stock

3

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BOLT

90109-08386-00

—
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT, HEXAGON (509)

90170-08158-00

1

$1.10

In stock

8

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

9

NUT, FLANGE

95704-08500-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT (5A6)

90101-08538-00

1

$7.00

In stock

13

COVER,LOWER

439-28385-01-00

1
Out of stock

14

GROMMET(52W)

90480-21436-00

—
Out of stock

15

STAY, LEG SHIELD L

439-28321-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, PLATE

90201-06M08-00

1
Out of stock

18

EMBLEM

1F7-28328-00-00

1
Out of stock

19

GUARD, MUD

439-21629-00-00

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

DAMPER, SEAT

561-24723-01-00

1
Out of stock

24

GROMMET

90480-10178-00

1
Out of stock

25

EMBLEM

(542-28338-00-00)

1
Out of stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

STEERING LOCK ASSEMBLY

(137-23480-00-00)

1
Out of stock

28

SCREW, FLAT

98707-06014-00

—
Out of stock

29

TOOL KIT

2U2-W2810-00-00

1
Out of stock

30

COVER

(561-24796-01-29)

1
Out of stock

31

EMBLEM, COVER

561-21783-00-00

—

$28.11

In stock

32

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

33

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

34

WASHER, SPRING

(90204-05001-00)

1
Out of stock

35

COLLAR(1AE)

90387-060N3-00

—

$8.74

In stock
