1980 Yamaha LB50P (LB50PG) Frame - Tool LB50PH - PJ Diagram

← All diagrams

Find the part on the Frame - Tool LB50PH - PJ diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

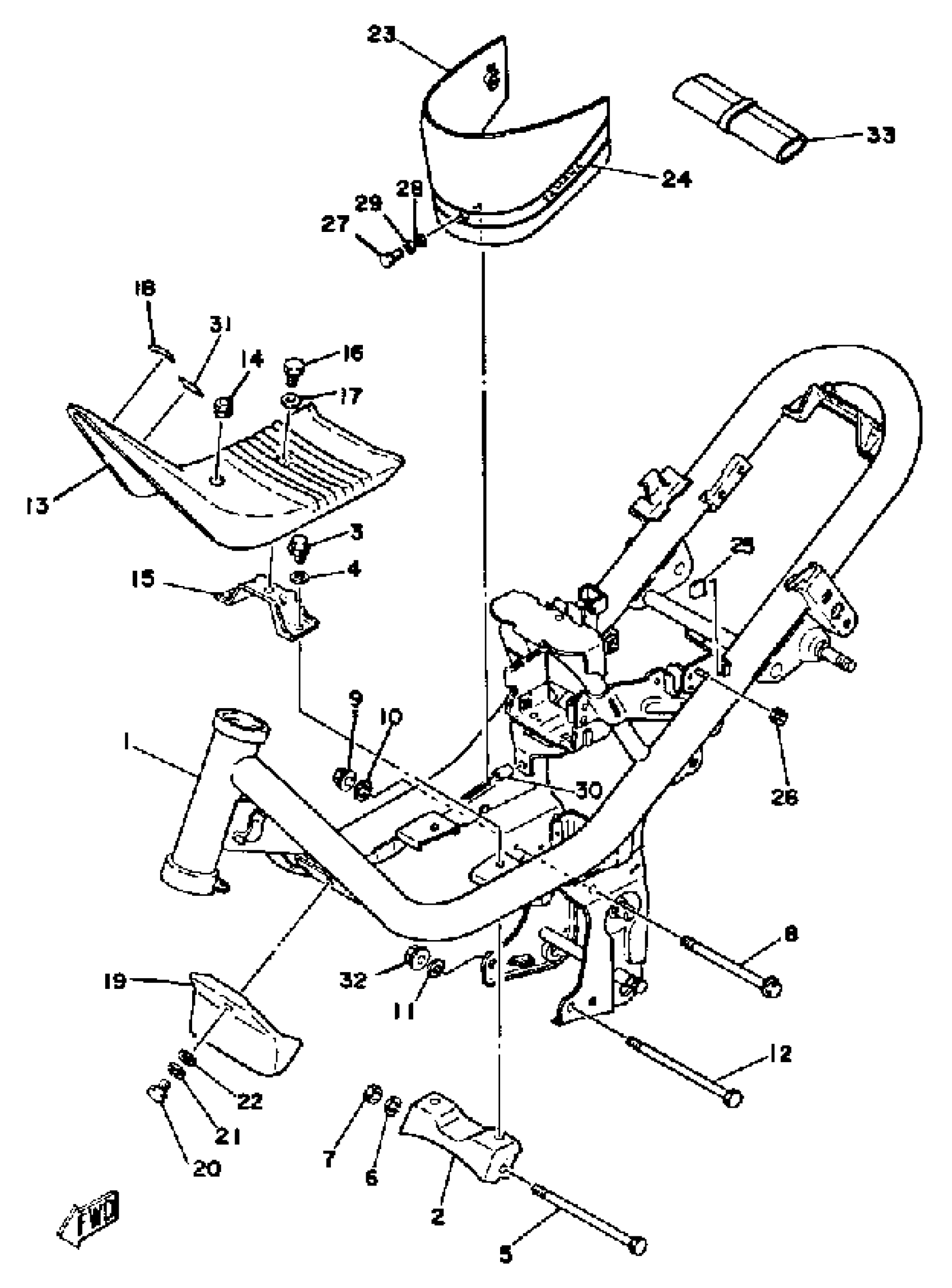

1980 Yamaha LB50P (LB50PG) Frame - Tool LB50PH - PJ Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2U7-21110-00-66)

1
Out of stock

1

FRAME

(2U7-21110-00-E1)

1
Out of stock

2

STAY, REAR UPPER

(439-21421-00-00)

1
Out of stock

3

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BOLT

90109-08386-00

—
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT, HEXAGON (509)

90170-08158-00

1

$1.10

In stock

8

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

9

NUT, FLANGE

95704-08500-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT (5A6)

90101-08538-00

1

$7.00

In stock

13

COVER,LOWER

439-28385-01-00

1
Out of stock

14

GROMMET(52W)

90480-21436-00

—
Out of stock

15

STAY, LEG SHIELD L

439-28321-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, PLATE

90201-06M08-00

1
Out of stock

18

EMBLEM

1F7-28328-00-00

1
Out of stock

19

GUARD, MUD

439-21629-00-00

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

COVER

(561-24796-01-66)

1
Out of stock

23

COVER

(561-24796-01-E1)

1
Out of stock

24

EMBLEM, COVER

561-21783-00-00

—

$28.11

In stock

25

DAMPER, SEAT

561-24723-01-00

1
Out of stock

26

GROMMET

90480-10178-00

1
Out of stock

27

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

WASHER, SPRING

(90204-05001-00)

1
Out of stock

30

COLLAR(1AE)

90387-060N3-00

—

$8.74

In stock

31

EMBLEM

(542-28338-00-00)

1
Out of stock

32

NUT(6L2)

95333-08600-00

—

$3.20

In stock

33

TOOL KIT

2U2-W2810-00-00

1
Out of stock
