1980 Yamaha LB50P (LB50PG) Headlight LB50PG - PH - PJ Diagram

← All diagrams

Find the part on the Headlight LB50PG - PH - PJ diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

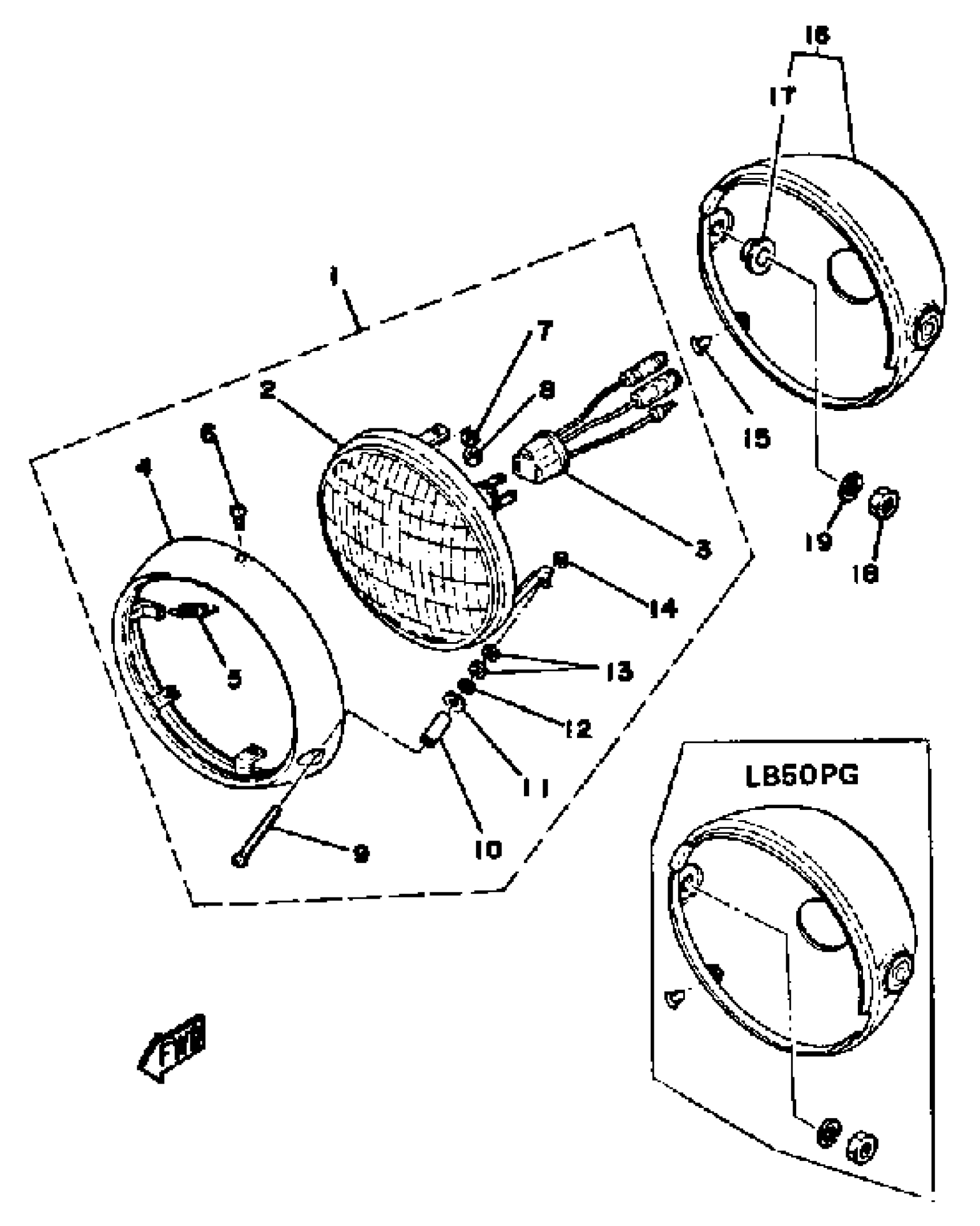

1980 Yamaha LB50P (LB50PG) Headlight LB50PG - PH - PJ Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP UNIT ASSY

388-84110-61-00

—
Out of stock

2

LENS ASSY

388-84120-61-00

1
Out of stock

3

SOCKET

371-84312-60-00

—
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

SPRING

(132-84335-60-00)

1
Out of stock

6

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

8

NUT(6L4)

95380-04700-00

—
Out of stock

9

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

10

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

11

YBS66-4 WASHER, PLAIN

92990-04200-00

1
Out of stock

12

. SPACER

132-84328-60-00

1
Out of stock

13

NUT(6L4)

95380-04700-00

—
Out of stock

14

NUT, ADJUST

198-84334-60-00

1
Out of stock

15

SCREW, OVAL HEAD (1A0)

90152-05005-00

1
Out of stock

16

BODY ASSEMBLY, HEADLIGHT

(393-84130-61-29)

1
Out of stock

16

BODY ASSEMBLY, HEADLIGHT

(393-84130-61-66)

1
Out of stock

16

BODY, HEAD LAMP

393-84130-61-E1

1
Out of stock

17

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

18

NUT(6L2)

95333-08600-00

—
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock
