1980 Yamaha LB50P (LB50PG) Handle Switch - Lever LB50PG Diagram

← All diagrams

Find the part on the Handle Switch - Lever LB50PG diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

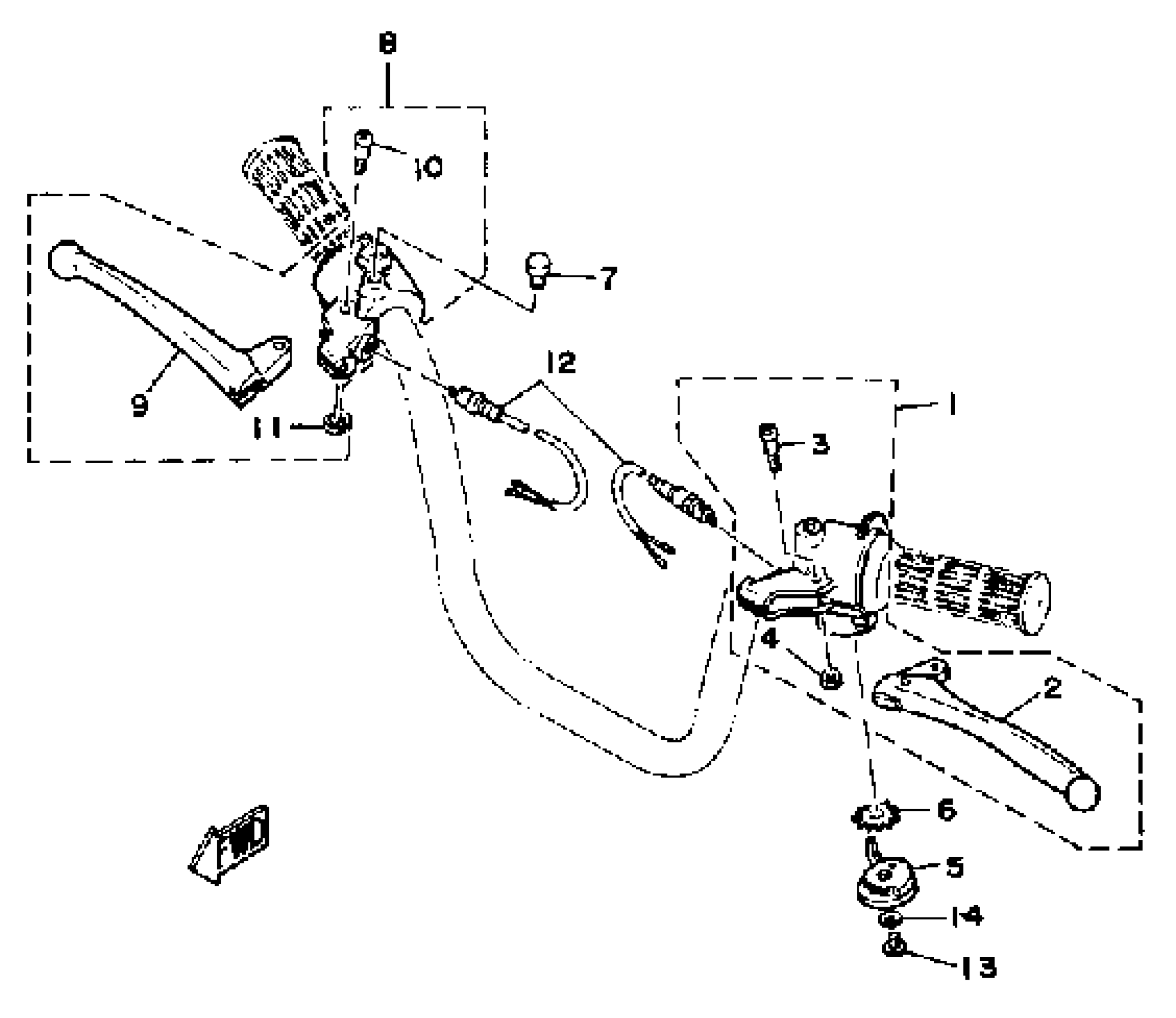

1980 Yamaha LB50P (LB50PG) Handle Switch - Lever LB50PG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSEMBLY

591-W8271-01-00

1
Out of stock

2

LEVER (L.H)

137-83912-02-38

—

$23.55

In stock

3

SCREW (1E2)

90149-05120-00

1

$6.58

In stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

LEVER, STARTER

3LA-83941-00-00

—

$7.49

In stock

6

WASHER (357)

90209-10131-00

1

$7.94

In stock

7

PLUG (17J)

90338-07124-00

1

$8.55

In stock

8

LEVER HOLDER ASSEMBLY R

542-W8292-01-00

1
Out of stock

9

LEVER (R.H)

2N3-83922-00-00

1

$26.28

In stock

10

SCREW (1L4)

90149-05121-00

—
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

13

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
