1978 Yamaha LB50P (LB50PE) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

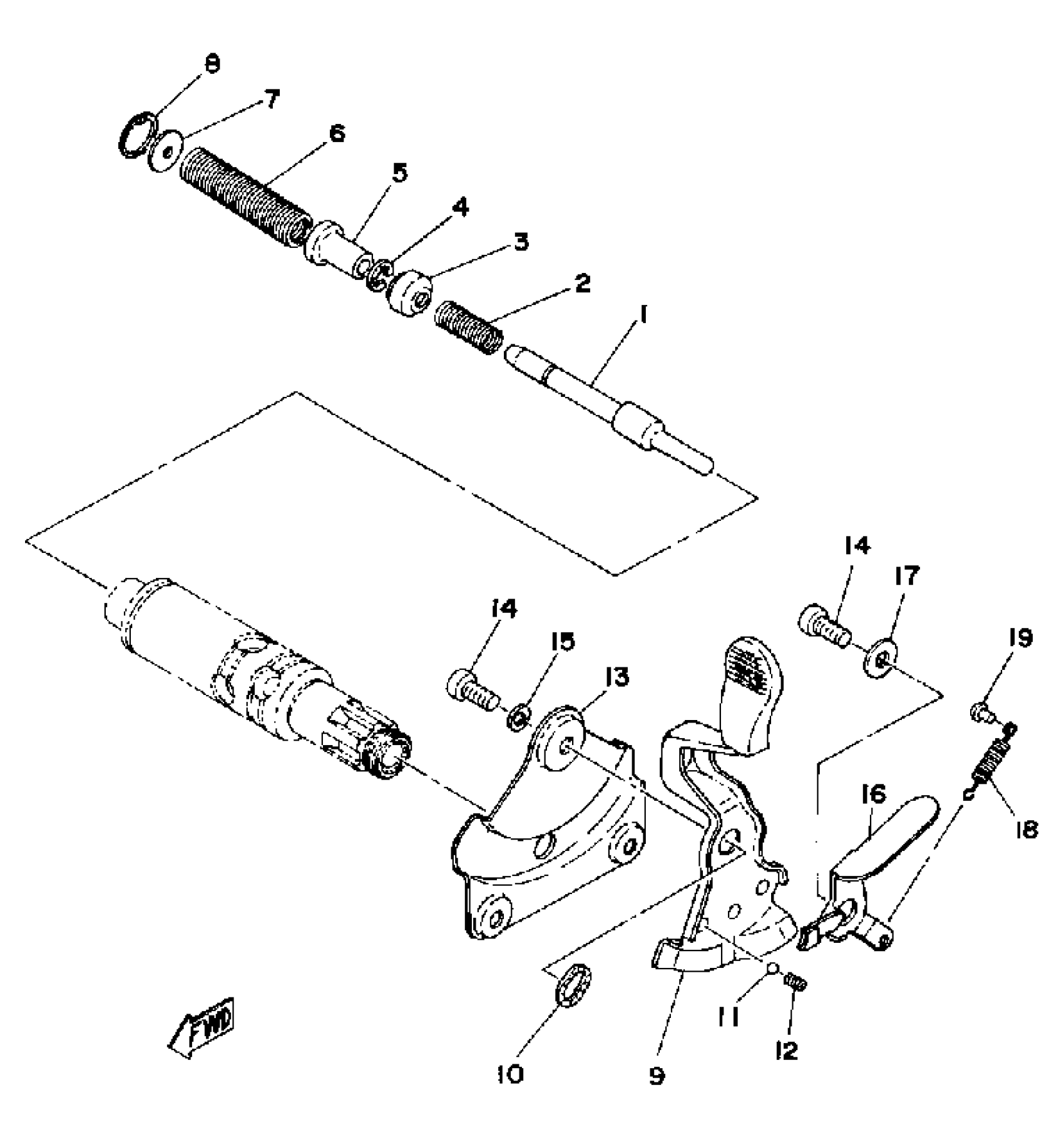

1978 Yamaha LB50P (LB50PE) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD, SHIFTER

384-18411-03-00

1

$23.20

In stock

2

SPRING, DAMPER (384)

90501-08183-00

1

$2.49

In stock

3

HEAD, SHIFTER

234-18412-00-00

—

$31.40

In stock

4

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

5

RETAINER, SPRING

384-18473-01-00

1
Out of stock

6

SPRING, SHIFT (384)

90501-12198-00

—

$2.78

In stock

7

WASHER, SPEC''L SHAP

90209-01134-00

1
Out of stock

8

CIRCLIP

99009-15500-00

1

$9.15

In stock

9

LEVER, SHIFT

439-18451-02-00

—

$70.69

In stock

10

WASHER, WAVE

90206-10036-00

1

$5.63

In stock

11

BALL (12R)

93507-32031-00

1
Out of stock

12

SPRING, COMPRESSION

90501-09197-00

1
Out of stock

13

SEAL, DUST

384-18428-00-00

1
Out of stock

14

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

LEVER, STOPPER

439-18148-01-00

1
Out of stock

17

. WASHER, PLATE

90201-06050-00

1
Out of stock

18

SPRING TENSION 257163450000

90506-07066-00

—
Out of stock

19

HOOK, SPRING

132-16346-00-00

—
Out of stock
