1999 Kawasaki Lakota 300 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

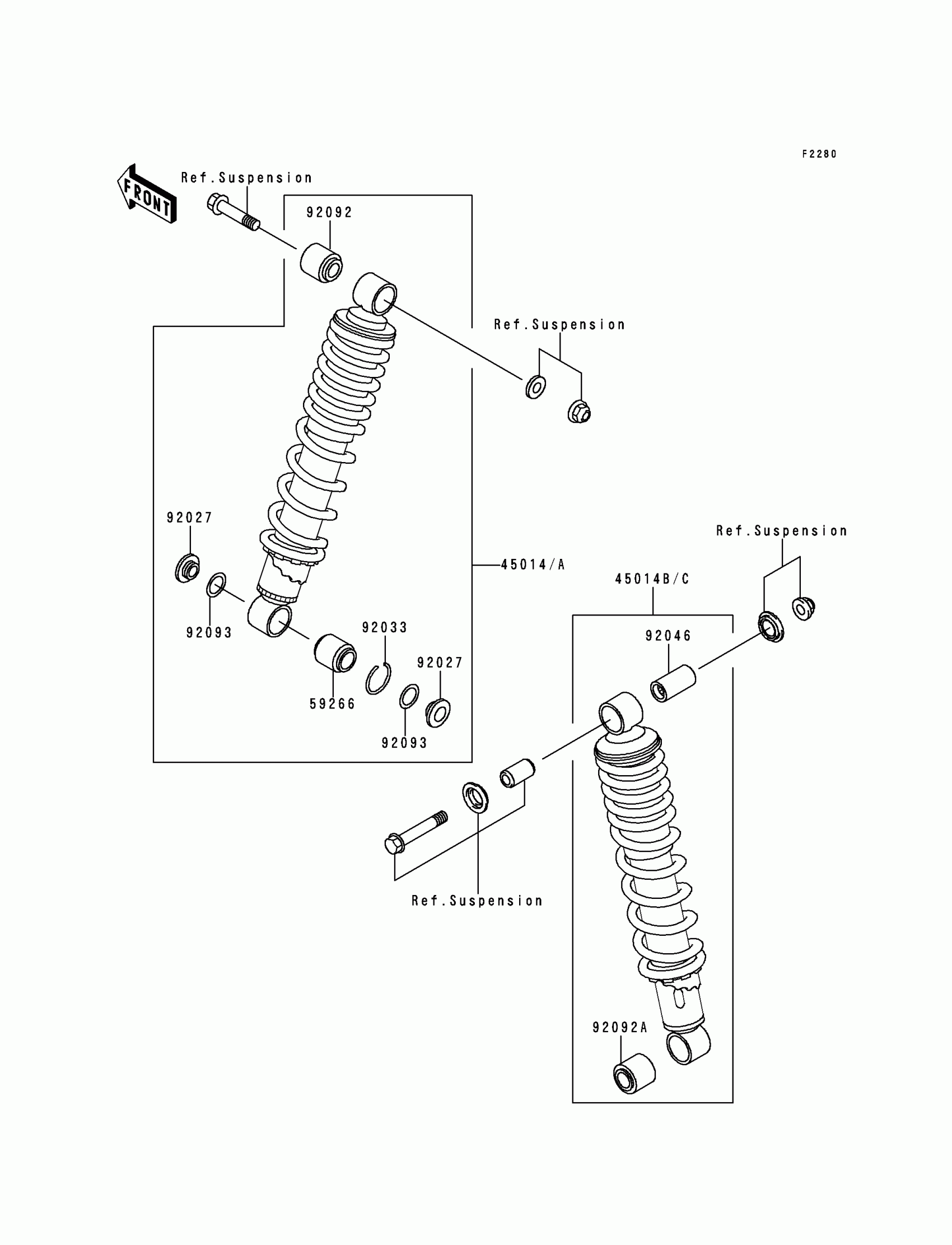

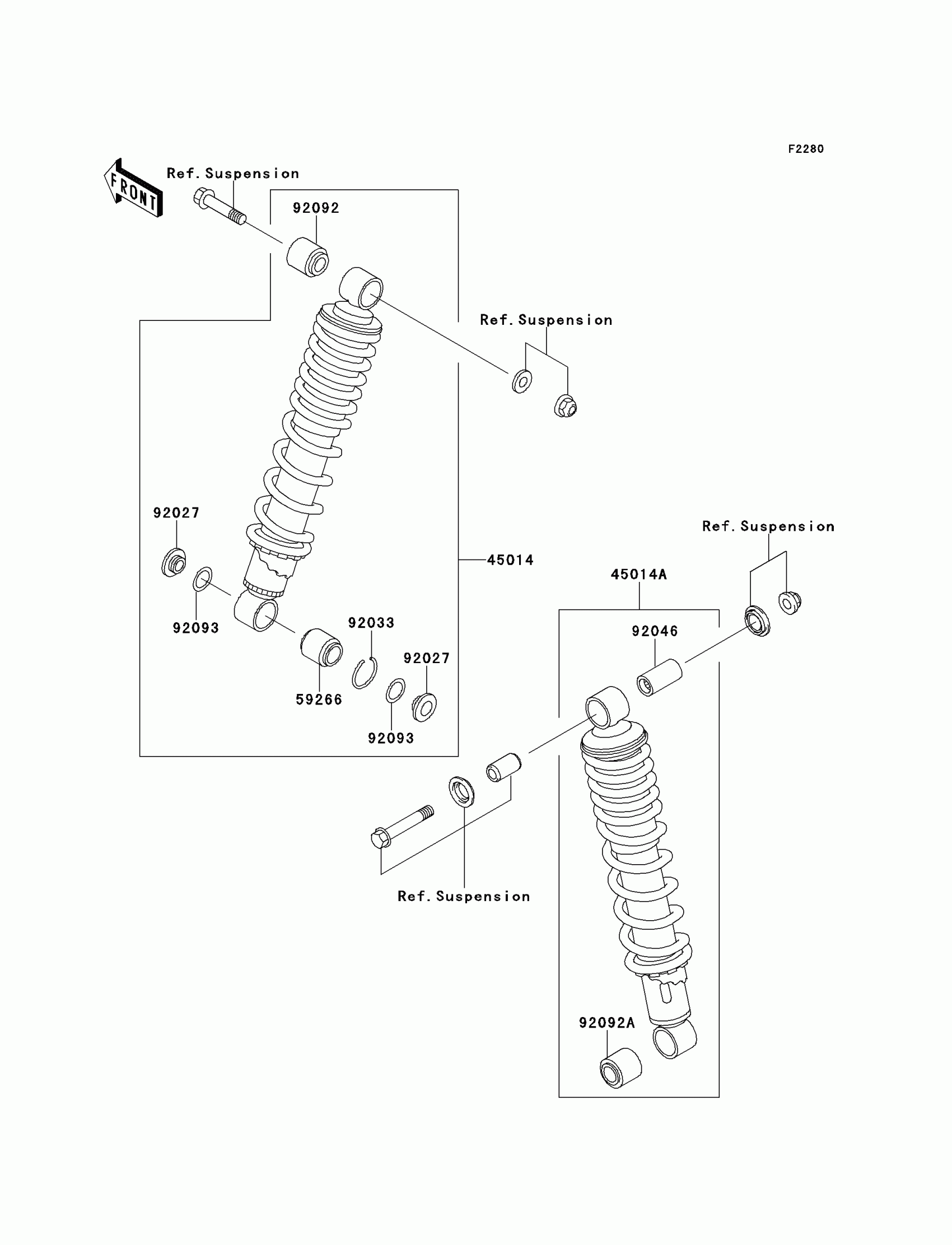

1999 Kawasaki Lakota 300 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,FR,F.RED

45014-1391-CD

1
Out of stock

45014B

SHOCKABSORBER,RR,F.RED

45014-1392-CD

1
Out of stock

59266

JOINT-BALL

59266-1053

1
Out of stock

92027

COLLAR

92027-1862

1
Out of stock

92033

RING-SNAP

92033-1090

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1
Out of stock

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

1
Out of stock

92092A

BUSHING-RUBBER,SHOCKABSORBER

92092-1054

1
Out of stock

92093

SEAL

92093-1183

1
Out of stock
← Rear HUB Suspension →
