1999 Kawasaki Lakota 300 Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

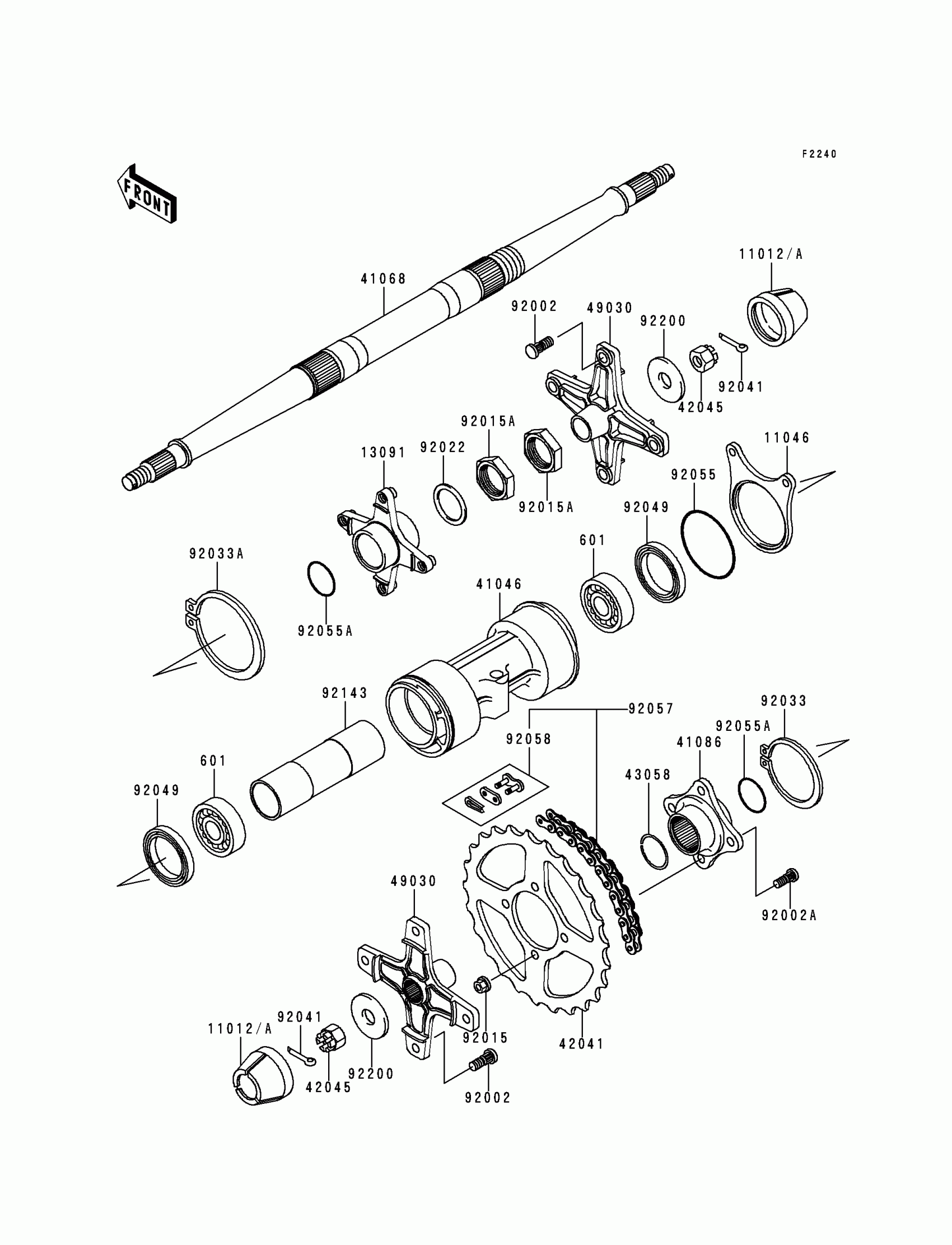

1999 Kawasaki Lakota 300 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6008UU

601A6008UU

1
Out of stock

11012A

CAP,WHEEL

11012-1969

1
Out of stock

11046

BRACKET,CALIPER

11046-1062

1
Out of stock

13091

HOLDER,DISC PLATE

13091-1449

1
Out of stock

41046

HOUSING-BEARING

41046-1086

1
Out of stock

41068

AXLE,RR

41068-1235

1
Out of stock

41086

FLANGE,REAR SPROCKET

41086-1070

1
Out of stock

42041

SPROCKET-HUB,43T

42041-1433

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

43058

RING,SNAP

43058-1060

1
Out of stock

49030

HUB,RR

49030-1078

1
Out of stock

92002

BOLT,10X30

92002-1388

1
Out of stock

92002A

BOLT,10MM

92002-1459

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92015A

NUT,LOCK,37MM

92015-1545

1
Out of stock

92022

WASHER,37.5X48X2.3

92022-1746

1
Out of stock

92033

RING-SNAP,95MM

92033-1216

1
Out of stock

92033A

RING-SNAP,75MM

92033-1217

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92049

SEAL-OIL

92049-1237

1
Out of stock

92055

RING-O,76MM

92055-1213

1
Out of stock

92055A

RING-O,38MM

92055-1317

1
Out of stock

92057

CHAIN,DRIVE,EK520SR-O2X100L

92057-1393

1
Out of stock

92058

JOINT-CHAIN,DRIVE,EK520SR-O2

92058-1060

1
Out of stock

92143

COLLAR,L=159

92143-1036

1
Out of stock

92200

WASHER,18.5X52X4.5

92200-1139

1
Out of stock
