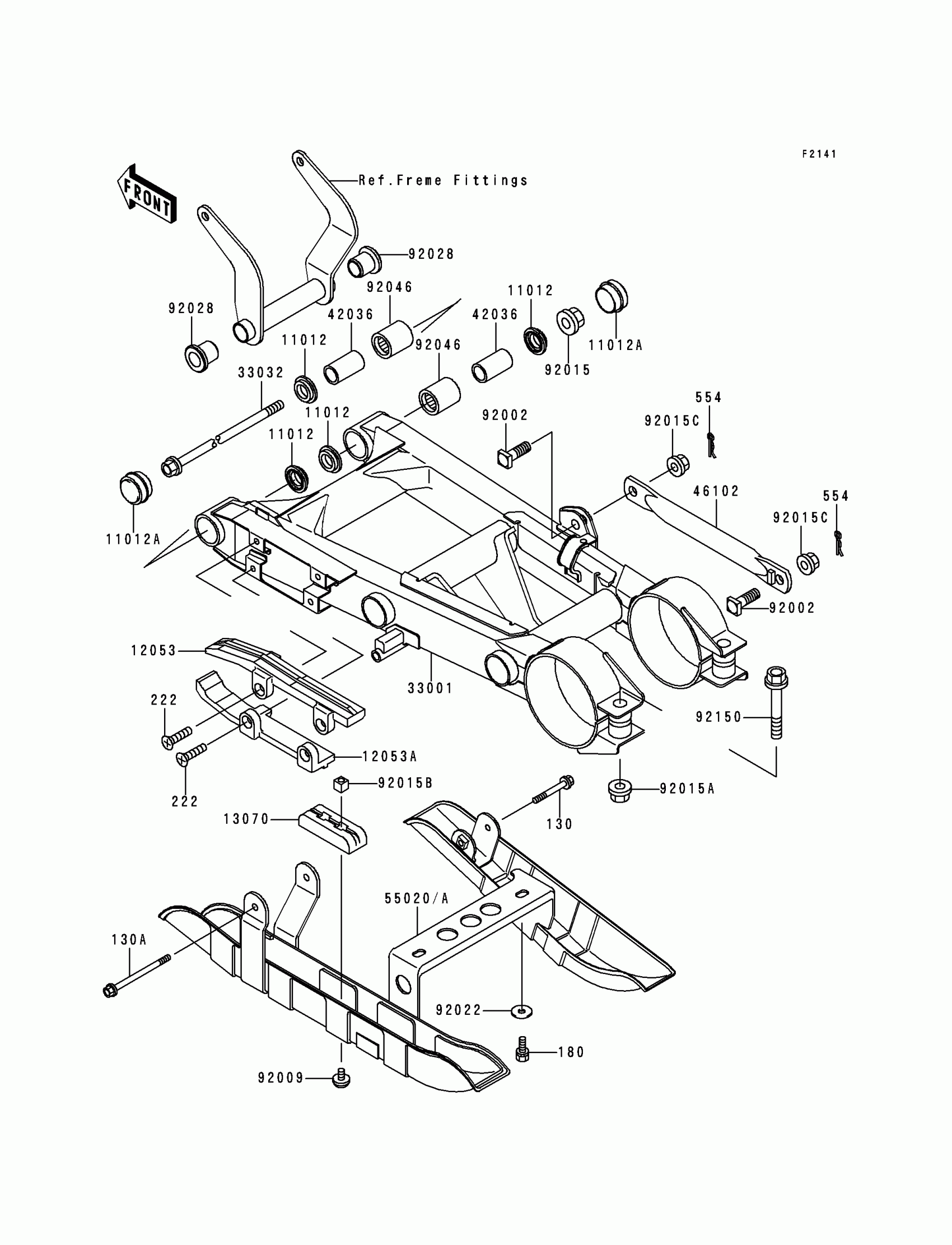

Kawasaki Lakota 300 Swingarm Diagram

#

Description
Price

130

BOLT-FLANGED,6X40

130G0640

Unavailable

130A

BOLT-FLANGED

130G0680

Unavailable

180

BOLT-UPSET-WS,6X14

180G0614

$1.00

222

SCREW-CSK-RD-CROS,6X12

222B0612

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

11012

CAP,SWING ARM

11012-1259

$17.61

11012A

CAP,SWING ARM

11012-1520

$9.10

12053

GUIDE-CHAIN,UPP

12053-1194

Unavailable

12053A

GUIDE-CHAIN,LWR

12053-1195

Unavailable

13070

GUIDE,CHAIN

13070-1156

Unavailable

33001

ARM-COMP-SWING,SILVER NO.40

33001-1462-5A

Unavailable

33032

SHAFT-SWING ARM

33032-1139

$92.86

42036

SLEEVE,SWING ARM

42036-1064

$19.97

46102

ROD,TORQUE,SILVER NO.40

46102-1342-5A

Unavailable

55020A

GUARD,CHAIN&DICS,SILVER

55020-1583-5A

Unavailable

92002

BOLT,10X28

92002-1733

$9.71

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,12MM

92015-1426

$5.61

92015B

NUT,6MM

92015-1452

Unavailable

92015C

NUT,LOCK,10MM

92015-1597

$4.18

92022

WASHER,6.5X20X1.6

92022-1804

$1.08

92028

BUSHING,SWING ARM

92028-1261

$16.31

92046

BEARING-NEEDLE

92046-1128

$21.08

92150

BOLT,FLANGED,12X62

92150-1842

Unavailable
