1977 Kawasaki KZ900-A5 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

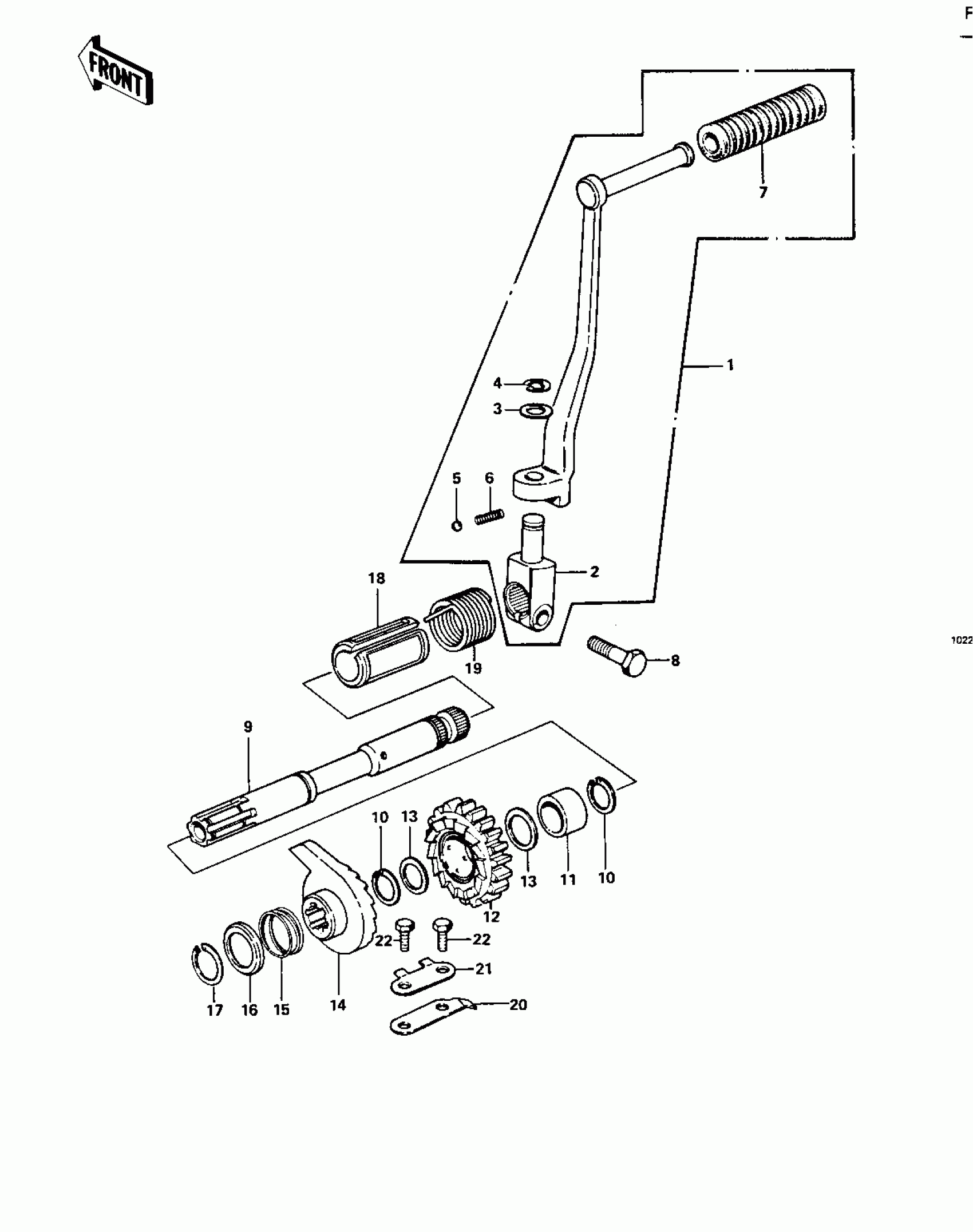

1977 Kawasaki KZ900-A5 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL,KICKSTARTER

13058-044

Out of stock

2

BOSS-KICK PEDAL

13061-017

Out of stock

3

WASHER BRAKE PEDAL

92022-085

Out of stock

4

CIRCLIP-TYPE-E,10MM

482J0100

Out of stock

5

BALL-STEEL,1/4

600A0800

Out of stock

6

SPRING,KICK PEDAL

92081-020

Out of stock

7

DAMPER,KICK PEDAL

13063-004

Out of stock

8

BOLT-HEX HEAD,10X25

114B1025

Out of stock

9

SHAFT,KICKSTARTER

13066-029

Out of stock

10

RING-SNAP,20X25.5X1.2

92033-025

Out of stock

11

COLLAR,KICKSHAFT

92028-126

Out of stock

12

GEAR,KICKSTARTER 19T

13068-028

Out of stock

13

WASHER,PLAIN,22MM

92022-207

Out of stock

14

RATCHET,KICK SHAFT

13078-006

Out of stock

15

SPRING RATCHET

92081-104

Out of stock

16

CAP,KICKSTARTER

92102-008

Out of stock

17

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

18

GUID,KICK SHAFT

13070-005

Out of stock

19

SPRING,KICKSTARTER

92082-004

Out of stock

20

STOPPER,KICKSTARTER

13072-012

Out of stock

21

WASHER-LOCK

92024-036

Out of stock

22

BOLT-UPSET 6X14

112B0614

Out of stock
