1977 Kawasaki KZ900-A5 Crankcase Bolt & Stud Pattern Diagram

← All diagrams

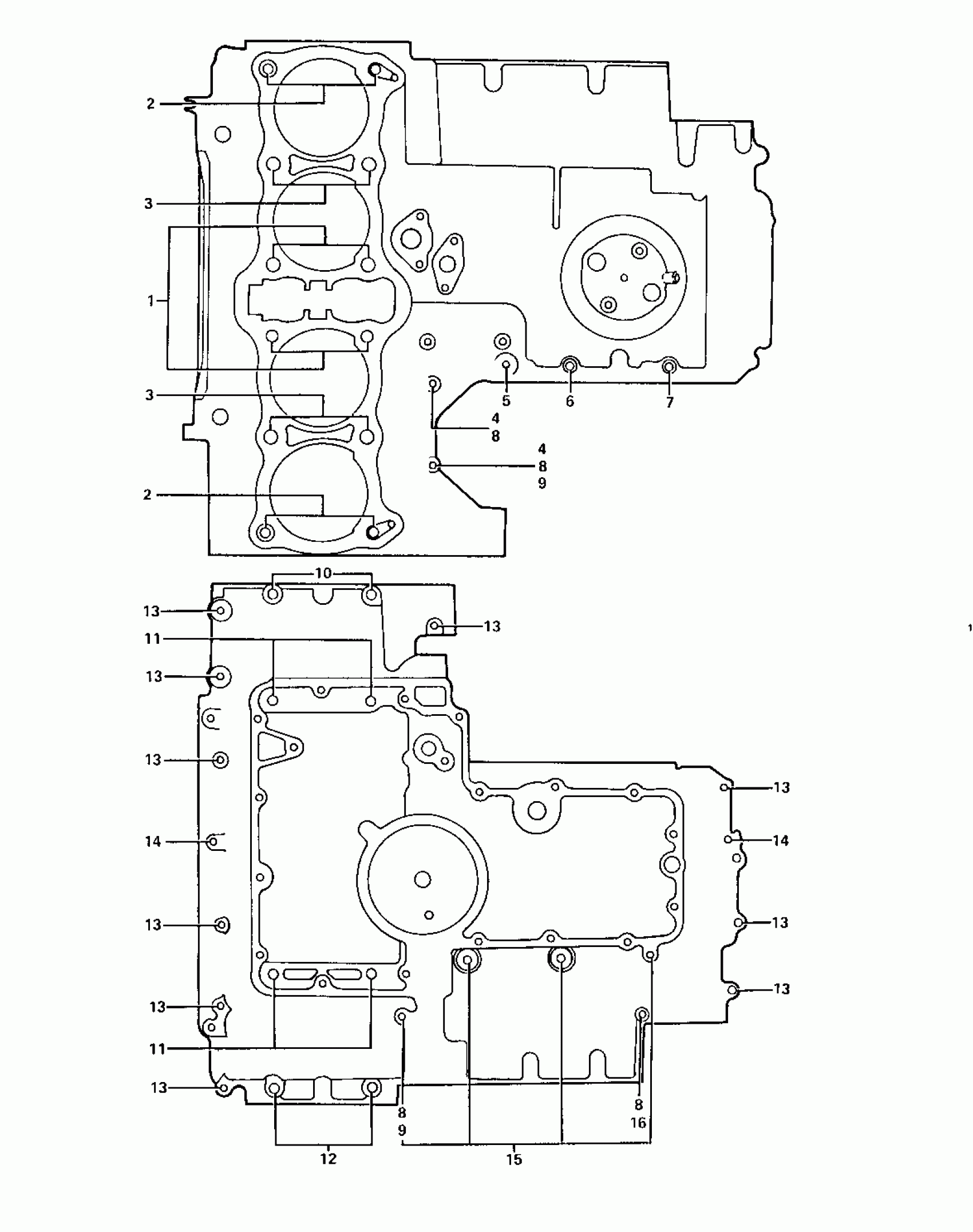

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ900-A5 Crankcase Bolt & Stud Pattern Diagram

#

Description
Price
Status
Order Qty

1

STUD,10X133

92004-1004

Out of stock

1

STUD,10X133

92004-1004

Out of stock

2

STUD,10X158

92004-1003

Out of stock

2

STUD,10X158

92004-1003

Out of stock

3

STUD,10X167

92004-1002

Out of stock

3

STUD,10X167

92004-1002

Out of stock

4

BOLT,HEX HEAD,6X41

92003-109

Out of stock

5

BOLT,HEX HEAD,6X54

92003-110

Out of stock

6

BOLT,HEX HEAD,6X99

92003-111

Out of stock

7

BOLT,HEX HEAD,6X116

92003-113

Out of stock

8

$3.75

In stock

9

$1.19

In stock

10

BOLT-FLANGED,8X95

92003-106

Out of stock

11

BOLT,HEX HEAD,8X72

92003-107

Out of stock

12

BOLT,HEX HEAD,8X81

92003-108

Out of stock

13

BOLT,HEX HEAD,6X41

92003-109

Out of stock

14

BOLT,HEX HEAD,6X54

92003-110

Out of stock

15

BOLT-FLANGED,6X94

92003-112

Out of stock

16

BOLT-FLANGED,6X72

92003-114

Out of stock
