1977 Kawasaki KZ900-A5 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

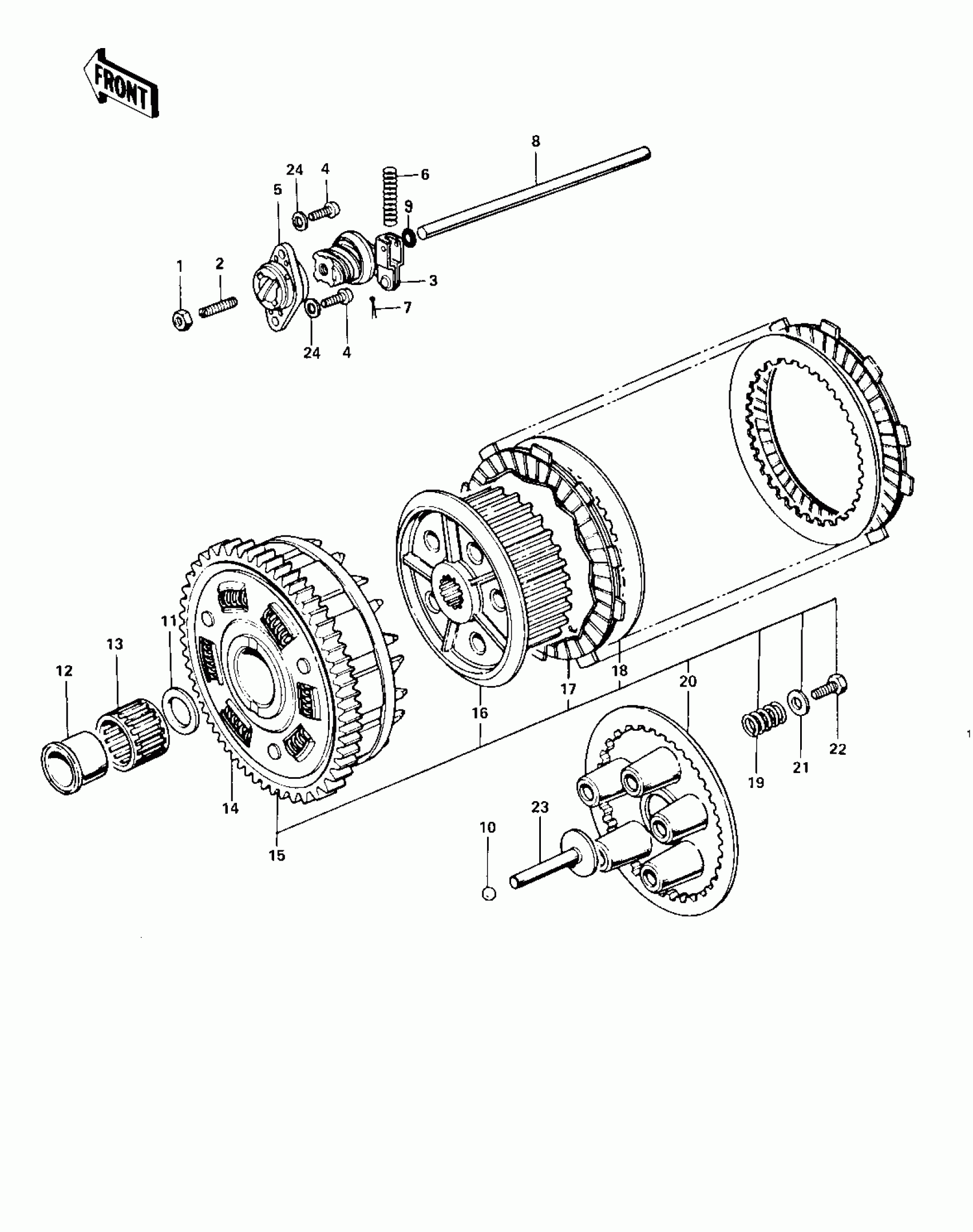

1977 Kawasaki KZ900-A5 Clutch Diagram

#

Description
Price
Status
Order Qty

1

NUT 8MM

315B0800

$0.69

In stock

2

SCREW,SLOTTED,8X25

92014-014

Out of stock

3

INNER,CLUTCH RELEASE

13102-013

Out of stock

4

SCREW-PAN-CROS,6X16

220B0616

Out of stock

5

OUTER,CLUTCH RELEASE

13118-007

Out of stock

6

$5.98

In stock

7

$2.08

In stock

8

PUSH ROD,CLUTCH

13116-021

Out of stock

9

O RING,7MM

670B1507

$1.14

In stock

10

BALL-STEEL,3/8"

600A1200

$1.32

In stock

11

SPACER,25.5X47X2.5

92026-022

Out of stock

12

BUSHING,CLUTCH

92028-135

Out of stock

13

$19.92

In stock

14

CLUTCH-ASSY

13095-036

Out of stock

15

CLUTCH-ASSY

13081-045

Out of stock

16

CLUTCH-ASSY

13087-031

Out of stock

17

$24.04

In stock

18

PLATE,CLUTCH STEEL

13089-022

Out of stock

19

SPRING,CLUTCH

92081-1033

$5.88

In stock

19

SPRING,CLUTCH

92081-1033

$5.88

In stock

20

PLATE,CLUTCH SPRING

13187-006

Out of stock

21

$5.27

In stock

22

BOLT-UPSET

116G0618

Out of stock

23

PUSHER,CLUTCH SPRG P

13116-022

Out of stock

24

WASHER PLAIN 6MM

411B0600

Out of stock
