1977 Kawasaki KZ900-A5 Fuel Tank Diagram

← All diagrams

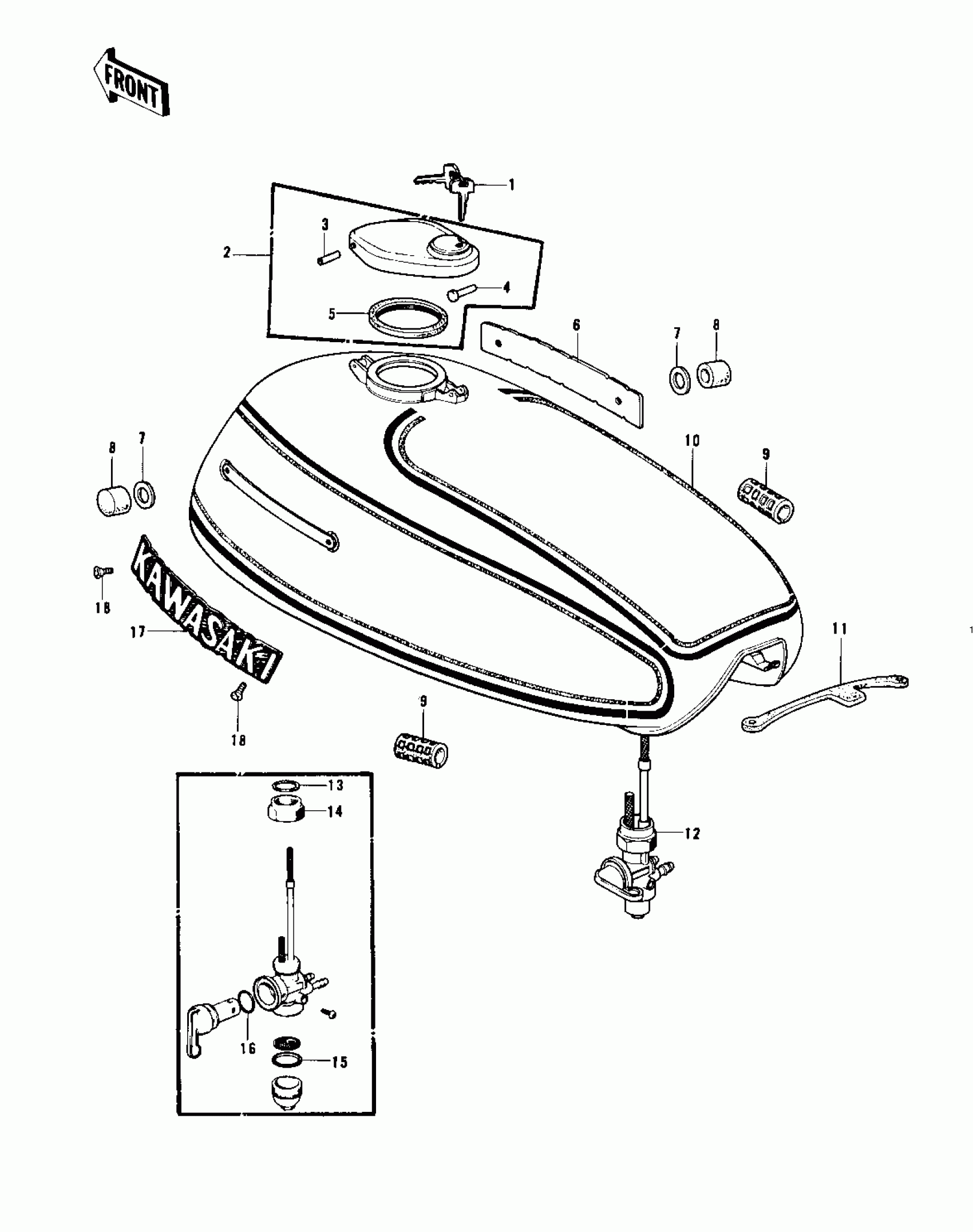

Find the part on the Fuel Tank diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ900-A5 Fuel Tank Diagram

#

Description
Price
Status
Order Qty

2

CAP,FUEL TANK

51048-012

Out of stock

3

PIN,CAP HINGE

92043-127

Out of stock

4

PIN,HOOK

92043-126

Out of stock

5

GASKET-FUEL TANK CAP

51059-008

Out of stock

6

EMBLEM,FUEL TANK

56014-064

Out of stock

7

WASHER,10.5X26X2.3

92022-044

Out of stock

8

DAMPER,FUEL TANK

92075-125

Out of stock

9

DAMPER,FUEL TANK

92075-084

Out of stock

10

TANK-FUEL,D.GREEN

51001-107-3M

Out of stock

10

TANK-FUEL,BROWN

51001-107-3N

Out of stock

11

BAND,FUEL TANK

92072-042

Out of stock

12

FUEL COCK ASSY

51023-055

Out of stock

12

FUEL COCK ASSY

51023-055

Out of stock

13

GASKET-FUEL COCK JNT.

92065-081

Out of stock

14

FUEL COCK JOINT NUT

51035-009

Out of stock

15

GASKET FUEL COCK CUP

51037-010

Out of stock

16

O RING,14MM

670B2014

Out of stock

17

EMBLEM,FUEL TANK

56013-057

Out of stock

18

SCREW-CSK-CROS

92012-003

Out of stock
