1977 Kawasaki KZ900-A5 Transmission/change Drum Diagram

← All diagrams

Find the part on the Transmission/change Drum diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

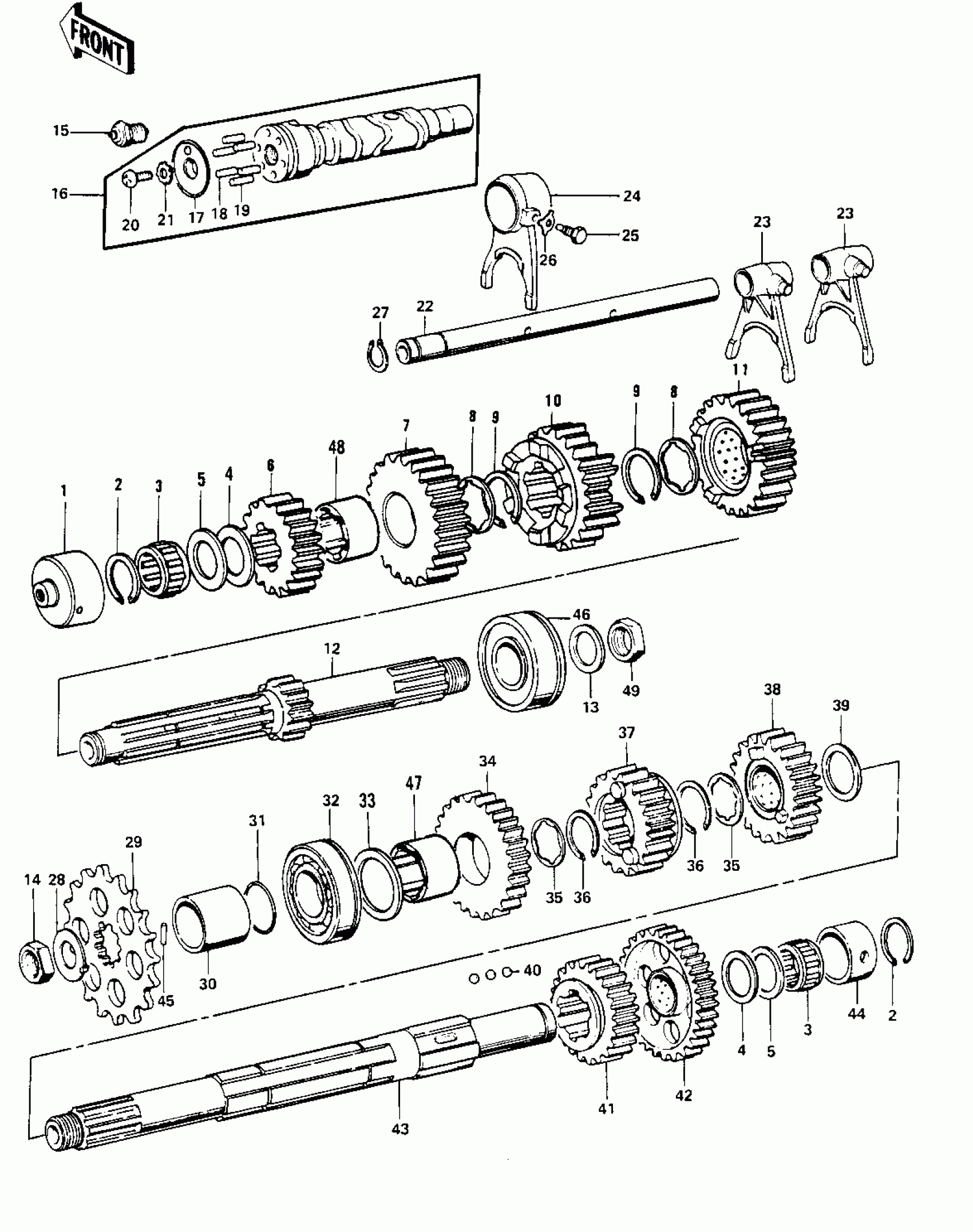

1977 Kawasaki KZ900-A5 Transmission/change Drum Diagram

#

Description
Price
Status
Order Qty

1

BUSH,DRIVE SHAFT

92028-122

Out of stock

2

RING-SNAP,20X25.5X1.2

92033-025

Out of stock

3

BEARING-NEEDLE,FWF-223014

92046-031

Out of stock

4

WASHER, THRUST

92022-211

Out of stock

5

WASHER,22.3X35X1.6

92022-212

Out of stock

5

WASHER,22.3X35X1.2

92022-213

Out of stock

6

2ND GER,DRIVE SHAFT

13130-032

Out of stock

7

TOP GEAR,DRIVE SHAFT

13136-042

Out of stock

8

WASHER,TOOTHED,26X35.5X1.5

92024-042

Out of stock

9

CIRCLIP-TYPE-C,28MM

480J2800

Out of stock

10

3RD GEAR,DRIVE SHAFT

13132-030

Out of stock

11

4TH GEAR,DRIVE SHAFT

13134-016

Out of stock

12

SHAFT,DRIVE 12T

13127-042

Out of stock

13

WASHER

92125-002

Out of stock

14

NUT,20MM

92016-043

Out of stock

15

SWITCH-COMP

13151-5003

Out of stock

15

SWITCH-COMP

13151-5003

Out of stock

16

DRUM ASSY,GEAR CHANG

13239-1010

Out of stock

16

DRUM ASSY,GEAR CHANG

13239-1010

Out of stock

17

PLATE,GEAR CHNG DRUM

13142-013

Out of stock

18

PIN,DOWEL,4X17.8

92042-020

Out of stock

19

PIN,DOWEL,4X15.8

92042-014

Out of stock

20

SCREW PAN HEAD 6X12

220B0612

Out of stock

21

WASHER LOCK 6MM

464G0600

Out of stock

22

ROD,SHIFT

13209-011

Out of stock

23

FORK,SELECTOR,4TH&TOP

13140-045

Out of stock

24

FORK,SELECTOR,3RD

13140-046

Out of stock

25

PIN SELECT FORK GUIDE

92043-016

Out of stock

26

WASHER LOCK 10MM

92031-001

Out of stock

27

CIRCLIP-TYPE-C,12MM

480J1200

Out of stock

28

WASHER,LOCK,20MM

92024-044

Out of stock

29

ENGINE SPROCKET 15T

13144-062

Out of stock

30

COLLAR,ENG SPROCKET

92027-152

Out of stock

31

RING-O

92055-035

Out of stock

32

BEARING,BL305 256217

92045-021

Out of stock

33

WASHER,PLAIN,25MM

92022-210

Out of stock

34

2ND GEAR,OUTPUT SHAF

13131-038

Out of stock

35

WASHER,TOOTHED,30.3X40X1.5

92024-043

Out of stock

36

CIRCLIP-TYPE-C,30MM

480J3000

Out of stock

37

TOP GEAR,OUTPUT SHAF

13129-1214

Out of stock

37

TOP GEAR,OUTPUT SHAF

13129-1214

Out of stock

38

3RD GEAR,OUTPUT SHAF

13133-031

Out of stock

39

WASHER,PLAIN,30MM

92022-209

Out of stock

40

BALL-STEEL,3/16

600A0600

Out of stock

41

4TH GEAR,OUTPUT SHAF

13135-020

Out of stock

42

LOW GER,OUTPUT SHAFT

13129-046

Out of stock

43

SHAFT,OUTPUT

13128-5006

Out of stock

43

SHAFT,OUTPUT

13128-5006

Out of stock

44

BUSHING,OUTPUT SHAFT

92028-123

Out of stock

45

PIN

92043-109

Out of stock

46

BEARING,BALL,5305NSH

92045-022

Out of stock

47

BUSHING,2ND GEAR

92028-117

Out of stock

48

BUSHING,TOP GEAR

92028-118

Out of stock

49

NUT,20MM

92015-1555

Out of stock
