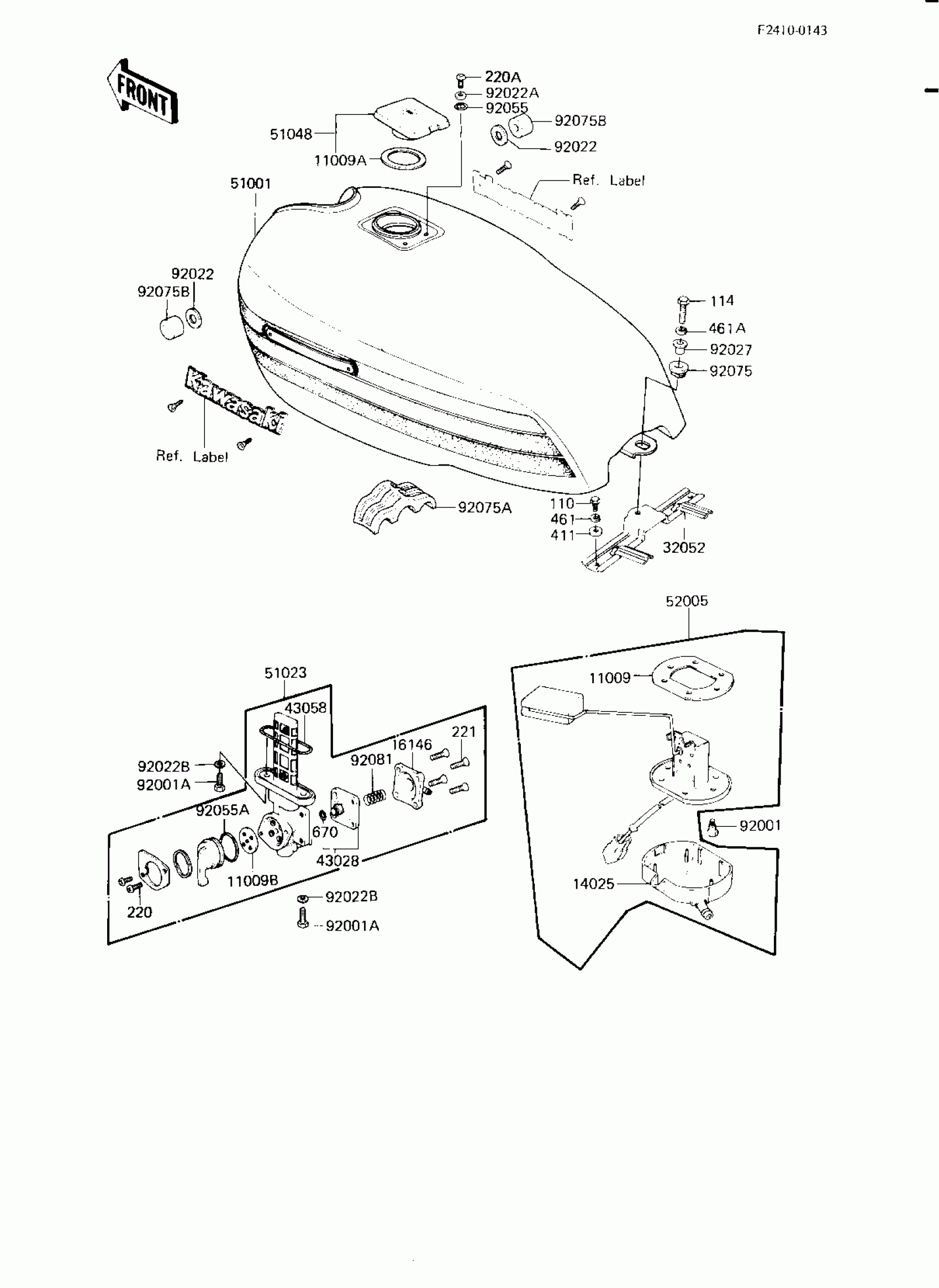

Kawasaki KZ750-L3 FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET,FUEL TANK CAP

11009-1051

$8.34

11009B

GASKET,TAP VALVE

11009-1194

$7.57

14025

COVER,FUEL GAUGE

14024-1434

$36.06

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

32052

BRACKET-TANK,RR

32052-1078

Unavailable

43028

DIAPHRAGM,TAP

43028-1015

$17.72

43058

RING,TAP FLANGED

51039-010

$5.77

51001

TANK-COMP-FUEL.EBONY

51001-5242-H8

$830.92

51023

TAP ASSY,FUEL

51023-1031

$134.37

51048

CAP-ASSY-TANK,FUEL

51048-1015

$162.26

52005

GAUGE,FUEL

52005-1028

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$5.53

92001

BOLT,FUEL GAUGE

92001-1069

$5.53

92001A

BOLT,6X20

92001-1091

$2.99

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92022A

WASHER,5.3X10X0.8

92022-1038

$2.76

92022B

WASHER-PLAIN

92022-183

$2.99

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92055

RING-O

92055-1023

$2.99

92055A

RING-O,TAP LEVER

92055-1027

$3.98

92075

DAMPER,FUEL TANK

92075-1116

Unavailable

92075A

DAMPER,FUEL TANK

92075-1245

$33.61

92075B

DAMPER,FUEL TANK

92075-125

$4.67

92081

SPRING,TAP DIAPHRAGM

92081-1171

$3.32

110

BOLT-UPSET,6X12

112G0612

Unavailable

114

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable

670

O RING,4MM

670B1504

$3.14
