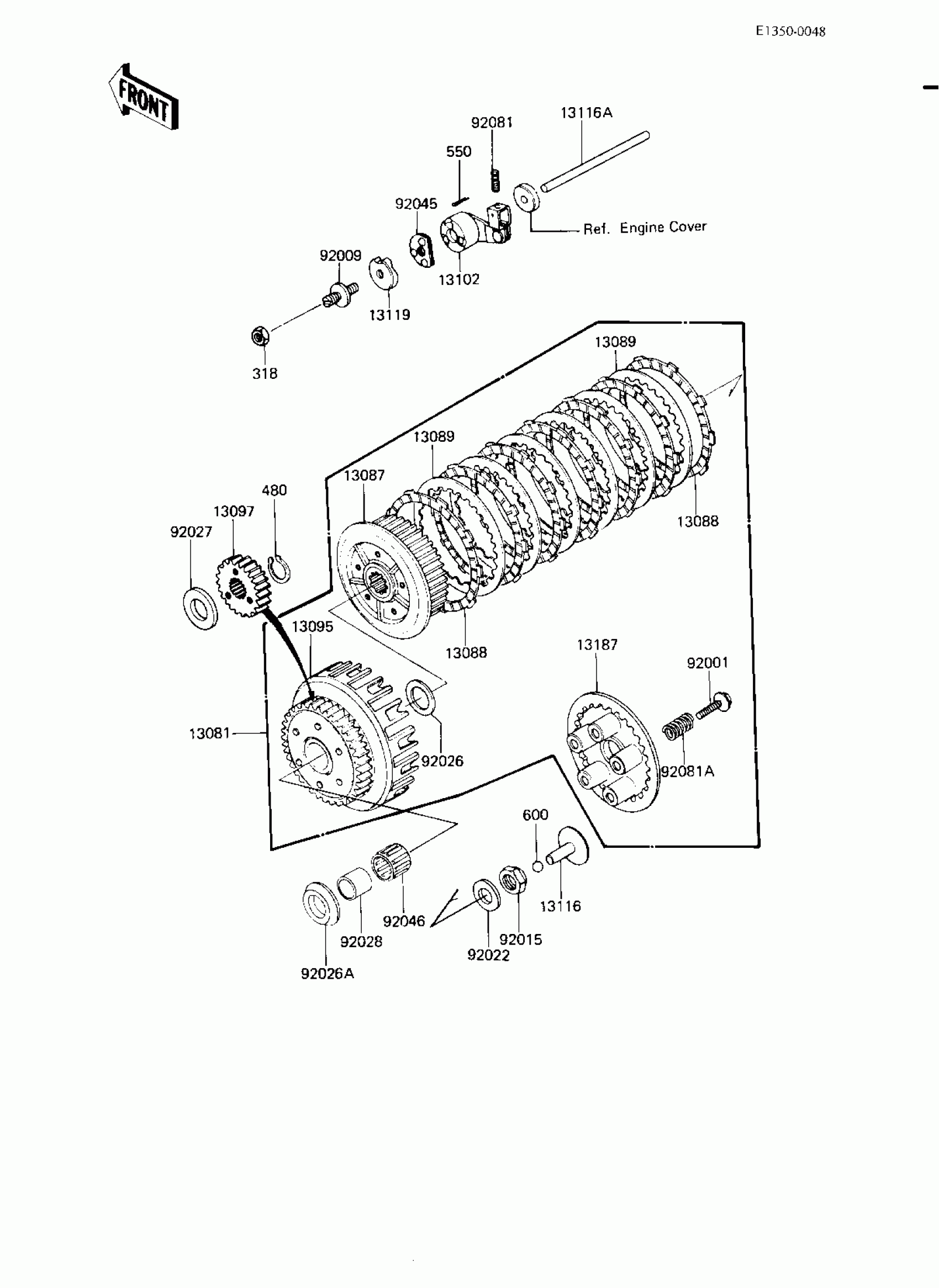

Kawasaki KZ750-L3 CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1034

Unavailable

13087

HUB-CLUTCH

13087-043

$165.36

13088

PLATE,CLUTCH FRICTION

13088-030

$21.73

13089

PLATE,CLUTCH STEEL

13089-022

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1033

Unavailable

13097

GEAR,SECONDARY SHAFT,29T

13121-037

Unavailable

13102

RELEASE,CLUTCH

13102-1008

Unavailable

13116

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

13116A

ROD,CLUTCH PUSH

13116-1007

Unavailable

13119

CAM-RELEASE,CLUTCH

13119-1003

$15.92

13187

PLATE,CLUTCH SPRING

13187-006

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92009

SCREW,8MM

92009-1009

Unavailable

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X2.3

92022-1116

$6.55

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER,THRUST,T=5.5

92026-116

$16.49

92027

COLLAR,23X46X4.5

92027-263

$5.59

92028

BUSHING,25X32X23.6

92028-178

$23.53

92045

BEARING,BALL,CLUTCH

92045-1001

$8.82

92046

BEARING-NEEDLE,KTV323723

92046-028

$19.92

92081

SPRING,CLUTCH RELEASE

92081-069

$5.74

92081A

SPRING,CLUTCH

92081-1176

$10.25

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

550

PIN-COTTER,1.6X15

550D1615

$1.80

600

BALL-STEEL,3/8"

600A1200

$1.14
