1983 Kawasaki KZ750-L3 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

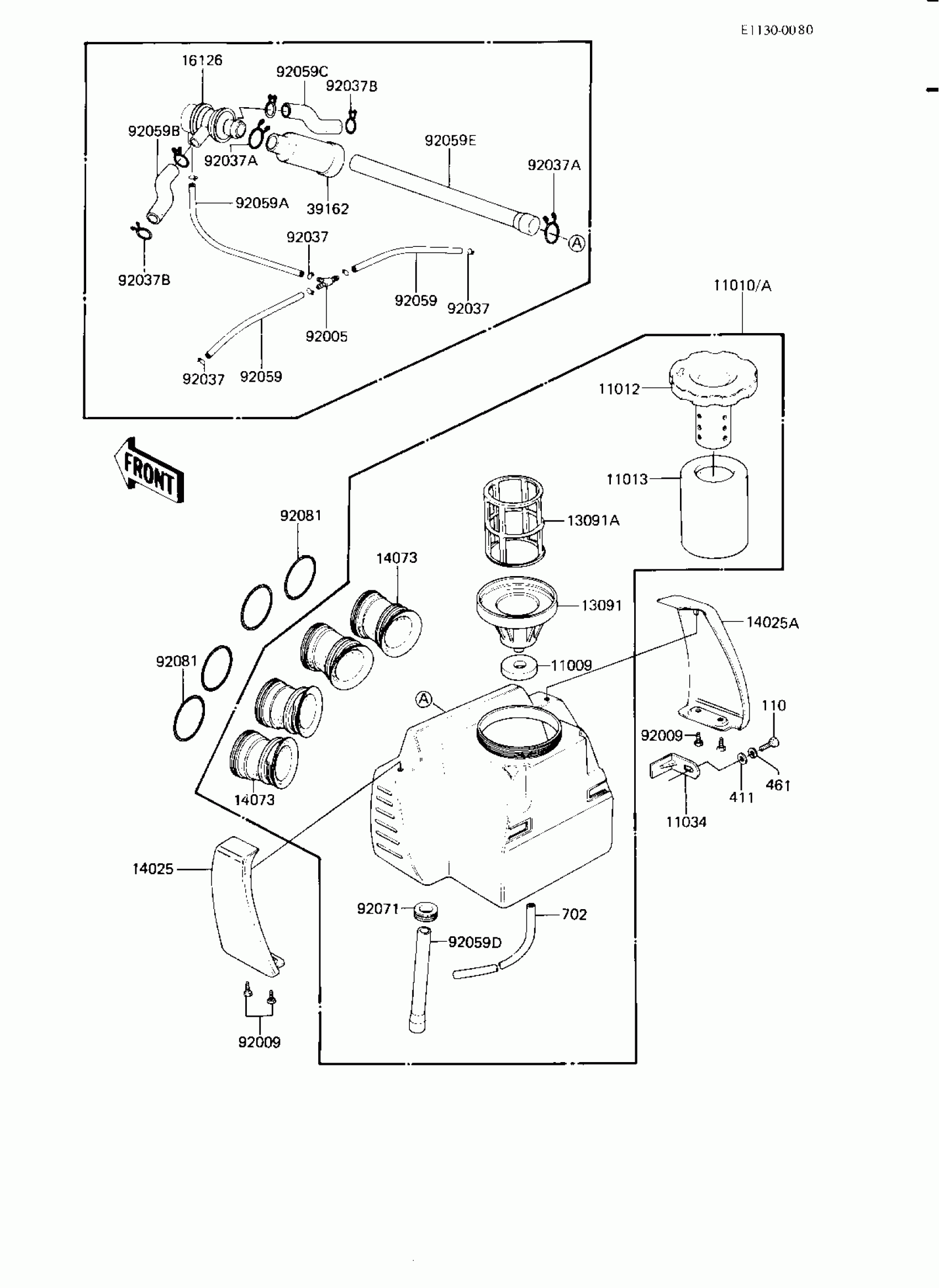

1983 Kawasaki KZ750-L3 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,HOLDER

11039-003

1
Out of stock

11010

FILTER-ASSY-AIR

11010-1128

1
Out of stock

11010A

FILTER-ASSY-AIR (Canada)

11010-1129

1
Out of stock

11012

CAP,AIR CLEANER

11012-069

1
Out of stock

11013

ELEMENT,AIR CLNR

11013-1060

1
Out of stock

11034

BRACKET,AIR CLEANER

32070-038

1
Out of stock

13091

HOLDER,INLET PIPE

11033-006

1
Out of stock

13091A

HOLDER,ELEMENT

13091-1147

1
Out of stock

14025

COVER,AIR FILTER,LH

14025-1437

1
Out of stock

14025A

COVER,AIR FILTER,RH

14025-1438

1
Out of stock

14073

INLET DUCT

14073-1032

1

$28.36

In stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

39162

SILENCER-INTAKE

39162-1003

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92009

SCREW,TAPPING,5X12

92009-1144

1
Out of stock

92037

CLAMP,TUBE

92037-072

1
Out of stock

92037A

CLAMP,TUBE

92037-1076

1
Out of stock

92037B

CLAMP,TUBE

92037-213

1
Out of stock

92059

TUBE,VACUUM,LONG

92059-1162

1
Out of stock

92059A

TUBE,4X9X290

92059-1043

1
Out of stock

92059B

TUBE

92059-1065

1
Out of stock

92059C

TUBE

92059-1066

1
Out of stock

92059D

TUBE,11X26X135

92059-1137

1
Out of stock

92059E

TUBE,14X20X290

92059-1138

1
Out of stock

92071

GROMMET

92071-1027

1
Out of stock

92081

SPRING,COIL,BLACK

92081-1457

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

702

TUBE-RUBBER,6X200

702A06200

1
Out of stock
