1983 Kawasaki KZ750-L3 Cylinder Head Diagram

← All diagrams

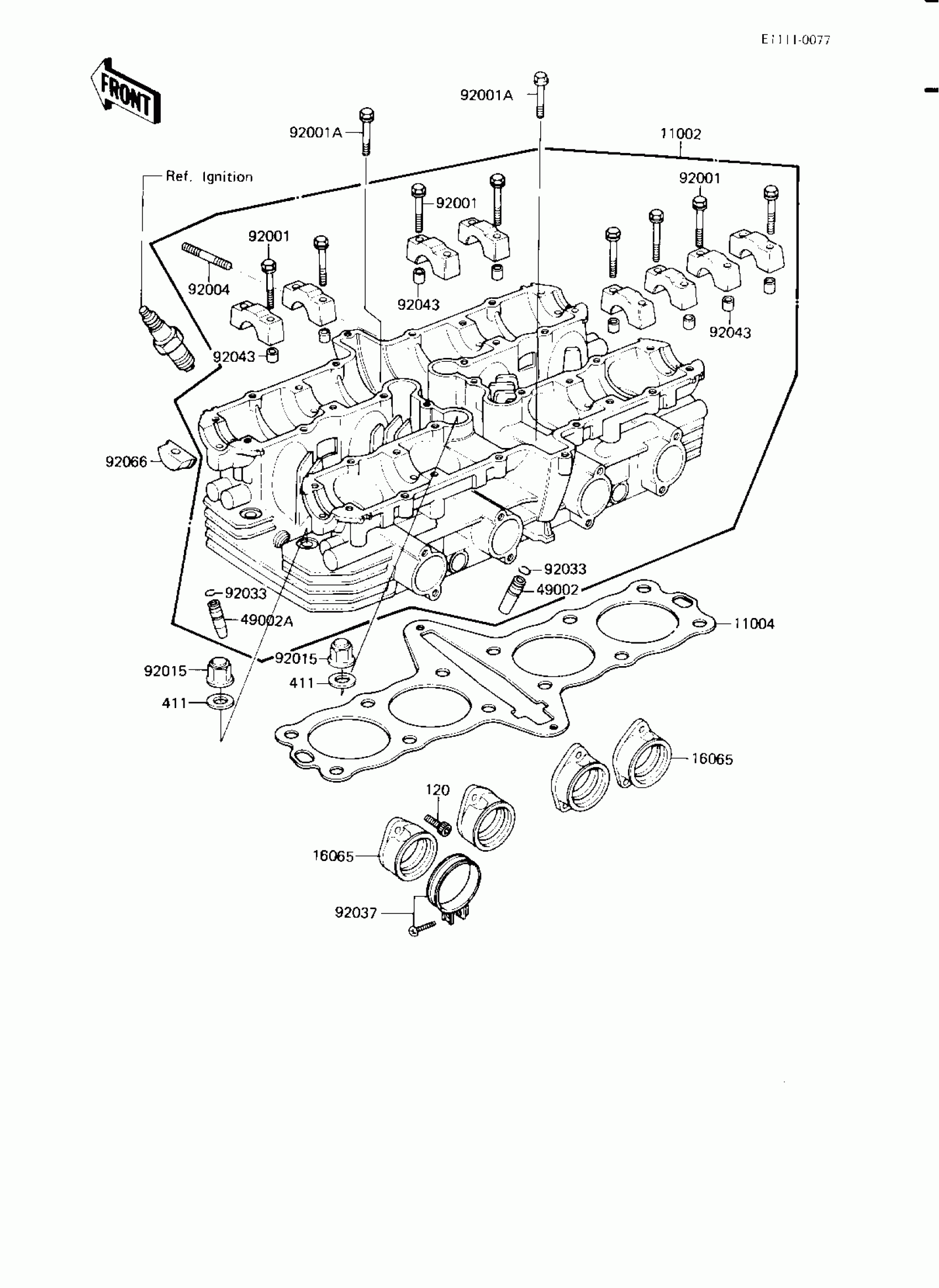

Find the part on the Cylinder Head diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ750-L3 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD ASSY CYLINDER

11002-5033

1
Out of stock

11004

GASKET-HEAD,CYLINDER

11004-1107

1
Out of stock

16069

HOLDER-CARBURETOR

16065-1132

1

$32.60

In stock

49002

GUIDE-VALVE,INTAKE

12013-009

1

$24.29

In stock

49002A

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92001A

BOLT,FLANGED,8X43

92001-1445

1
Out of stock

92004

STUD,6X27

92004-066

1
Out of stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92033

1

$0.53

In stock

92037

CLAMP-INLET PIPE

92037-061

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92066

1

$10.12

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock
