Find the part on the Crankshaft diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

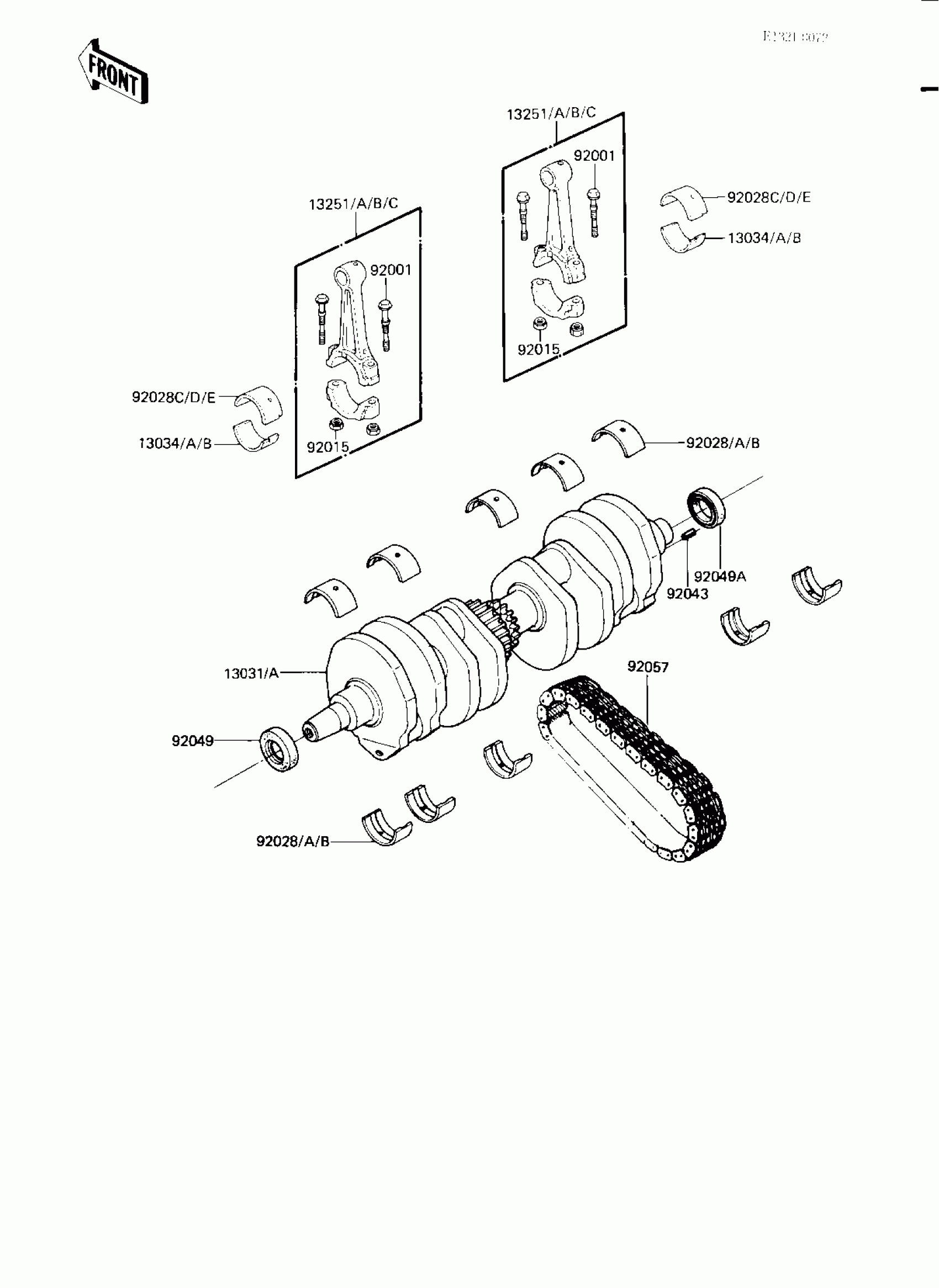

1983 Kawasaki KZ750-L3 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT ASSY

13031-1028

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-1314

1
Out of stock

13034

METAL,CONNECT ROD BRG

13034-050

1
Out of stock

13034A

METAL,CONNECT ROD BRG

13034-051

1
Out of stock

13034B

METAL,CONNECT ROD BRG

13034-052

1
Out of stock

13251

ROD-ASSY-CONNECTING,I

13251-1009-II

1
Out of stock

13251A

ROD-ASSY-CONNECTING,I

13251-1009-II

1
Out of stock

13251B

ROD-ASSY-CONNECTING,J

13251-1009-JJ

1
Out of stock

13251C

CONNECTING ROD ASSY,K

13251-1007-KK

1
Out of stock

92001

BOLT,CONNECTING ROD,8MM

92001-1887

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

BUSHING,CRANKSHAFT,BLUE

92028-1100

1
Out of stock

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1101

1
Out of stock

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1102

1
Out of stock

92028C

BUSHING,CONNECTING RO

92028-1156

1
Out of stock

92028D

BUSHING,CONNECTING RO

92028-1157

1
Out of stock

92028E

BUSHING,CONNECTING RO

92028-1158

1
Out of stock

92043

PIN-SPRING,4X8

555A0408

1
Out of stock

92049

OIL SEAL,HSCY22397

92050-080

1
Out of stock

92049A

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

92057

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

1
Out of stock
