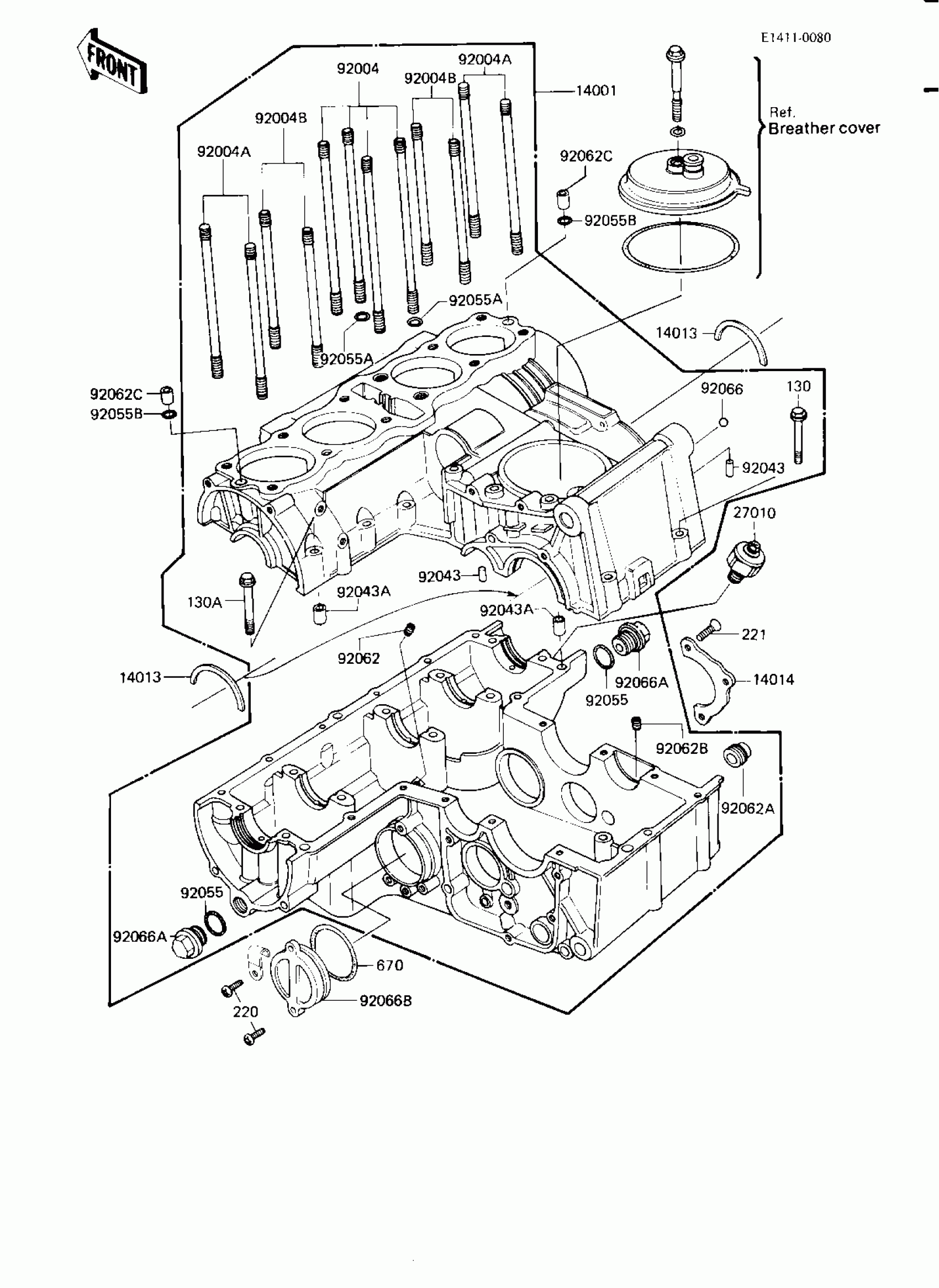

Kawasaki KZ750-L3 CRANKCASE Diagram

#

Description
Price

14001

SET-CRANKCASE

14001-5170

Unavailable

14013

RING-POSITION

14013-004

$7.76

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

$11.81

27010

SWITCH ASY,OIL PRSSUR

16144-006

Unavailable

92004

STUD,10X153

92004-062

$18.27

92004A

STUD,10X133

92004-1004

$15.71

92004B

STUD,10X116

92004-1007

Unavailable

92043

PIN,DOWEL,6X16

92042-016

$3.81

92043A

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,20X2

92055-1146

$6.55

92055A

RING-O,8.8X1.9

92055-099

$3.57

92055B

O RING,10MM

670D2010

$1.41

92062

NOZZLE,BLACK

92062-011

$8.37

92062A

NOZZLE

92062-014

$9.56

92062B

NOZZLE,SILVER

92062-015

$3.22

92062C

NOZZLE

92062-016

Unavailable

92066

PLUG,RUBBER BALL,6.7

92066-057

$4.58

92066A

PLUG,18X9

92066-066

$8.34

92066B

PLUG,SECONDARY SHAFT,52X19

92066-1019

$18.53

130

BOLT-FLANGED,6X40

130G0640

Unavailable

130A

BOLT-FLANGED,6X50

130G0650

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

221

SCREW-CSK-CROS,6X20

221B0620

$1.71

670

O RING,46MM

670B3046

$4.67
