1980 Kawasaki KZ750-E1 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

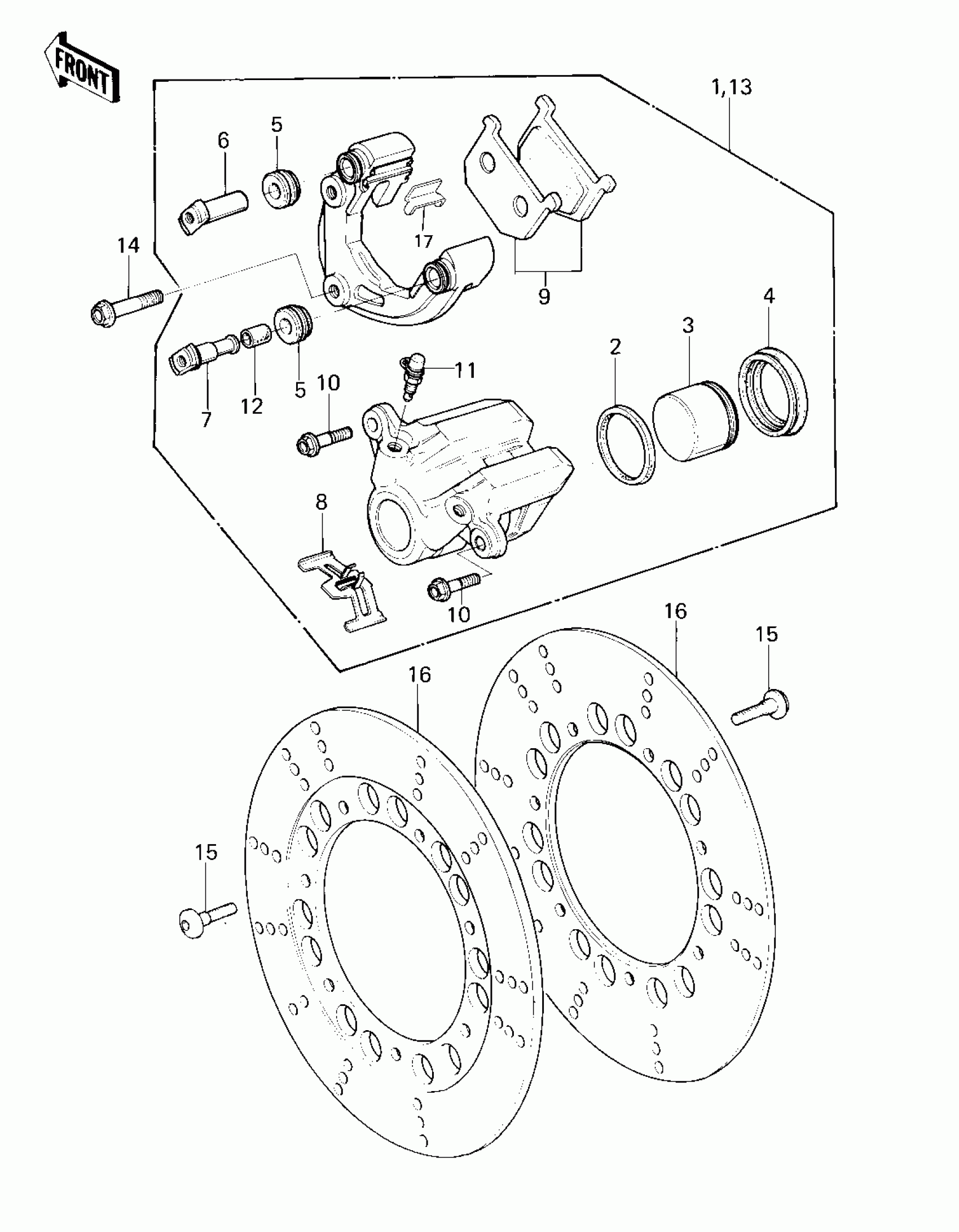

1980 Kawasaki KZ750-E1 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR L.H

43041-1036

1
Out of stock

2

PACKING,PISTON SEAL

43049-002

1
Out of stock

3

PISTON-COMP-BRAKE

43020-1096

1
Out of stock

4

BOOT,PISTON

49006-1043

1
Out of stock

5

BOOT,SHAFT

49006-1044

1
Out of stock

6

SHAFT-CALIPER

43045-1007

1
Out of stock

7

SHAFT-CALIPER

43045-1008

1
Out of stock

8

SPRING,PAD

92081-1229

1
Out of stock

9

PAD SET,FRONT BRAKE

43082-1007

1
Out of stock

10

BOLT,FLANGED,8X25,BLACK

92001-1510

1
Out of stock

11

BLEEDER SET

43085-001

1
Out of stock

12

BUSHING,7.8X11X15.7

92028-1090

1
Out of stock

13

CALIPER ASSY,FR R.H

43041-1037

1
Out of stock

14

BOLT,FLANGED,10X38

92001-1293

1
Out of stock

15

BOLT,DISC PLATE,8X30

92001-1951

1
Out of stock

16

DISC,FR,SILVER

41080-1130

1
Out of stock

17

GUIDE,PAD

13070-1026

1
Out of stock
