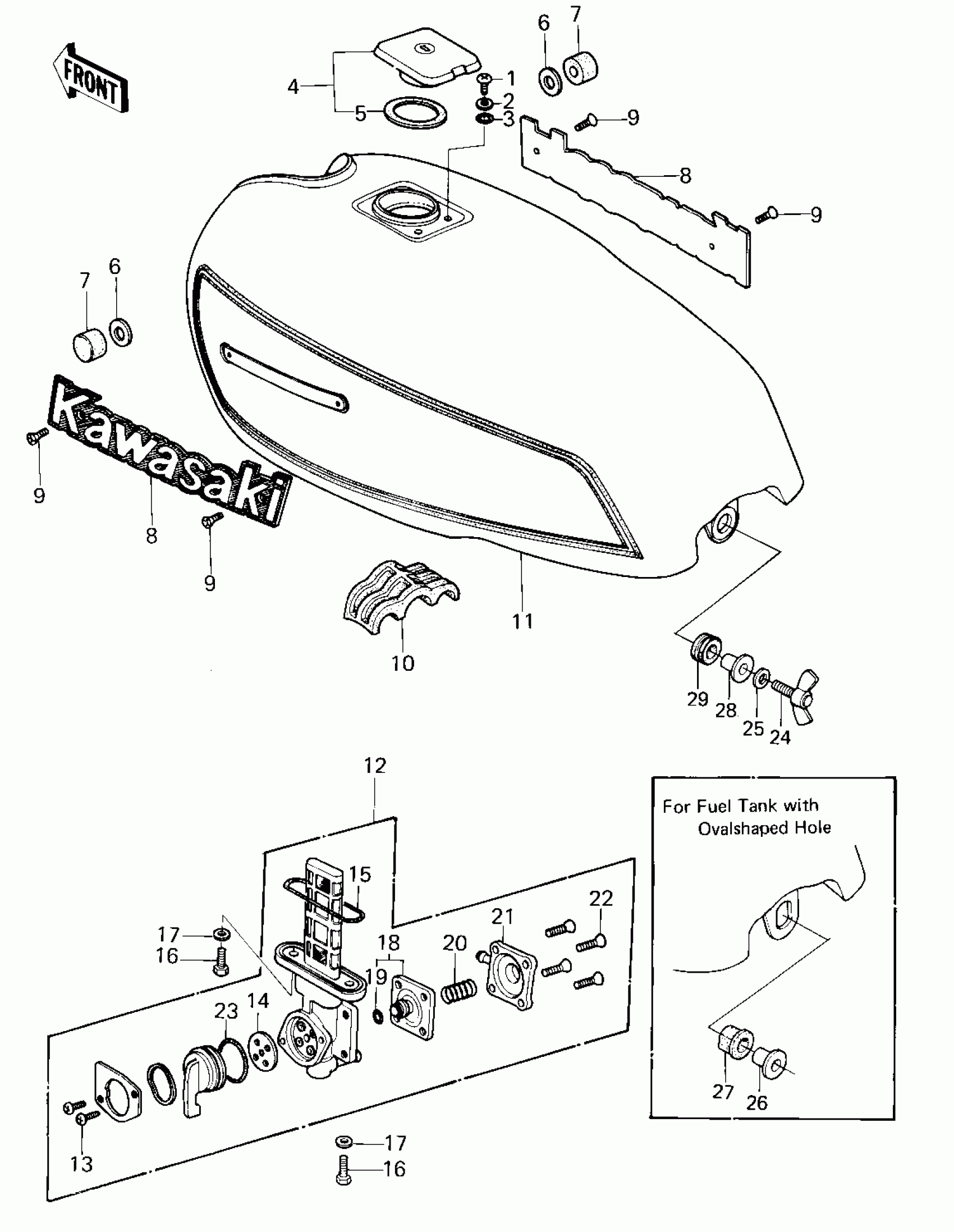

Kawasaki KZ750-E1 FUEL TANK ('80 KZY 50-E1) Diagram

#

Description
Price

1

SCREW PAN HEAD 5X10

220B0510

Unavailable

2

WASHER,5.3X10X0.8

92022-1038

$2.76

3

RING-O

92055-1023

$2.99

4

CAP ASSY TANK

51048-1018

Unavailable

5

GASKET,FUEL TANK CAP

11009-1051

$8.34

6

WASHER,10.5X26X2.3

92022-044

$2.99

7

DAMPER,FUEL TANK

92075-125

$4.67

8

EMBLEM,FUEL TANK

56014-1037

Unavailable

9

SCREW-CSK-CROS

221C0306

$0.67

10

DAMPER,FUEL TANK

92075-1245

$33.61

11

TANK-FUEL,L.DARK RED

51001-1049-7Y

$866.84

12

TAP ASSY,FUEL

51023-1029

Unavailable

13

SCREW-PAN-CROS,3X8

220B0308

$0.54

14

GASKET,TAP VALVE

11009-1194

$7.57

15

RING,TAP FLANGED

51039-010

$5.77

16

BOLT,6X20

92001-1091

$2.99

17

WASHER-PLAIN

92022-183

$2.99

18

DIAPHRAGM,TAP

43028-1015

$17.72

19

O RING,4MM

670B1504

$3.14

20

SPRING,TAP DIAPHRAGM

92081-1171

$3.32

21

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

22

SCREW-CSK-CROS,4X14

221B0414

Unavailable

23

RING-O,TAP LEVER

92055-1027

$3.98

24

BOLT,CARRIER FITTING

92001-1054

$21.98

25

WASHER SEAL PLATE

92022-101

$3.85

26

COLLAR,FUEL TANK FITT

92027-1134

$7.83

27

DAMPER,FUEL TANK

92075-1116

Unavailable

28

COLLAR,L=16.3

92027-1116

Unavailable

29

DAMPER

92075-1086

Unavailable
