1980 Kawasaki KZ750-E1 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

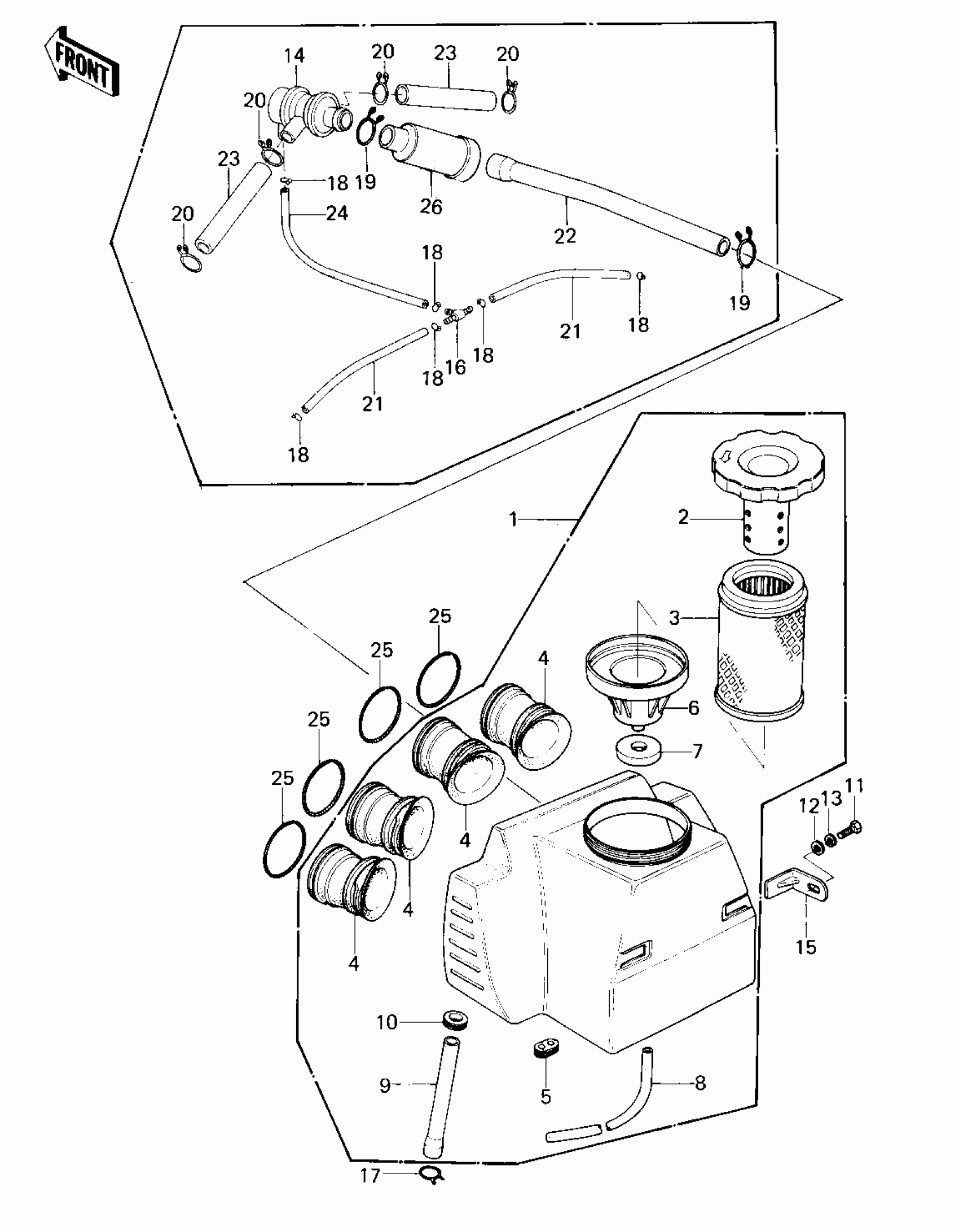

1980 Kawasaki KZ750-E1 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER-ASSY-AIR

11010-1074

1
Out of stock

2

CAP,AIR CLEANER

11012-069

1
Out of stock

3

ELEMENT,AIR CLNR

11013-1025

1
Out of stock

4

INLET DUCT

14073-1032

1
Out of stock

5

GROMMET,AIR CLEANER

92071-1025

1
Out of stock

6

HOLDER,INLET PIPE

11033-006

1
Out of stock

7

GASKET,HOLDER

11039-003

1
Out of stock

8

TUBE,VINYL,6X200

700Q06200

1
Out of stock

9

TUBE,11X26X135

92059-1137

1
Out of stock

10

GROMMET

92071-1027

1
Out of stock

11

BOLT, HEX HEAD, 6X12

110B0612

1
Out of stock

12

WASHER PLAIN 6MM

411B0600

1
Out of stock

13

WASHER SPRING 6MM

461F0600

1
Out of stock

14

VALVE,AIR SWITCH

16126-1005

1
Out of stock

15

BRACKET,AIR CLEANER

32070-038

1
Out of stock

16

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

17

CLAMP BREATHER PIPE

92037-028

1
Out of stock

18

CLAMP,TUBE

92037-072

1
Out of stock

19

CLAMP,TUBE

92037-1076

1
Out of stock

20

CLAMP,TUBE

92037-213

1
Out of stock

21

TUBE,VACUUM,LONG

92059-1162

1
Out of stock

22

TUBE,14X20X290

92059-1138

1
Out of stock

23

TUBE,14X20X100

92059-1042

1
Out of stock

24

TUBE,4X9X290

92059-1043

1
Out of stock

25

SPRING,COIL

92081-1177

1
Out of stock

26

SILENCER-INTAKE

39162-1003

1
Out of stock
