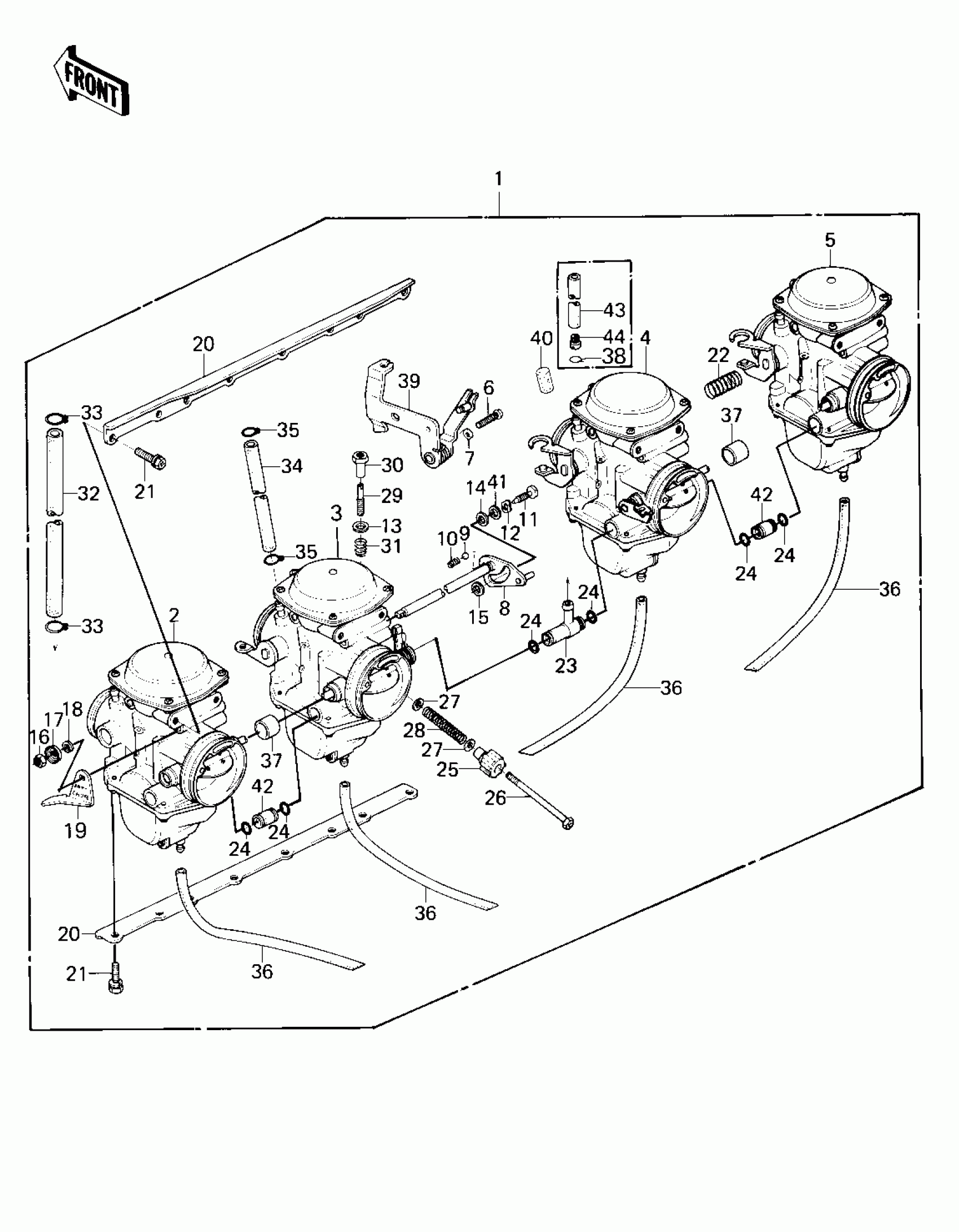

Kawasaki KZ750-E1 CARBURETOR ASSY ('80 KZY 50-E1) Diagram

#

Description
Price

1

CARBURETOR

16001-1200

$1,235.99

2

CARBURETOR,L.H,OUTER

16001-1309

$287.51

3

CARBURETOR,L.H,INSIDE

16001-1310

$301.06

4

CARBURETOR,R.H.INSIDE

16001-1311

$370.07

5

CARBURETOR,R.H.OUTSID

16001-1312

$376.09

6

SCREW-PAN-CROS

220B0520

$0.62

7

WASHER SPRING 5MM

461F0500

Unavailable

8

SHAFT,CHOKE LINK

16041-1017

$43.88

9

BALL,STEEL,3/16"

92140-1004

$1.32

10

SPRING

92081-1249

$7.44

11

SCREW,LINK SHAFT

92009-1096

$7.93

12

SPRING,WAVED WASHER

92081-1262

$3.32

13

WASHER

92022-1204

Unavailable

14

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

15

WASHER,6.4X9.4X0.8,PL

92022-1200

Unavailable

16

NUT-HEX

311B0500

$0.47

17

WASHER,LOCK,5M/M

92022-1201

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

LEVER,CHOKE

13168-1065

Unavailable

20

PLATE,CARBURETOR STAY

11034-1800

Unavailable

21

SCREW,6X16

92009-1129

Unavailable

22

SPRING

92081-1250

Unavailable

23

FITTING,FUEL TUBE

92005-1026

$48.10

24

RING-O

92055-1004

$3.29

25

HOLDER,ADJUST

13091-1078

Unavailable

26

BOLT,HEX HEAD,5X70

92001-1328

$9.63

27

WASHER

92022-1203

$4.80

28

SPRING

92081-1251

Unavailable

29

SCREW-THROTTLE STOP

16021-1027

Unavailable

30

NUT,5MM

92015-1118

Unavailable

31

SPRING

92081-1252

Unavailable

32

TUBE,FUEL,7.3X12.5X200

92059-1029

$31.15

33

CLAMP,FUEL TUBE

92037-1075

$3.03

34

TUBE,5.3X10.5X200

92059-1001

Unavailable

35

CLAMP,TUBE

92037-1682

$4.64

36

TUBE,3.5X6.5X180

92059-1140

$21.76

37

TUBE,DUST SEAL

11012-1130

Unavailable

39

BRACKET,THROTTLE CABL

11034-1799

Unavailable

40

CAP,RUBBER

11012-1129

Unavailable

41

WASHER,6.5X11X1.2,STL

92022-1207

$3.92

42

NIPPLE,FUEL

92005-1027

Unavailable
