1979 Kawasaki KZ750-B4 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

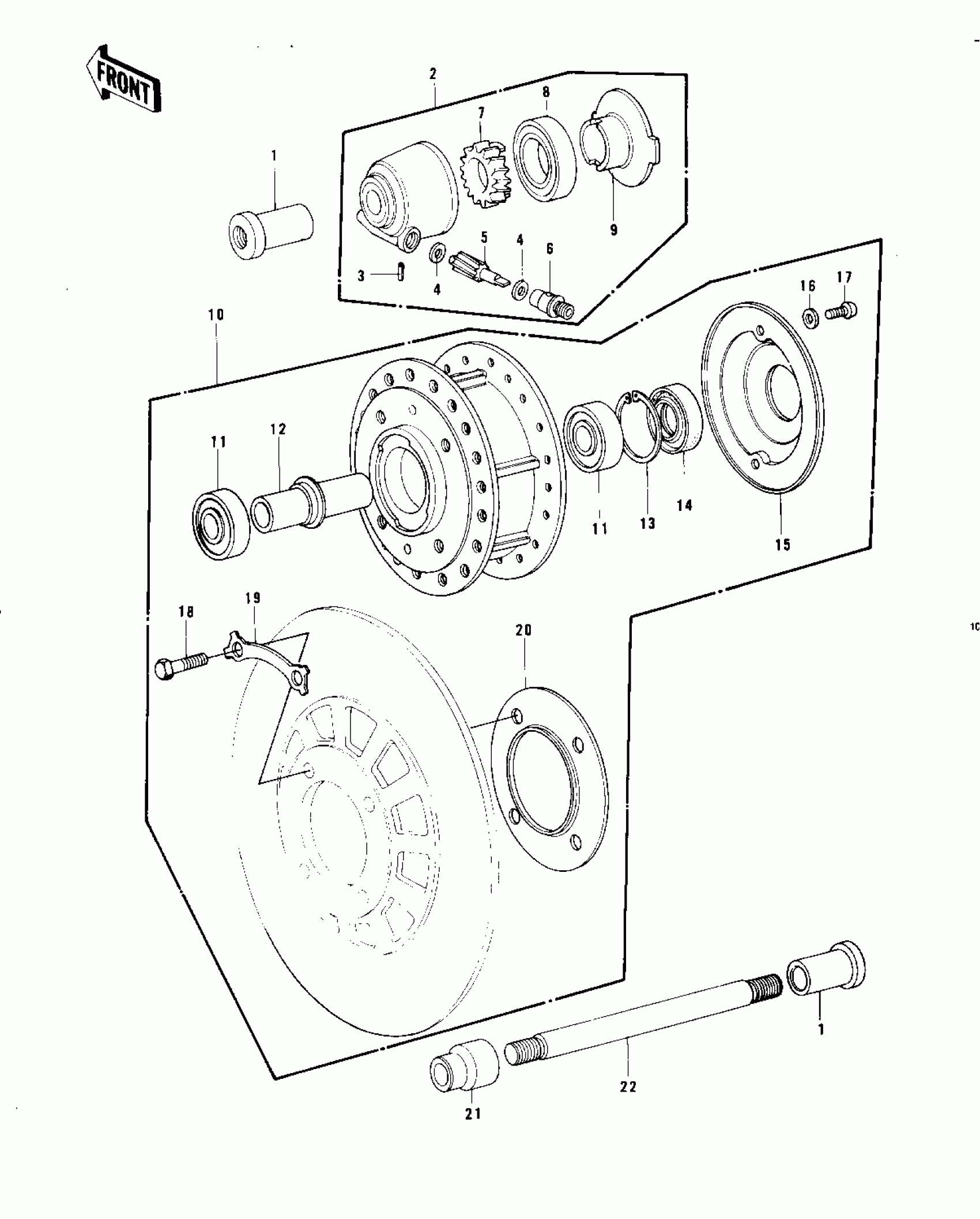

1979 Kawasaki KZ750-B4 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLLAR,FRONT AXLE

41069-033

1
Out of stock

2

GEAR BOX ASSY

41078-008

1
Out of stock

3

PIN,SPRING

41082-001

1
Out of stock

4

WASHER,5.1X9X0.4

41063-001

1
Out of stock

5

PINION,SPEEDOMETER

41060-017

1
Out of stock

6

BUSHING,SPEEDOMETER CABLE

41062-005

1
Out of stock

7

GEAR-METER SCREW,26T

41059-026

1
Out of stock

8

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

9

RECEIVER,GEAR

41064-013

1
Out of stock

10

DRUM-ASSY,FR BRK

41034-041

1
Out of stock

11

BEARING-BALL,#6203C3

601B6203

1
Out of stock

12

COLLAR,BRG

41039-028

1
Out of stock

13

RING-SNAP,40MM

92033-1040

1
Out of stock

14

OIL SEAL

654A254008

1
Out of stock

15

DUST COVER

41042-016

1
Out of stock

16

WASHER-PLAIN,5MM

411B0500

1
Out of stock

17

SCREW-PAN-CROS

220B0512

1
Out of stock

18

BOLT

92001-158

1
Out of stock

19

WASHER,LOCK

92088-023

1
Out of stock

20

DUST COVER

41042-014

1
Out of stock

21

COLLAR,FRONT AXLE

41069-032

1
Out of stock

22

AXLE,FRONT

41068-049

1
Out of stock
